Connector to Harness Index

STARTER CABLE

Connector or Terminal Ref Cavities Location Connects to Notes
T1 1   Right side of engine compartment Under-hood fuse/relay box
T4 2   Left side of engine compartment Starter motor
T5 8   Left side of engine compartment Auxiliary under-hood fuse/relay box
(+) 3   Battery Battery positive terminal
BATTERY GROUND CABLE

Connector or Terminal Ref Cavities Location Connects to Notes
(-) 5   Left side of engine compartment Battery negative terminal
G1 4   Left side of engine compartment Body ground, via battery ground cable
ENGINE GROUND CABLE

Connector or Terminal Ref Cavities Location Connects to Notes
T2 9   Right side of engine compartment Engine
G2 10   side of engine compartment Body ground, via engine ground cable
TRANSMISSION GROUND CABLE

Connector or Terminal Ref Cavities Location Connects to Notes
T3 7   Left side of engine compartment Transmission housing
G3 6   Left side of engine compartment Body ground, via transmission ground cable

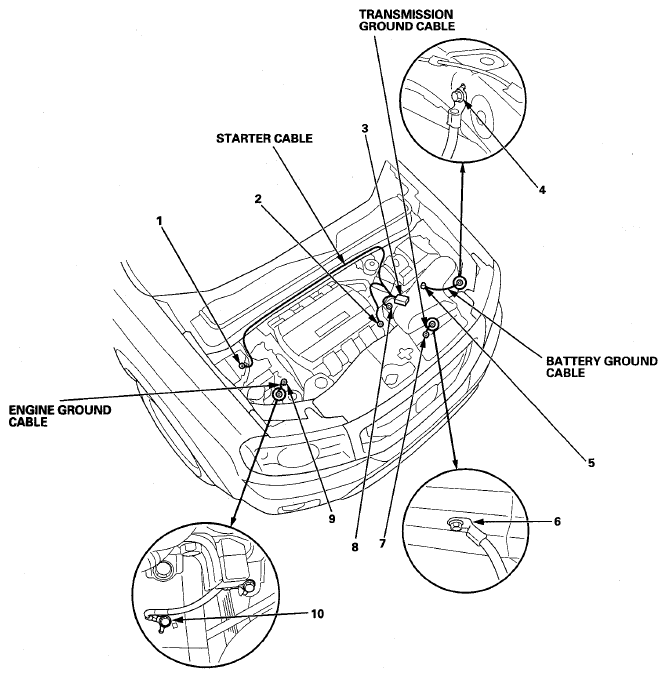

Fig 1: Identifying Starter Cable, Battery, Engine And Transmission Ground Cable Harnesses
G08090558Courtesy of AMERICAN HONDA MOTOR CO., INC.
ENGINE WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
A/C compressor clutch 45 1 Middle of engine compartment
A/T clutch pressure control solenoid valve A 26 2 Transmission housing
A/T clutch pressure control solenoid valve B 27 2 Transmission housing
A/T clutch pressure control solenoid valve C 22 2 Transmission housing
Alternator 46 4 Middle of engine compartment
ATF temperature sensor 28 2 Transmission housing
CKP sensor 39 3 Middle of engine compartment
CMP sensor 51 3 Middle of engine compartment
ECT sensor 1 36 2 Middle of engine compartment
EVAP canister purge valve 18 2 Middle of engine compartment
EGR valve/EGR valve position sensor 35 5 Middle of engine compartment
Front A/F sensor (Bank 2, Sensor 1) 38 6 Exhaust manifold (front bank)
Front rocker arm oil pressure switch 48 1 Middle of engine compartment
Front secondary HO2S (Bank 2, Sensor 2) 37 4 Exhaust manifold (front bank)
Input shaft (mainshaft) speed sensor 33 3 Transmission housing
IMT actuator 52 5 Middle of engine compartment
MAP sensor 20 3 Middle of engine compartment
MAF sensor/IAT sensor 23 5 Left side of engine compartment
No. 1 ignition coil 5 3 Middle of engine compartment
No. 2 ignition coil 8 3 Middle of engine compartment
No. 3 ignition coil 11 3 Middle of engine compartment
No. 4 ignition coil 44 3 Middle of engine compartment
No. 5 ignition coil 42 3 Middle of engine compartment
No. 6 ignition coil 40 3 Middle of engine compartment
No. 1 injector 2 2 Middle of engine compartment
No. 2 injector 9 2 Middle of engine compartment
No. 3 injector 12 2 Middle of engine compartment
No. 4 injector 49 2 Middle of engine compartment
No. 5 injector 43 2 Middle of engine compartment
No. 6 injector 41 2 Middle of engine compartment
Output shaft (countershaft) speed sensor 30 3 Transmission housing
PCM connector B 54 49 Right side of engine compartment
PCM connector C 55 49 Right side of engine compartment
Rear A/F sensor (Bank 1, Sensor 1) 13 6 Exhaust manifold (rear bank)
Rear rocker arm oil pressure switch 15 1 Middle of engine compartment
Rear secondary HO2S (Bank 1, Sensor 2) 14 4 Exhaust manifold (rear bank)
Rocker arm oil pressure switch 1 3 Middle of engine compartment
Rocker arm oil control solenoid A (Bank 1) 17 2 Middle of engine compartment
Rocker arm oil control solenoid A (Bank 2) 50 2 Middle of engine compartment
Rocker arm oil control solenoid B (Bank 1) 16 2 Middle of engine compartment

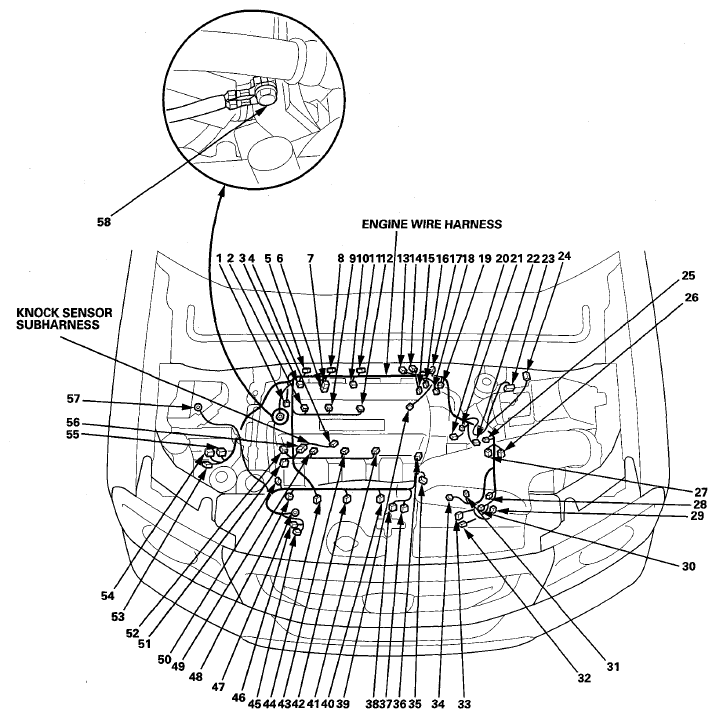

Fig 2: Identifying Engine Wire Harnesses (1 Of 2)
G08090559Courtesy of AMERICAN HONDA MOTOR CO., INC.
ENGINE WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
4th clutch transmission fluid pressure switch 25 1 Transmission housing
Starter 34 1 Middle of engine compartment
TP sensor/Throttle actuator 21 6 Middle of engine compartment
Transmission fluid pressure switch A (2nd clutch) 19 1 Transmission housing
Transmission fluid pressure switch B (3rd clutch) 32 1 Transmission housing
Transmission range switch 29 10 Transmission housing
C101 24 1 Left side of engine compartment Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C102 53 13 Right side of engine compartment Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C111 (Junction connector) 3 24 Middle of engine compartment
C112 (Junction connector) 6 24 Middle of engine compartment
C113 (Junction connector) 10 24 Middle of engine compartment
C114 (Junction connector) 7 12 Middle of engine compartment
C151 56 1 Middle of engine compartment Knock sensor subharness
C152 31 5 Transmission housing Shift solenoid wire harness (see Shift Solenoid Wire Harness  )
T101 57   Right side of engine compartment Under-hood fuse/relay box
T102 47   Right side of engine compartment Alternator
G101 58   Middle of engine compartment Body ground, via engine wire harness
KNOCK SENSOR SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Knock sensor 4 1 Middle of engine compartment
C151 56 1 Middle of engine compartment Engine wire harness

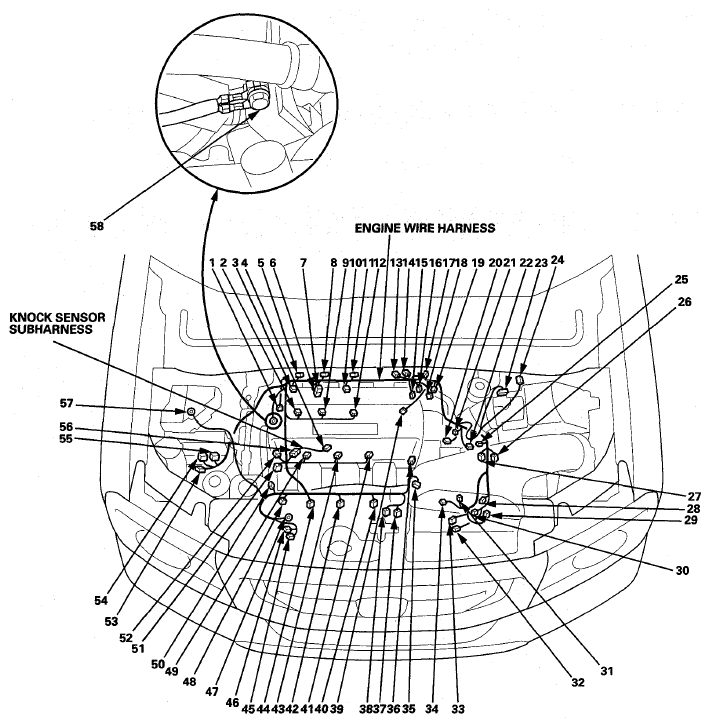

Fig 3: Identifying Engine Wire Harnesses (2 Of 2)
G08090560Courtesy of AMERICAN HONDA MOTOR CO., INC.
SHIFT SOLENOID WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Shift solenoid valve A 3 1 In the transmission
Shift solenoid valve B 1 1 In the transmission
Shift solenoid valve C 2 1 In the transmission
Shift solenoid valve D 4 1 In the transmission
C152 5 5 Transmission housing Engine wire harness (see Engine Wire Harness  )

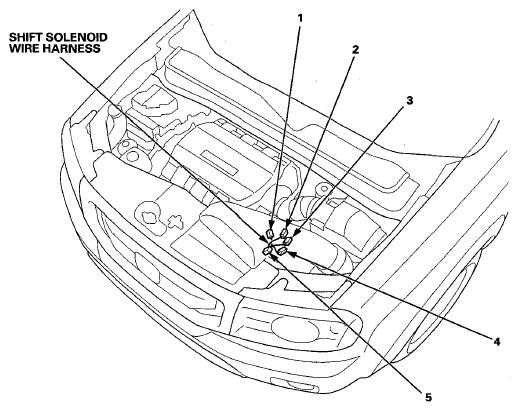

Fig 4: Identifying Shift Solenoid Wire Harnesses
G08090561Courtesy of AMERICAN HONDA MOTOR CO., INC.
RIGHT ENGINE COMPARTMENT WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
A/C condenser fan motor 23 2 Front of engine compartment
A/C pressure sensor 11 3 Right side of engine compartment
APP sensor 14 6 Under left side of dash
Brake pedal position switch 15 4 Under left side of dash
Cargo area accessory power socket relay 53 4 Under right side of dash
Engine mount control unit 48 16 Under right side of dash
Fog light relay 54 4 Under right side of dash
Front blower motor relay 55 4 Under right side of dash
Horn (High) 30 1 Front of engine compartment
Horn (Low) 43 1 Behind right side of front bumper
Optional connector (for fog light) 33 1 Front of engine compartment
PCM connector A 47 49 Right side of engine compartment
Power steering pressure (PSP) switch 12 2 Right side of engine compartment
Radiator fan motor 27 2 Front of engine compartment
Rear engine mount actuator 13 2 Right side of engine compartment
Right fog light 37 2 Behind right side of front bumper
Right front corner sensor 41 6 Behind right side of front bumper   (1)
Right front impact sensor 42 2 Behind right side of front bumper
Right front initiator 44 3 Behind right side of front bumper
Right front parking/turn signal light 39 3 Behind right headlight
Right front side marker light 40 2 Behind right headlight
Right front wheel speed sensor 36 2 Right side of engine compartment
Right headlight (high) 34 2 Behind right headlight
Right headlight (low) 38 2 Behind right headlight
Security hood switch 24 2 Front of engine compartment
Under-dash fuse/relay box connector E (see FUSE TO COMPONENTS INDEX ) 16 42 Under left side of dash
Under-dash fuse/relay box connector F (see FUSE TO COMPONENTS INDEX ) 17 34 Under left side of dash
Under-dash fuse/relay box connector G (see FUSE TO COMPONENTS INDEX ) 18 21 Under left side of dash
Under-hood fuse/relay box connector A (ELD) (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 2 3 Right side of engine compartment
Under-hood fuse/relay box connector C (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 4 2 Right side of engine compartment
(1) With parking and back-up sensor system

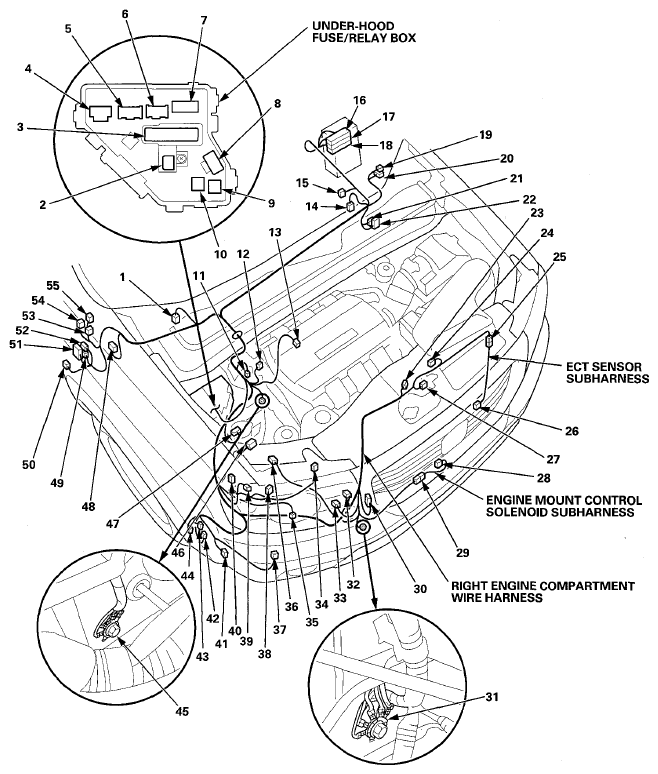

Fig 5: Identifying Right Engine Compartment Wire Harnesses
G08090562Courtesy of AMERICAN HONDA MOTOR CO., INC.
RIGHT ENGINE COMPARTMENT WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Under-hood fuse/relay box connector D (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 6 8 Right side of engine compartment
Under-hood fuse/relay box connector E (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 5 10 Right side of engine compartment
Under-hood fuse/relay box connector F (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 3 20 Right side of engine compartment
Under-hood fuse/relay box connector G (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 9 1 Right side of engine compartment
Under-hood fuse/relay box connector H (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 10 1 Right side of engine compartment
Under-hood fuse/relay box connector J (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 7 4 Right side of engine compartment
Under-hood fuse/relay box connector K (see CONNECTOR TO FUSE/RELAY BOX INDEX ) 8 2 Right side of engine compartment
Washer fluid level switch 32 2 Behind right side of front bumper   (1)
Windshield/rear window washer motor 35 2 Right side of engine compartment
C102 46 13 Right side of engine compartment Engine wire harness (see Engine Wire Harness  )
C201 20 23 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C202 19 5 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C301 25 2 Left side of engine compartment ECT sensor subharness
C302 29 2 Front of engine compartment Engine mount control solenoid subharness
C303 51 34 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  )
C304 52 4 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  )
C305 49 6 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  )
C306 50 23 Under right side of dash Floor wire harness (see Floor Wire Harness (Right branch)  )
C307 22 18 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  )
C308 21 3 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  )
C351 1 2 Under right side of dash A/C wire harness (see A/C Wire Harness  )
G201 31   Front of engine compartment Body ground, via right engine compartment wire harness
G202 45   Right side of engine compartment Body ground, via right engine compartment wire harness
(1) With washer fluid level switch
ECT SENSOR SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
ECT sensor 2 26 2 Left side of engine compartment
C301 25 2 Left side of engine compartment Right engine compartment wire harness
ENGINE MOUNT CONTROL SOLENOID SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Front engine mount actuator 28 2 Front of engine compartment
C302 29 2 Front of engine compartment Right engine compartment wire harness

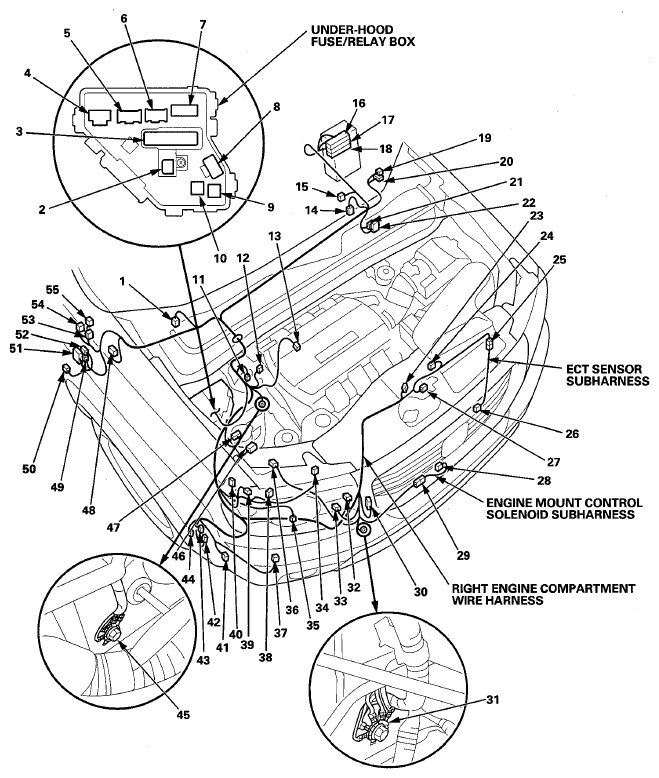

Fig 6: Identifying Right Engine Compartment Wire Harnesses, ECT Sensor And Engine Mount Control Solenoid Subharness
G08090563Courtesy of AMERICAN HONDA MOTOR CO., INC.

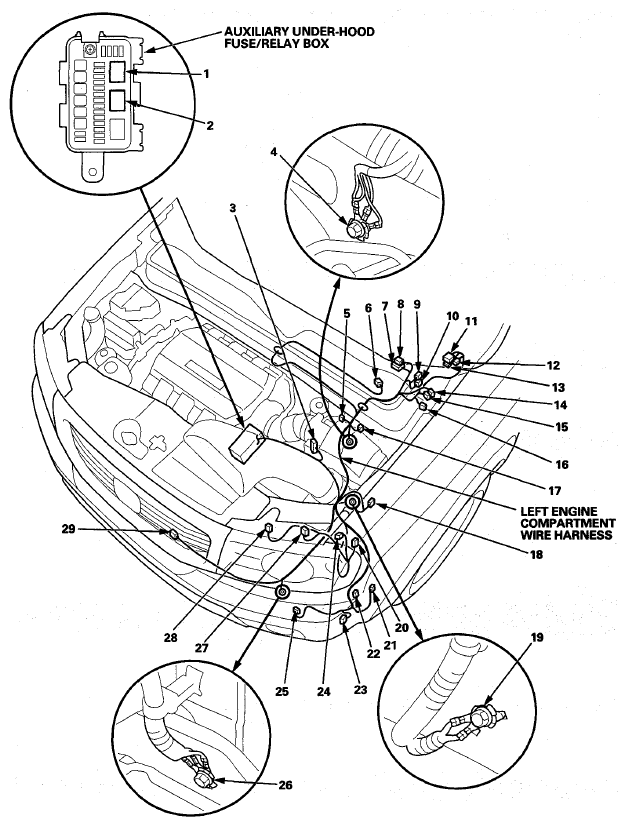

LEFT ENGINE COMPARTMENT WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Brake fluid level switch 5 2 Left side of engine compartment
Hatch glass relay 9 4 Under left side of dash
Left fog light 25 2 Behind left side of front bumper
Left front comer sensor 23 6 Behind left side of front bumper   (1)
Left front impact sensor 22 2 Behind left side of front bumper
Left front initiator 21 3 Behind left side of front bumper
Left front parking/turn signal light 24 3 Behind left headlight
Left front side marker light 20 2 Behind left headlight
Left front wheel speed sensor 18 2 Left side of engine compartment
Left headlight (high) 28 2 Behind left headlight
Left headlight (low) 27 2 Behind left headlight
Outside air temperature sensor 29 2 Front of engine compartment
Rear window wiper motor relay 1 (forward) 1 5 In the auxiliary under-hood fuse/relay box
Rear window wiper motor relay 2 (backward) 2 5 In the auxiliary under-hood fuse/relay box
Starter cut relay 2 10 4 Under left side of dash
VSA modulator-control unit 3 36 Left side of engine compartment
Windshield wiper motor 6 5 Left side of engine compartment
C101 17 1 Left side of engine compartment Engine wire harness (see Engine Wire Harness  )
C201 7 23 Under left side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C202 8 5 Under left side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C203 11 24 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C204 12 4 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C205 13 8 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C206 16 18 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  )
C207 15 2 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  )
C208 14 1 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  ) (2)
G301 26   Left side of engine compartment Body ground, via left engine compartment wire harness
G302 19   Left side of engine compartment Body ground, via left engine compartment wire harness
G303 4   Left side of engine compartment Body ground, via left engine compartment wire harness
(1) With parking and back-up sensor system
(2) With power tailgate
Fig 7: Identifying Left Engine Compartment Wire Harnesses
G08090564Courtesy of AMERICAN HONDA MOTOR CO., INC.
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)

Connector or Terminal Ref Cavities Location Connects to Notes
ACC cut relay 27 5 Under left side of dash
Automatic lighting control unit 29 14 Under left side of dash   (2)
Auxiliary under-dash fuse holder 37 2 Under left side of dash
Cable reel 19 20 In steering column Cable reel subharness via cable reel
Cable reel 21 4 In steering column Driver's airbag inflator via cable reel
Combination light switch 32 12 In steering column
Front accessory power socket relay 23 4 Under left side of dash
Gauge control module 14 32 Under left side of dash
Hazard warning switch 22 5 Under left side of dash
IG2 cut relay 28 5 Under left side of dash
Ignition switch 30 5 In steering column
Immobilizer-keyless control unit 25 7 In steering column
Left tweeter 8 2 Under left side of dash
Optional connector (for left running board light) 48 2 Under left side of dash
Optional connector (for remote engine start (1)) 10 2 Under left side of dash
Optional connector (for remote engine start (2)) 10 2 Under left side of dash
Parking and back-up sensor control unit 31 24 Under left side of dash   (1)
Parking and back-up sensor switch 1 5 Under left side of dash   (1)
Steering angle sensor 33 5 In steering column
Steering lock assembly (ignition key switch/ignition key light/key interlock solenoid) 26 6 In steering column
TPMS control unit 13 20 Under left side of dash
Trailer electric brake connector 47 4 Under left side of dash
Under-dash fuse/relay box connector C (see FUSE TO COMPONENTS INDEX ) 36 4 Under left side of dash
Under-dash fuse/relay box connector D (see FUSE TO COMPONENTS INDEX ) 34 2 Under left side of dash
Under-dash fuse/relay box connector J (see FUSE TO COMPONENTS INDEX ) 11 4 Under left side of dash
Under-dash fuse/relay box connector K (see FUSE TO COMPONENTS INDEX ) 12 8 Under left side of dash
Under-dash fuse/relay box connector M (see FUSE TO COMPONENTS INDEX ) 9 10 Under left side of dash
Under-dash fuse/relay box connector N (see FUSE TO COMPONENTS INDEX ) 6 14 Under left side of dash
Under-dash fuse/relay box connector P (see FUSE TO COMPONENTS INDEX ) 7 10 Under left side of dash
Under-dash fuse/relay box connector Q (see FUSE TO COMPONENTS INDEX ) 5 16 Under left side of dash
Under-dash fuse/relay box connector R (see FUSE TO COMPONENTS INDEX ) 3 20 Under left side of dash
Under-dash fuse/relay box connector S (see FUSE TO COMPONENTS INDEX ) 42 20 Under left side of dash
Under-dash fuse/relay box connector T (see FUSE TO COMPONENTS INDEX ) 35 34 Under left side of dash
VSA OFF switch 2 5 Under left side of dash
VTM-4 relay 20 5 Under left side of dash   4WD
Wiper/washer switch 24 8 In steering column
(1) With parking and back-up sensor system
(2) With automatic lighting system
Fig 8: Identifying Dashboard Wire Harnesses (1 Of 2)
G08090565Courtesy of AMERICAN HONDA MOTOR CO., INC.

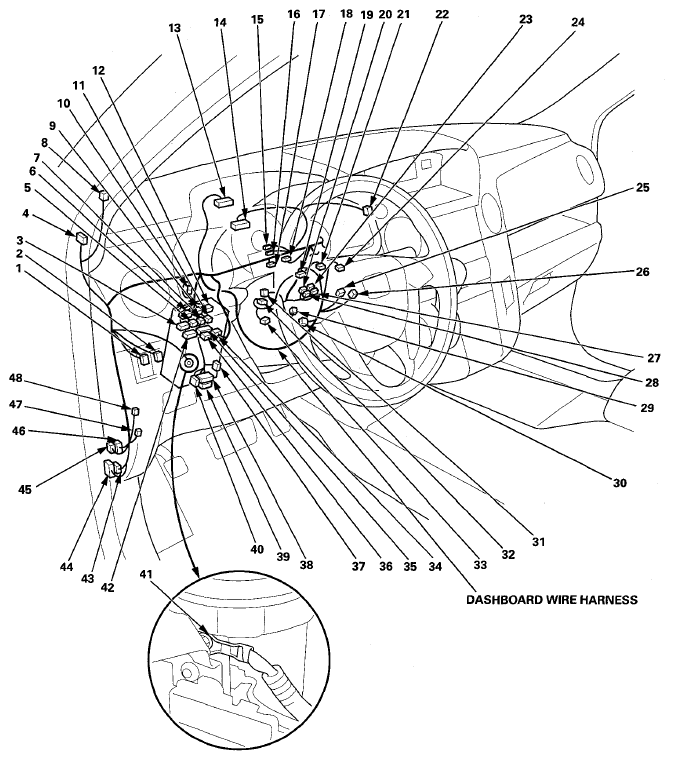

DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)

Connector or Terminal Ref Cavities Location Connects to Notes
C203 39 24 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C204 40 4 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C205 38 8 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C401 43 18 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  )
C402 44 34 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  ) (6)
C402 44 20 Under left side of dash Floor wire harness (see Floor Wire Harness (Left branch)  ) (5)
C421 (F-CAN junction connector) 17 22 Under left side of dash
C422 (Junction connector) 18 22 Under left side of dash
C701 4 20 Under left side of dash Roof wire harness (see Roof Wire Harness (Without moonroof)  ) (3)
C701 4 28 Under left side of dash Roof wire harness (see Roof Wire Harness (With moonroof)  ) (4)

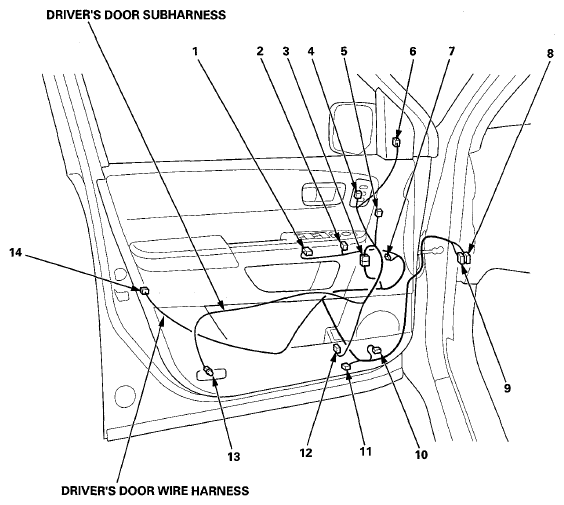

C751 46 24 Under left side of dash Driver's door wire harness (see Driver's Door Wire Harness (With DPMS)  ) (1)
C751 46 16 Under left side of dash Driver's door wire harness (see Driver's Door Wire Harness (Without DPMS)  ) (2)
C752 45 8 Under left side of dash Driver's door wire harness (see Driver's Door Wire Harness (With DPMS)  ) (1)
C752 45 8 Under left side of dash Driver's door wire harness (see Driver's Door Wire Harness (Without DPMS)  ) (2)
S1 (Thermal cap) 16   Under left side of dash
S2 (Thermal cap) 15   Under left side of dash
G401 41   Under left side of dash Body ground, via dashboard wire harness
(1) With DPMS
(2) Without DPMS
(3) Without moonroof
(4) With moonroof
(5) 2WD without DPMS
(6) 2WD with DPMS or 4WD
Fig 9: Identifying Dashboard Wire Harnesses (2 Of 2)
G08090566Courtesy of AMERICAN HONDA MOTOR CO., INC.

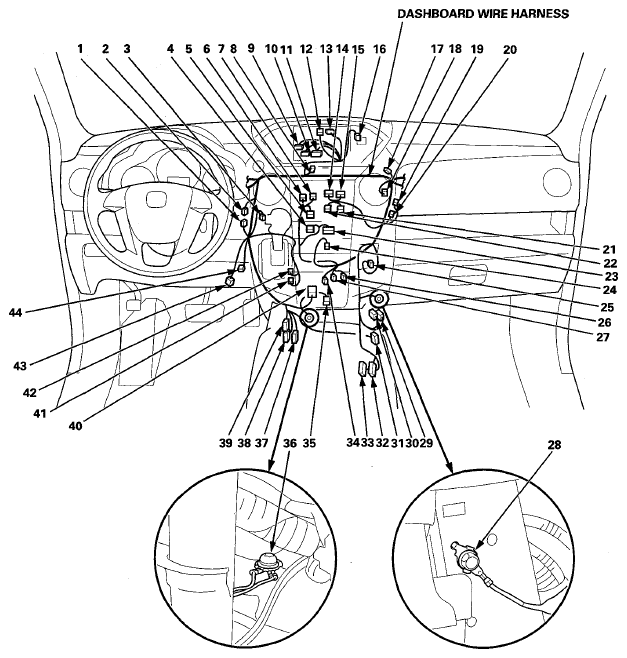

DASHBOARD WIRE HARNESS (VIEW OF MIDDLE SIDE)

Connector or Terminal Ref Cavities Location Connects to Notes
A/T gear position indicator panel light/park-pin switch/D3 switch 41 6 Middle of dash
A/T shift lock solenoid 42 2 Middle of dash
AC inverter unit 31 14 Middle of dash   (1)
Active noise cancellation unit 33 20 Middle of dash   (3)
Ambient light (pocket) 24 2 Middle of dash   (2)
Audio display-USB adapter control unit connector A 9 32 Middle of dash   (8)
Audio switch panel 35 12 Middle of dash   (13)
Audio unit connector A 14 24 Middle of dash   (2)
Audio unit connector C 21 14 Middle of dash   (2)
Audio unit connector D 15 20 Middle of dash   (2)
Audio unit connector E 5 16 Middle of dash   (2)
Audio unit connector F 7 28 Middle of dash   (3)
Audio-HVAC display unit 10 16 Middle of dash   (9)
Audio-HVAC display unit 10 12 Middle of dash   (10)
Audio-Navigation unit connector A 14 24 Middle of dash   (3)
Audio-Navigation unit connector B 22 28 Middle of dash   (3)
Audio-Navigation unit connector C 5 14 Middle of dash   (3)
Audio-Navigation unit connector D 15 24 Middle of dash   (3)
Audio-Navigation unit connector E 21 20 Middle of dash   (3)
Audio-Navigation unit connector F 7 16 Middle of dash   (14)
Audio-Navigation unit connector H 6 8 Middle of dash   (3)
Automatic lighting/sunlight sensor 12 5 Middle of dash   (11)
Climate control unit connector A 23 36 Middle of dash   (5)
Climate control unit connector B 4 12 Middle of dash   (5)
Data link connector 43 16 Middle of dash
Front accessory power socket 25 2 Middle of dash
Front center speaker 13 2 Middle of dash   (4)
HandsFreeLink control unit 32 32 Middle of dash   (7)
Humidity/in-car temperature sensor 44 4 Middle of dash   (5)
HVAC control unit connector A 23 24 Middle of dash   (6)
HVAC control unit connector B 4 16 Middle of dash   (6)
Interface dial 27 5 Middle of dash   (3)
Navigation display unit 11 32 Middle of dash   (3)
Navigation switch panel 26 3 Middle of dash   (3)
Optional connector (for remote engine start) 1 4 Middle of dash
Passenger's airbag cutoff indicator 16 4 Middle of dash
SRS unit connector A 40 39 Middle of dash
Sunlight sensor 12 5 Middle of dash   (12)
VTM-4 LOCK switch 3 5 Middle of dash   4WD
Yaw rate-acceleration sensor 35 5 Middle of dash
(1) With AC power outlet
(2) Without navigation
(3) With navigation
(4) With rear entertainment
(5) With climate control
(6) Without climate control
(7) With HandsFreeLink
(8) Without navigation, with USB adapter
(9) Without navigation and USB adapter
(10) Without navigation and USB adapter, with climate control
(11) With automatic lighting system
(12) Without automatic lighting system
(13) Without navigation, with rear entertainment
(14) With navigation and rear entertainment
Fig 10: Identifying Dashboard Wire Harnesses (1 Of 2)
G08090567Courtesy of AMERICAN HONDA MOTOR CO., INC.

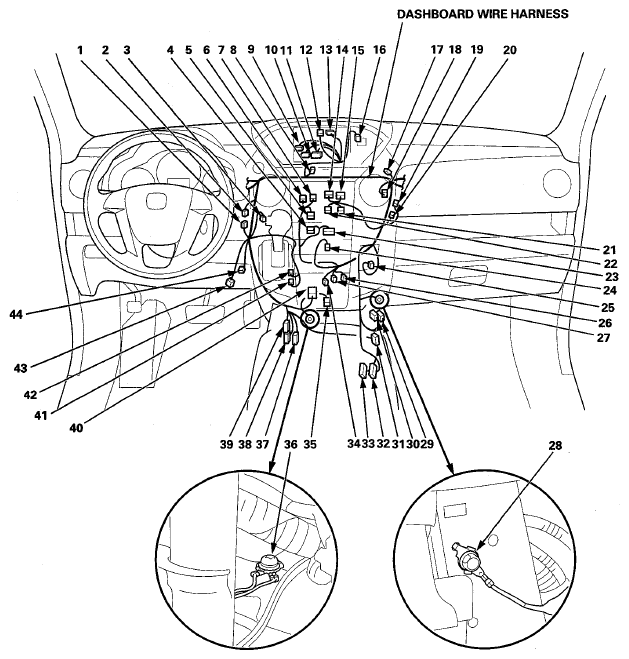

DASHBOARD WIRE HARNESS (VIEW OF MIDDLE SIDE)

Connector or Terminal Ref Cavities Location Connects to Notes
C403 30 8 Middle of dash Floor wire harness (see Floor Wire Harness (Right branch)  )
C423 (Junction connector) 2 12 Middle of dash   (3)
C424 (B-CAN junction connector) 18 22 Middle of dash
C425 (GA-NET junction connector) 20 12 Middle of dash   (4)
C426 (GA-NET junction connector) 19 20 Middle of dash   (1)
C451 38 18 Middle of dash Rear A/C wire harness (see Rear A/C Wire Harness  )
C452 39 20 Middle of dash Rear A/C wire harness (see Rear A/C Wire Harness  ) (2)
C454 37 14 Middle of dash Rear A/C wire harness (see Rear A/C Wire Harness  )
C461 29 24 Middle of dash A/C wire harness (see A/C Wire Harness  )
S3 (Thermal cap) 17   Middle of dash
S4 (Thermal cap) 8   Middle of dash
G402 28   Middle of dash Body ground, via dashboard wire harness
G405 36   Middle of dash Body ground, via dashboard wire harness
(1) With navigation
(2) With rear entertainment
(3) With navigation, without rear entertainment or without navigation
(4) With navigation or without navigation, with USB adapter
Fig 11: Identifying Dashboard Wire Harnesses (2 Of 2)
G08090568Courtesy of AMERICAN HONDA MOTOR CO., INC.

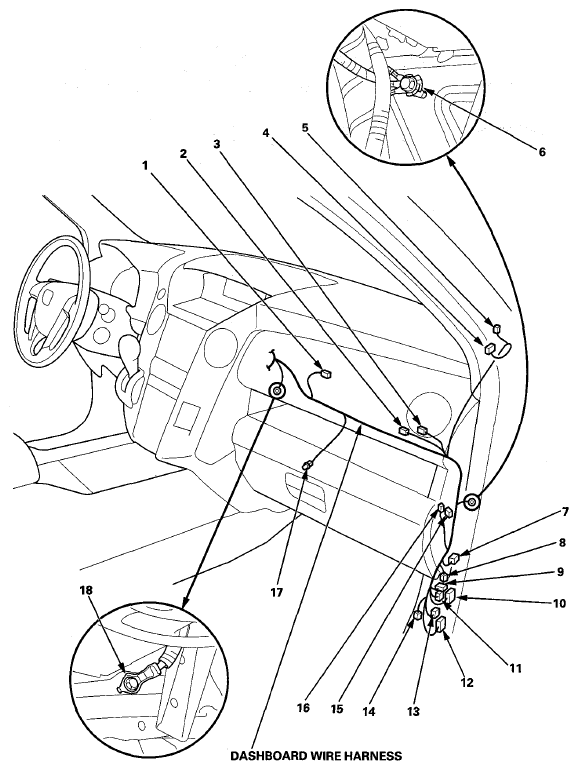

DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE)

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's airbag inflator 1 4 Under right side of dash
Glove box light 17 2 Glove box
Navigation service check connector 14 2 Under right side of dash   (1)
Optional connector (for right running board light) 8 2 Under right side of dash
Right tweeter 5 2 Under right side of dash
Stereo amplifier connector A 15 24 Under right side of dash   (1)
Stereo amplifier connector B 16 28 Under right side of dash   (1)
C303 10 34 Under right side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C304 9 4 Under right side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C305 11 6 Under right side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C404 12 12 Under right side of dash Floor wire harness (see Floor Wire Harness (Right branch)  ) (3)
C404 12 28 Under right side of dash Floor wire harness (see Floor Wire Harness (Right branch)  ) (2)
C404 12 2 Under right side of dash Floor wire harness (see Floor Wire Harness (Right branch)  ) (5)
C405 13 4 Under right side of dash Floor wire harness (see Floor Wire Harness (Right branch)  ) (3)
C406 (Junction connector) 2 12 Under right side of dash
C407 (Junction connector) 3 12 Under right side of dash
C711 4 24 Under right side of dash RES wire harness (see RES Wire Harness (With rear entertainment)  ) (4)
C761 7 18 Under right side of dash Front passenger's door wire harness (see Front Passenger's Door Wire Harness  )
G403 18   Middle of dash Body ground, via dashboard wire harness
G404 6   Under right side of dash Body ground, via dashboard wire harness
(1) With navigation
(2) With XM receiver
(3) Without XM receiver
(4) With rear entertainment
(5) Without XM receiver, rearview camera, and electrical compass
Fig 12: Identifying Dashboard Wire Harnesses (View Of Passenger's Side)
G08090569Courtesy of AMERICAN HONDA MOTOR CO., INC.

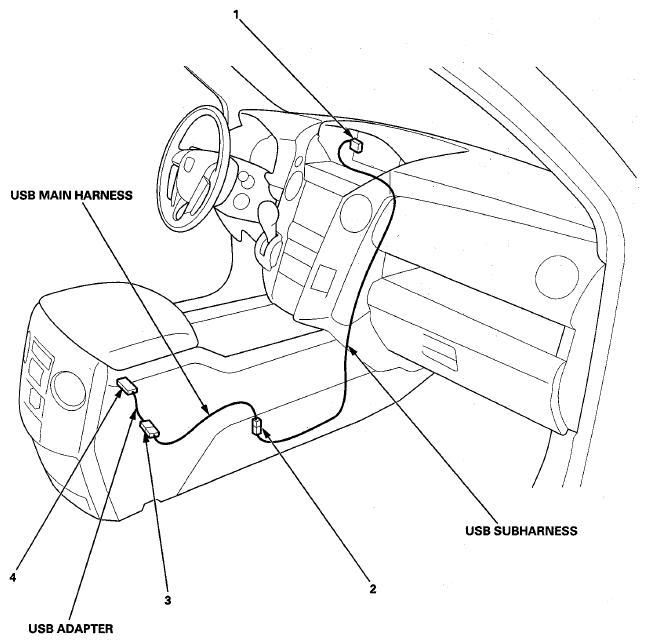

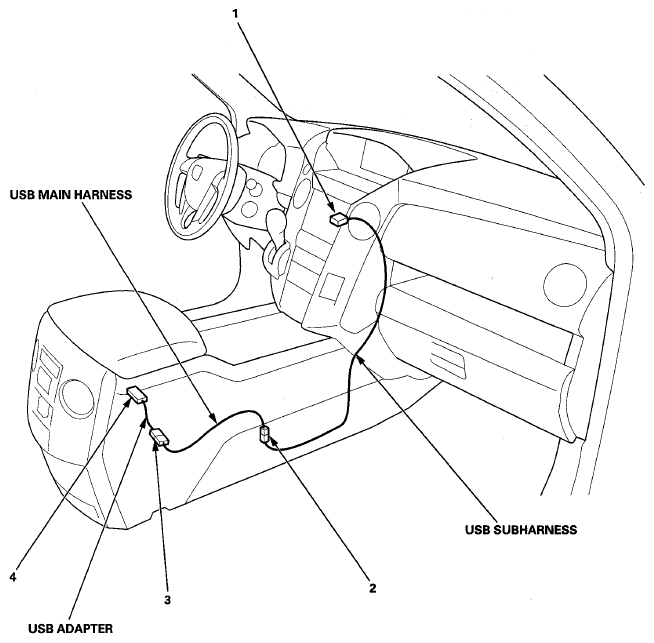

USB SUBHARNESS (WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Audio-Navigation unit connector K 1 7 Middle of dash
USB subharness connector 2 5 Right side of center console USB main harness
USB MAIN HARNESS (WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
USB main harness connector 2 5 Right side of center console USB subharness
USB main harness connector 3 5 Right side of center console USB adapter
USB ADAPTER (WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
USB adapter 3 5 Right side of center console USB main harness
USB port 4 5 Right side of center console
Fig 13: Identifying USB Subharness, USB Harness And USB Adapter (With Navigation)
G08090570Courtesy of AMERICAN HONDA MOTOR CO., INC.
USB SUBHARNESS (WITHOUT NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Audio display-USB adapter control unit connector B 1 7 Middle of dash
USB subharness connector 2 5 Right side of center console USB main harness
USB MAIN HARNESS (WITHOUT NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
USB main harness connector 2 5 Right side of center console USB subharness
USB main harness connector 3 5 Right side of center console USB adapter
USB ADAPTER (WITHOUT NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
USB adapter 3 5 Right side of center console USB main harness
USB port 4 5 Right side of center console
Fig 14: Identifying USB Subharness, USB Harness And USB Adapter (Without Navigation)
G08090571Courtesy of AMERICAN HONDA MOTOR CO., INC.
FLOOR WIRE HARNESS (LEFT BRANCH)

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's door switch 45 1 Left B-pillar
Driver's seat belt tensioner 44 4 Left B-pillar
Driver's side airbag inflator 47 2 Under driver's seat
EVAP canister vent shut valve 42 2 Fuel tank
FTP sensor 10 3 Fuel tank
Fuel pump/fuel gauge sending unit 41 4 Fuel tank   (7)
Fuel pump/fuel gauge sending unit 41 5 Fuel tank   (8)
Left rear door switch 40 1 Left C-pillar
Left rear initiator 15 3 Under left side of floor
Left side curtain airbag inflator 13 2 Left C-pillar
Left side impact sensor (first) 46 4 Left B-pillar
Left side impact sensor (second) 39 4 Left C-pillar
Left side impact sensor (third) 35 2 Left D-pillar
Optional connector (for trailer lighting connector) 25 10 Rear bumper   (3)
Optional connector (for trailer lighting control unit) 38 14 Left side of cargo area   (3)
Parking brake switch 2 1 Under left side of dash
Power tailgate outside beeper 24 2 Left side of rear bumper   (4)
Trailer IG2 relay 18 4 Left side of cargo area   (2)
Trailer lighting control unit 23 12 Left side of cargo area   (2)
Trailer lighting relay 17 4 Left side of cargo area   (2)
VTM-4 control unit connector A 21 22 Left side of cargo area   4WD
VTM-4 control unit connector B 22 12 Left side of cargo area   4WD
C206 7 18 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C207 8 2 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  )
C208 4 1 Under left side of dash Left engine compartment wire harness (see Left Engine Compartment Wire Harness  ) (1)
C307 5 18 Under left side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C308 6 3 Under left side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C401 3 18 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C402 49 20 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  ) (5)
C402 49 34 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  ) (6)
(1) With power tailgate
(2) With factory-installed trailer lighting connector
(3) Without factory-installed trailer lighting connector
(4) Power tailgate without factory-installed trailer lighting connector
(5) 2WD without DPMS
(6) 2WD with DPMS or 4WD
(7) Except USA model
(8) USA model
Fig 15: Identifying Floor Wire Harness (Left Branch)
G08090572Courtesy of AMERICAN HONDA MOTOR CO., INC.
FLOOR WIRE HARNESS (LEFT BRANCH)

Connector or Terminal Ref Cavities Location Connects to Notes
C501 16 23 Left side of cargo area Rear wire harness (see Rear Wire Harness  ) (1)
C501 16 20 Left side of cargo area Rear wire harness (see Rear Wire Harness  ) (2)
C502 37 1 Left side of cargo area Rear wire harness (see Rear Wire Harness  ) (2)
C502 37 2 Left side of cargo area Rear wire harness (see Rear Wire Harness  ) (1)
C512 48 18 Under driver's seat Driver's seat wire harness (see Driver's Seat Wire Harness  ) (3)
C512 48 4 Under driver's seat Driver's seat wire harness (see Driver's Seat Wire Harness  ) (4)
C513 9 12 Under driver's seat Driver's seat wire harness (see Driver's Seat Wire Harness  ) (7)
C531 12 4 Under left second row seat Left second row seat heater subharness (see Left Second Row Seat Heater Subharness (With second row seat heater)  ) (5)
C551 20 6 Under rear of floor Rear subframe wire harness (see Rear Subframe Wire Harness  )
C552 19 6 Under rear of floor Rear subframe wire harness (see Rear Subframe Wire Harness  ) 4WD
C561 34 2 Left side of rear bumper Rear bumper subharness (6)
C562 33 14 Left side of rear bumper Rear bumper subharness (6)
C771 43 10 Left B-pillar Left rear door wire harness (see Left Rear Door Wire Harness  )
C851 11 4 Left side of center console Rear A/C wire harness (see Rear A/C Wire Harness  ) (5)
G501 1   Under left side of dash Body ground, via floor wire harness
G503 14   Left C-pillar Body ground, via floor wire harness
G504 36   Left side of cargo area Body ground, via floor wire harness
(1) With power tailgate
(2) Without power tailgate
(3) With power seat
(4) Without power seat
(5) With second row seat heater
(6) With factory-installed trailer lighting connector
(7) With DPMS and seat heater
REAR BUMPER SUBHARNESS (WITH FACTORY-INSTALLED TRAILER LIGHTING CONNECTOR)

Connector or Terminal Ref Cavities Location Connects to Notes
Power tailgate outside beeper 32 2 Left side of rear bumper
Trailer lighting connector 31 7 Rear bumper
C561 34 2 Left side of rear bumper Floor wire harness
C562 33 14 Left side of rear bumper Floor wire harness
C563 30 3 Rear bumper Rear bumper wire harness
REAR BUMPER WIRE HARNESS (WITH PARKING AND BACK-UP SENSOR SYSTEM)

Connector or Terminal Ref Cavities Location Connects to Notes
Left rear center sensor 28 6 Rear bumper
Left rear corner sensor 29 6 Rear bumper
Right rear center sensor 27 6 Rear bumper
Right rear corner sensor 26 6 Rear bumper
C563 30 3 Rear bumper Rear bumper subharness (1)
(1) With factory-installed trailer lighting connector

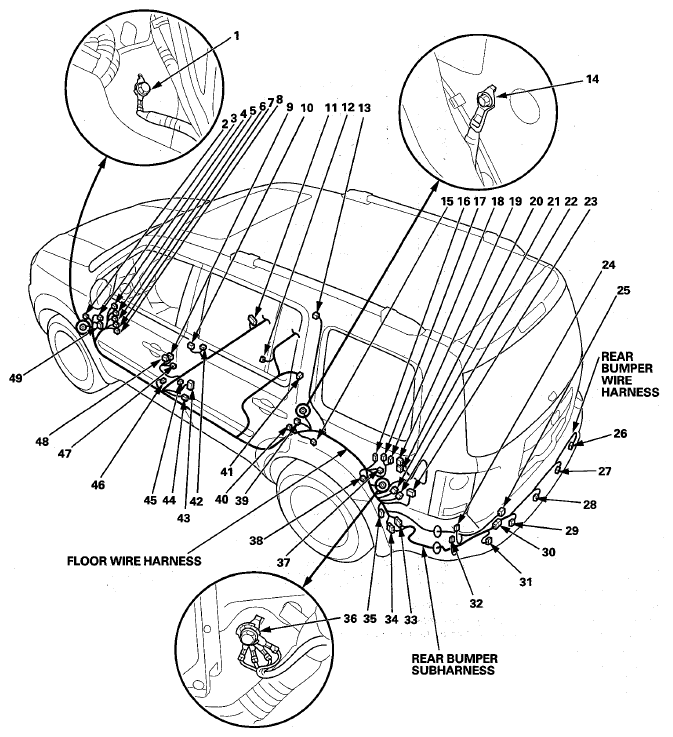

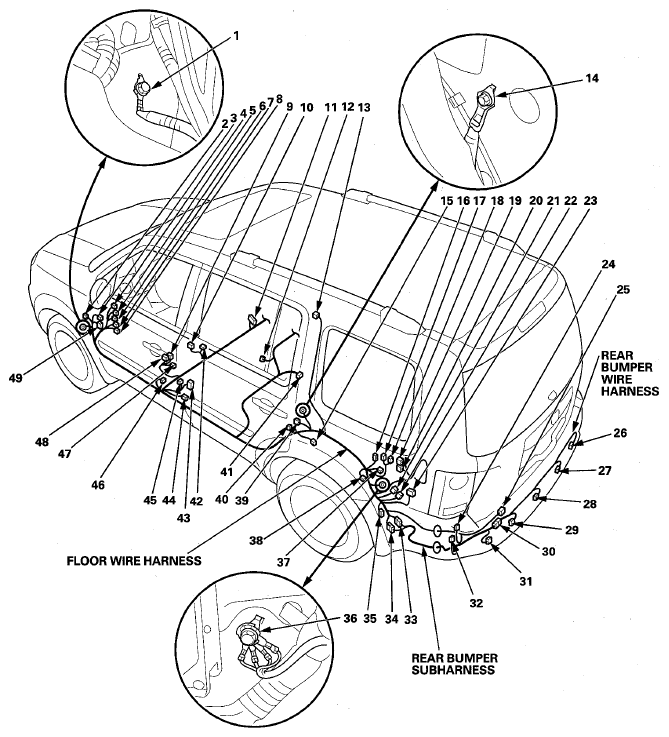

Fig 16: Identifying Floor Wire Harness, Rear Bumper Wire Harness And Subharness
G08090573Courtesy of AMERICAN HONDA MOTOR CO., INC.
FLOOR WIRE HARNESS (RIGHT BRANCH)

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's door switch 12 1 Right B-pillar
Front passenger's seat belt tensioner 10 4 Right B-pillar
Front passenger's side airbag inflator 17 2 Under front passenger's seat
Rear safing sensor 7 2 Middle of floor
Right rear door switch 22 1 Right C-pillar
Right rear initiator 23 3 Under right side of floor
Right side curtain airbag inflator 8 2 Right C-pillar
Right side impact sensor (first) 13 4 Right B-pillar
Right side impact sensor (second) 6 4 Right C-pillar
Right side impact sensor (third) 3 2 Right D-pillar
Right taillight 1 5 Right side of cargo area
SRS unit connector 8 14 39 Middle of dash
Subwoofer 4 2 Right side of cargo area
XM receiver connector A 5 14 Right side of cargo area   (6)
C306 19 23 Under right side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C403 15 8 Middle of dash Dashboard wire harness (see Dashboard Wire Harness (View of middle side)  )
C404 18 12 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  ) (7)
C404 18 28 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  ) (6)
C404 12 2 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  ) (8)
C405 20 4 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  ) (7)
C503 2 18 Right side of cargo area Rear wire harness (see Rear Wire Harness  ) (1)
C503 2 13 Right side of cargo area Rear wire harness (see Rear Wire Harness  ) (2)
C504 24 6 Right side of cargo area Rear wire harness (see Rear Wire Harness  ) (2)
C521 16 18 Under front passenger's seat Front passenger's seat wire harness (see Front Passenger's Seat Wire Harness  ) (3)
C521 16 13 Under front passenger's seat Front passenger's seat wire harness (see Front Passenger's Seat Wire Harness  ) (4)
C541 9 4 Under right second row seat Right second row seat heater subharness (see Right Second Row Seat Heater Subharness (With second row seat heater)  ) (5)
C781 11 10 Right B-pillar Right rear door wire harness (see Right Rear Door Wire Harness  )
G502 21   Under front passenger's seat Body ground, via floor wire harness
G505 25   Right side of cargo area Body ground, via floor wire harness
(1) With power tailgate
(2) Without power tailgate
(3) With front passenger's power seat
(4) Without front passenger's power seat
(5) With second row seat heater
(6) With XM Receiver
(7) Without XM Receiver
(8) Without XM receiver, rearview camera, and electrical compass

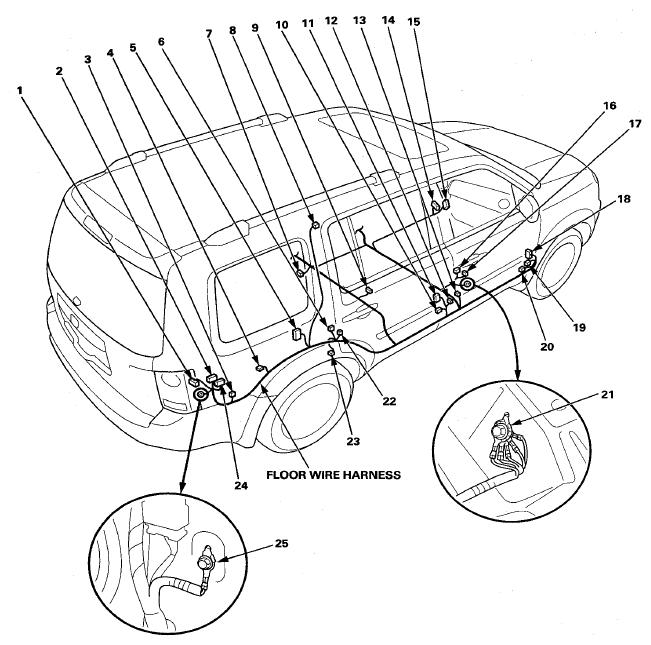

Fig 17: Identifying Floor Wire Harness (Right Branch)
G08090574Courtesy of AMERICAN HONDA MOTOR CO., INC.
REAR WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Cargo area accessory power socket 6 2 Right side of cargo area
Electrical compass unit 2 6 Rear center of roof   (2)
Left rear speaker 1 2 Left D-pillar   (1)
Left taillight 10 5 Left side of cargo area
Power tailgate control unit connector A 14 5 Left side of cargo area   (3)
Power tailgate control unit connector B 15 20 Left side of cargo area   (3)
Power tailgate control unit connector C 16 14 Left side of cargo area   (3)
Power tailgate driver unit connector A 13 2 Left D-pillar   (3)
Power tailgate driver unit connector B 12 8 Left D-pillar   (3)
Power tailgate inside beeper 11 2 Left side of cargo area   (3)
Right rear speaker 5 2 Right D-pillar   (1)
C501 18 23 Left side of cargo area Floor wire harness (see Floor Wire Harness (Left branch)  ) (3)
C501 18 20 Left side of cargo area Floor Wire harness (see Floor Wire Harness (Left branch)  ) (4)
C502 17 1 Left side of cargo area Floor wire harness (see Floor Wire Harness (Left branch)  ) (4)
C502 17 2 Left side of cargo area Floor wire harness (see Floor Wire Harness (Left branch)  ) (3)
C503 8 18 Right side of cargo area Floor wire harness (see Floor Wire Harness (Right branch)  ) (3)
C503 8 13 Right side of cargo area Floor wire harness (see Floor Wire Harness (Right branch)  ) (4)
C504 7 6 Right side of cargo area Floor wire harness (see Floor Wire Harness (Right branch)  ) (4)
C601 3 34 Rear center of roof Tailgate wire harness (see Tailgate Wire Harness  ) (3)
C601 3 16 Rear center of roof Tailgate wire harness (see Tailgate Wire Harness  ) (4)
C602 4 8 Rear center of roof Tailgate wire harness (see Tailgate Wire Harness  )
G601 9   Rear center of roof Body ground, via rear wire harness
G602 19   Left D-pillar Body ground, via rear wire harness (3)
(1) With rear entertainment
(2) With electrical compass
(3) With power tailgate
(4) Without power tailgate

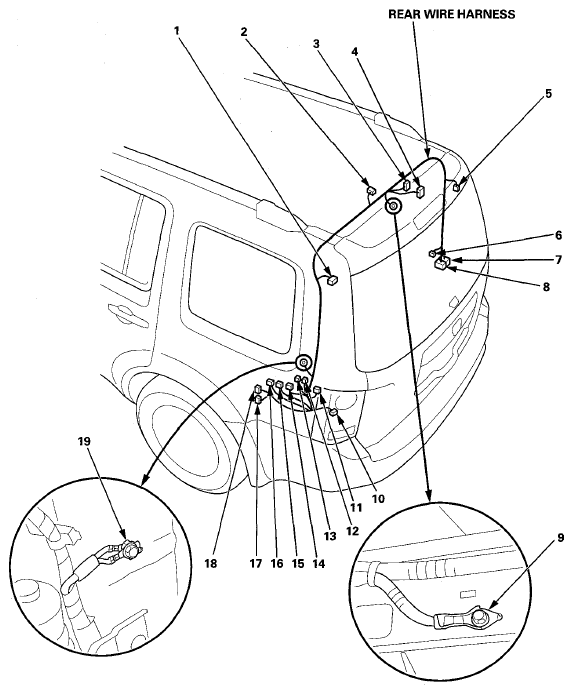

Fig 18: Identifying Rear Wire Harness
G08090575Courtesy of AMERICAN HONDA MOTOR CO., INC.
TAILGATE WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
High mount brake light 2 2 Behind high mount brake light
C601 3 34 Rear center of roof Rear wire harness (see Rear Wire Harness  ) (2)
C601 3 16 Rear center of roof Rear wire harness (see Rear Wire Harness  ) (1)
C602 4 8 Rear center of roof Rear wire harness (see Rear Wire Harness  )
C651 8 28 Right side of tailgate Tailgate subharness (see Tailgate Subharness  )
C652 7 12 Right side of tailgate Tailgate subharness (see Tailgate Subharness  ) (2)
C671 6 2 Middle of tailgate Rear window defogger subharness
(1) Without power tailgate
(2) With power tailgate
REAR WINDOW DEFOGGER SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Rear window defogger connector A (+) 1 1 Left side of rear window
Rear window defogger connector B (-) 5 1 Right side of rear window
C671 6 2 Middle of tailgate Tailgate wire harness

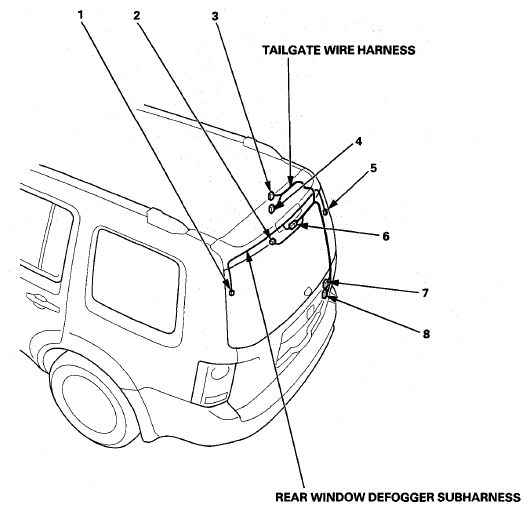

Fig 19: Identifying Rear Window Defogger Subharness And Tailgate Wire Harness
G08090576Courtesy of AMERICAN HONDA MOTOR CO., INC.

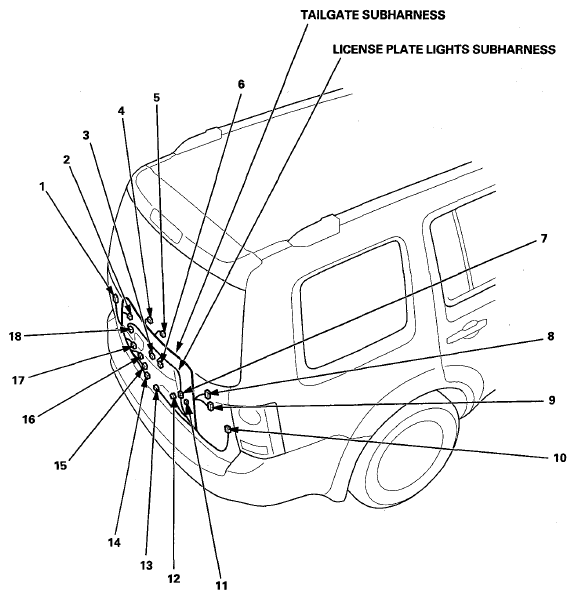

TAILGATE SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Diode 15 2 Middle of tailgate   (2)
Hatch glass latch switch 4 2 Middle of tailgate
Hatch glass opener actuator 2 2 Middle of tailgate
Inside tailgate switch 12 5 Middle of tailgate   (1)
Left power tailgate pinch sensor 1 2 Left side of tailgate   (1)
Power tailgate closer unit connector A 13 2 Middle of tailgate   (1)
Power tailgate closer unit connector B 16 6 Middle of tailgate   (1)
Rear window wiper motor 5 5 Middle of tailgate
Rearview camera 11 6 Middle of tailgate   (3)
Rearview camera 11 12 Middle of tailgate   (4)
Right power tailgate pinch sensor 10 2 Right side of tailgate   (1)
Tailgate latch switch/release actuator 14 4 Middle of tailgate   (2)
Tailgate outer handle switch 17 2 Middle of tailgate
C651 9 28 Right side of tailgate Tailgate wire harness (see Tailgate Wire Harness  )
C652 8 12 Right side of tailgate Tailgate wire harness (see Tailgate Wire Harness  ) (1)
C661 7 4 Middle of tailgate License plate lights subharness
(1) With power tailgate
(2) Without power tailgate
(3) Without navigation
(4) With rearview camera
LICENSE PLATE LIGHTS SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Hatch glass opener switch 6 2 Middle of tailgate
Left license plate light 18 2 Middle of tailgate
Right license plate light 3 2 Middle of tailgate
C661 7 4 Middle of tailgate Tailgate subharness
Fig 20: Identifying License Plate Lights Subharness And Tailgate Harness
G08090577Courtesy of AMERICAN HONDA MOTOR CO., INC.
REAR SUBFRAME WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Left clutch electromagnetic coil 9 2 Rear differential   4WD
Left rear wheel speed sensor 3 2 Under left side of floor
Right rear wheel speed sensor 4 2 Under right side of floor
C551 1 6 Under rear of floor Floor wire harness (see Floor Wire Harness (Left branch)  )
C552 2 6 Under rear of floor Floor wire harness (see Floor Wire Harness (Left branch)  ) 4WD
C553 5 6 Rear differential Rear subframe subharness 4WD
REAR SUBFRAME SUBHARNESS (4WD)

Connector or Terminal Ref Cavities Location Connects to Notes
Rear differential fluid temperature sensor 8 2 Rear differential
Right clutch electromagnetic coil 6 2 Rear differential
C553 5 6 Rear differential Rear subframe wire harness
T15 7   Rear differential Rear differential housing

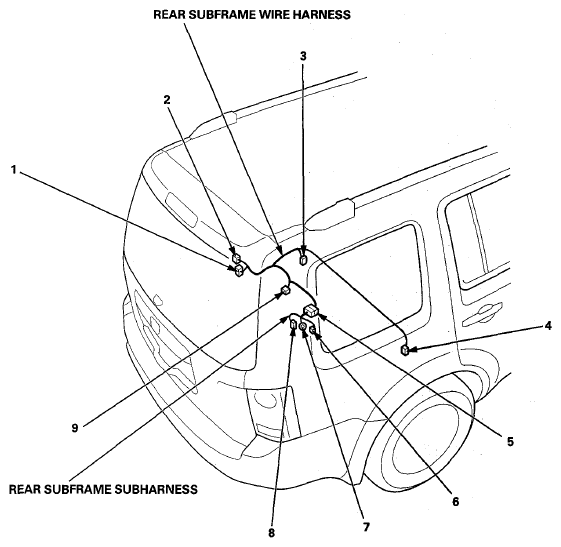

Fig 21: Identifying Rear Subframe Wire Harness And Rear Subframe Subharness
G08090578Courtesy of AMERICAN HONDA MOTOR CO., INC.

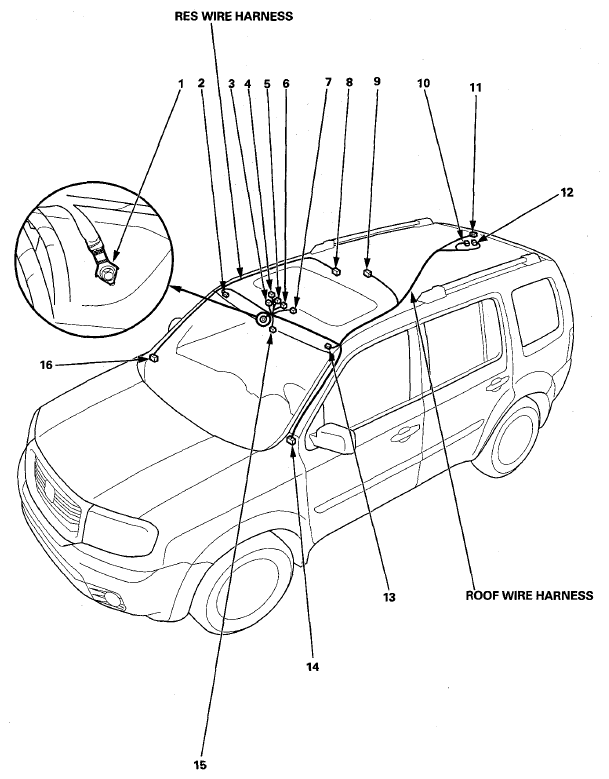

ROOF WIRE HARNESS (WITH MOONROOF)

Connector or Terminal Ref Cavities Location Connects to Notes
Automatic dimming inside mirror 15 7 Front center of roof
Cargo area light 11 3 Rear center of roof
Driver's vanity mirror light 13 2 Left front side of roof
Front HFL-navigation-ANC microphone 7 7 Front center of roof   (1)
Front individual map light 5 3 Front center of roof
HomeLink unit 4 5 Front center of roof
Interior light switch/moonroof switch/ambient light (roof) 6 12 Front center of roof
Moonroof control unit/motor 3 10 Front center of roof
Passenger's vanity mirror light 2 2 Right front side of roof
Rear active noise cancellation microphone 10 3 Rear center of roof
Rear individual map light (2nd) 9 3 Middle of roof
Rear individual map light (3rd) 12 3 Rear center of roof
C701 14 28 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
G701 1   Front of roof Body ground, via roof wire harness
(1) With navigation
RES WIRE HARNESS (WITH REAR ENTERTAINMENT)

Connector or Terminal Ref Cavities Location Connects to Notes
Rear controller and screen connector 8 24 Middle of roof
C711 16 24 Under right side of dash Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  )
Fig 22: Identifying Roof Wire And RES Wire Harnesses
G08090579Courtesy of AMERICAN HONDA MOTOR CO., INC.
ROOF WIRE HARNESS (WITHOUT MOONROOF)

Connector or Terminal Ref Cavities Location Connects to Notes
Cargo area light 9 3 Rear center of roof
Driver's vanity mirror light 11 2 Left front side of roof
Front active noise cancellation microphone 6 3 Front center of roof
Front HFL-ANC microphone 12 7 Front center of roof   (2)
Front individual map light 4 3 Front center of roof
HomeLink unit 3 5 Front center of roof   (1)
Interior light switch/ambient light (roof) 5 12 Front center of roof
Optional connector (for automatic dimming inside mirror) 13 6 Front center of roof
Passenger's vanity mirror light 2 2 Right front side of roof
Hear active noise cancellation microphone 8 3 Rear center of roof
Rear individual map light (2nd) 7 3 Middle of roof
Rear individual map light (3rd) 10 3 Rear center of roof
C701 14 20 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
G701 1   Front of roof Body ground, via roof wire harness
(1) With HomeLink
(2) HandsFreeLink without navigation

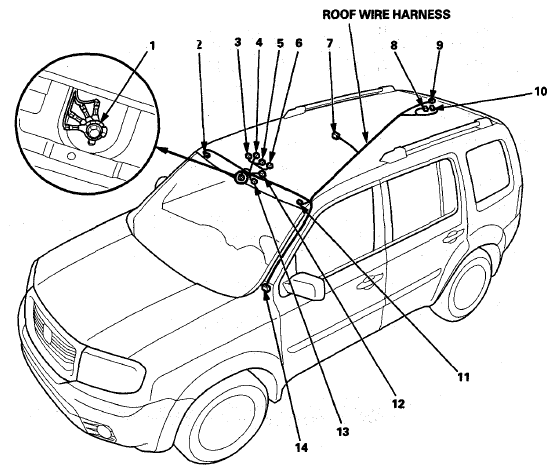

Fig 23: Identifying Roof Wire Harness (Without Moonroof)
G08090580Courtesy of AMERICAN HONDA MOTOR CO., INC.
AM/FM ANTENNA LEAD AND RDS-TMC ANTENNA LEAD (USA MODEL WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Window antenna (AM/FM) 5 3 Right quarter glass
Window antenna (RDS-TMC) 8 3 Left quarter glass
C901 (AM/FM) 2 3 Under right side of dash AM/FM antenna sublead and RDS-TMC antenna sublead
C902 (RDS-TMC) 1 5 Under right side of dash AM/FM antenna sublead and RDS-TMC antenna sublead
AM/FM ANTENNA SUBLEAD AND RDS-TMC ANTENNA SUBLEAD (USA MODEL WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Audio-Navigation unit connector G 4 5 Middle of dash
Audio-Navigation unit connector L 3 3 Middle of dash
C901 (AM/FM) 2 3 Under right side of dash AM/FM antenna lead and RDS-TMC antenna lead
C902 (RDS-TMC) 1 5 Under right side of dash AM/FM antenna lead and RDS-TMC antenna lead
XM ANTENNA LEAD (USA MODEL WITH NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
XM antenna 7 2 Rear center of roof
XM receiver connector B 6 2 Right rear side trim panel

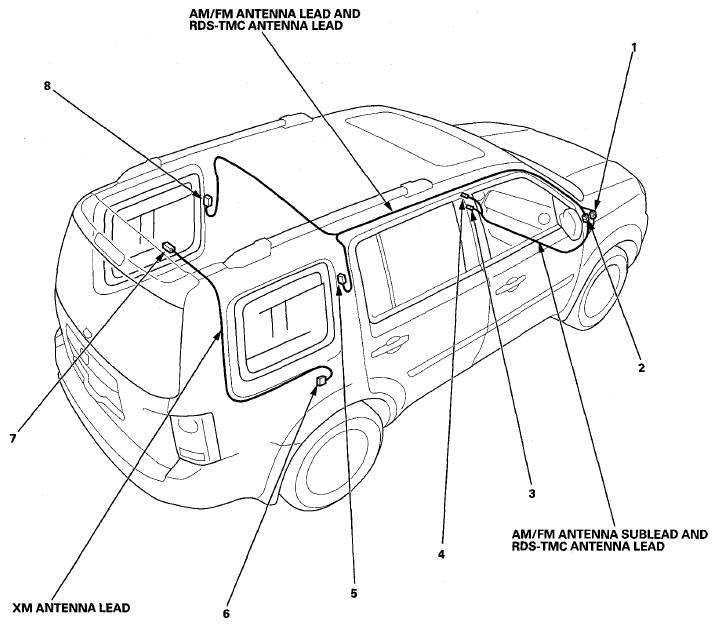

Fig 24: Identifying AM/FM Antenna Lead, Sublead And RDS-TMC Antenna Lead And XM Antenna Lead (USA Model With Navigation)
G08090581Courtesy of AMERICAN HONDA MOTOR CO., INC.

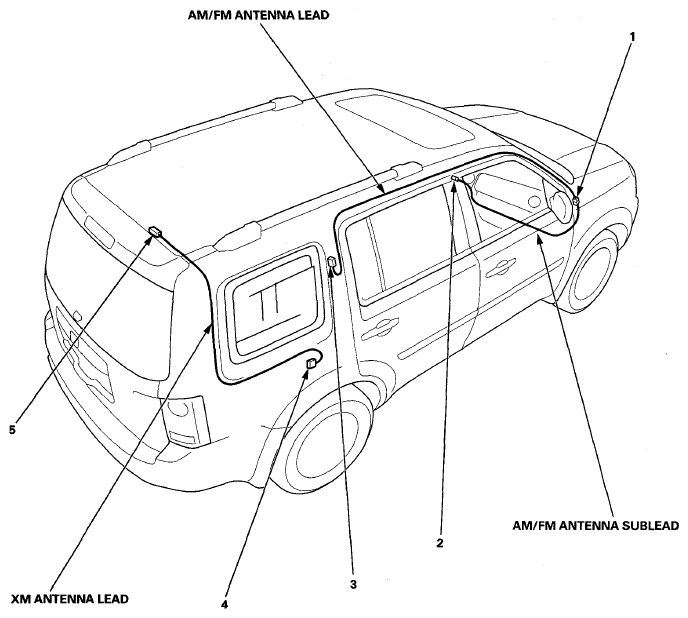

AM/FM ANTENNA LEAD (CANADA MODEL WITH NAVIGATION AND WITHOUT NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Window antenna 3 3 Right quarter glass
C901 1 3 Under right side of dash AM/FM antenna sublead
AM/FM ANTENNA SUBLEAD (CANADA MODEL WITH NAVIGATION AND WITHOUT NAVIGATION)

Connector or Terminal Ref Cavities Location Connects to Notes
Audio unit connector G 2 3 Middle of dash   (2)
Audio-Navigation unit connector G 2 5 Middle of dash   (1)
C901 1 3 Under right side of dash AM/FM antenna lead
(1) With navigation
(2) Without navigation
XM ANTENNA LEAD (WITH XM RECEIVER)

Connector or Terminal Ref Cavities Location Connects to Notes
XM antenna 5 2 Rear center of roof
XM receiver connector B 4 2 Right rear side trim panel
Fig 25: Identifying AM/FM Antenna Lead, Sublead And XM Antenna Lead (Canada Model With Navigation And Without Navigation)
G08090582Courtesy of AMERICAN HONDA MOTOR CO., INC.

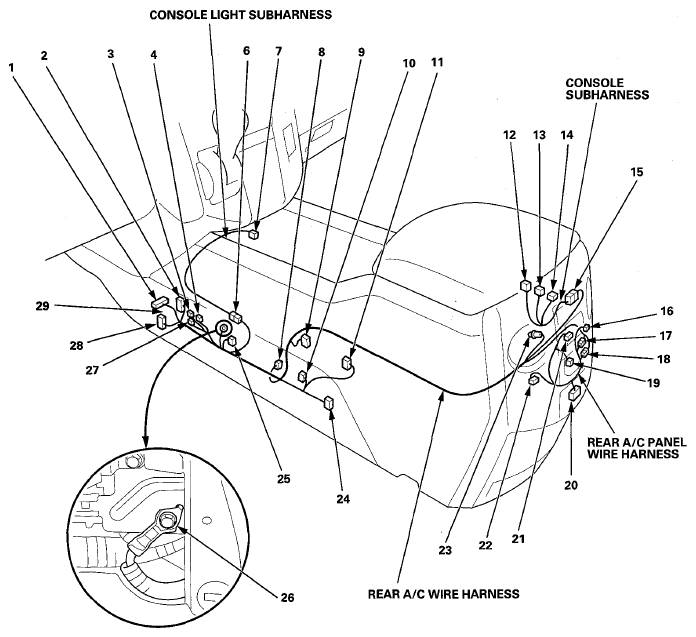

REAR A/C WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Console accessory power socket A relay 3 4 Left side of center console
Console accessory power socket B relay 26 4 Left side of center console
Console box light 22 2 Rear of center console
Rear air mix control motor 8 7 Left side of center console
Rear blower motor 24 2 Left side of center console
Rear blower motor relay 4 4 Left side of center console
Rear evaporator temperature sensor 9 2 Left side of center console   (1)
Rear mode control motor 10 7 Left side of center console
Rear power transistor 7 4 Left side of center console
C451 27 18 Under middle of dash Dashboard wire harness (see Dashboard Wire Harness (View of middle side)  )
C452 1 20 Under middle of dash Dashboard wire harness (see Dashboard Wire Harness (View of middle side)  ) (2)
C454 2 14 Under middle of dash Dashboard wire harness (see Dashboard Wire Harness (View of middle side)  )
C801 16 8 Rear of center console Rear A/C panel subharness (3)
C801 16 28 Rear of center console Rear A/C panel subharness (2)
C802 17 6 Rear of center console Rear A/C panel subharness (4)
C811 14 10 Rear of center console Console subharness
C821 5 2 Left side of center console Console light subharness
C851 23 4 Left side of center console Floor wire harness (see Floor Wire Harness (Left branch)  ) (4)
G801 25   Left side of center console Body ground, via rear A/C wire harness
(1) With climate control
(2) With rear entertainment
(3) Without rear entertainment
(4) With second row seat heater
REAR A/C PANEL WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Console accessory power socket B 18 2 Rear of center console
Left second row seat heater switch 21 6 Rear of center console   (1)
Rear climate control panel 20 12 Rear of center console   (4)
Rear HVAC control panel 20 12 Rear of center console   (5)
RES auxiliary jack assembly 19 14 Rear of center console   (2)
Right second row seat heater switch 15 6 Rear of center console   (1)
C801 16 28 Rear of center console Rear A/C wire harness (2)
C801 16 8 Rear of center console Rear A/C wire harness (3)
C802 17 6 Rear of center console Rear A/C wire harness (1)
(1) With second row seat heater
(2) With rear entertainment
(3) Without rear entertainment
(4) With climate control
(5) Without climate control
CONSOLE SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Auxiliary jack assembly 13 5 Rear of center console
Console accessory power socket A 11 2 Rear of center console
Power outlet 12 3 Rear of center console   (1)
C811 14 10 Rear of center console Rear A/C wire harness
(1) With AC power outlet
CONSOLE LIGHT SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Ambient light (console) 6 2 Front of center console
C821 5 2 Left side of center console Rear A/C wire harness
Fig 26: Identifying Console, Light Subharness, Rear A/C Wire Harness And Panel Wire Harness
G08090583Courtesy of AMERICAN HONDA MOTOR CO., INC.
DRIVER'S DOOR WIRE HARNESS (WITH DPMS)

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's door lock actuator/knob switch/key cylinder switch 14 10 Driver's door
Driver's door speaker 10 2 Driver's door
Driver's power window motor 11 6 Driver's door
Power mirror switch 2 13 Driver's door
Power window master switch (door multiplex control unit) 1 37 Driver's door
C751 8 24 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C752 9 8 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C753 3 34 Driver's door Driver's door subharness
C754 (junction connector) 7 12 Driver's door
DRIVER'S DOOR SUBHARNESS (WITH DPMS)

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's door courtesy light 13 2 Driver's door
Driver's door power tailgate switch 12 5 Driver's door
Driving position memory switch 4 10 Driver's door
Left power mirror 6 16 Driver's door
Power mirror control unit 5 24 Driver's door
C753 3 34 Driver's door Driver's door wire harness
Fig 27: Identifying Driver's Door Wire Harness And Subharness (With DPMS)
G08090584Courtesy of AMERICAN HONDA MOTOR CO., INC.

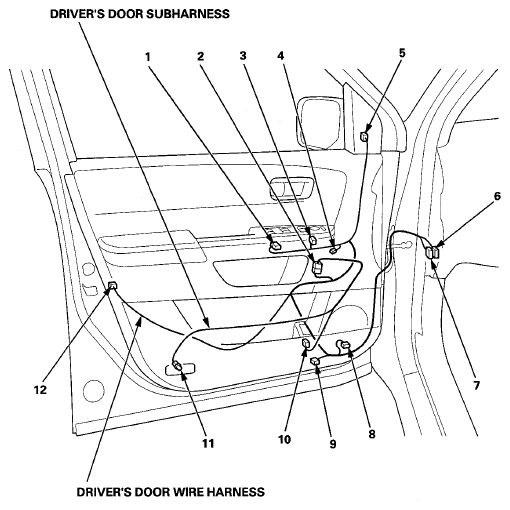

DRIVER'S DOOR WIRE HARNESS (WITHOUT DPMS)

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's door lock actuator/knob switch/key cylinder switch 12 10 Driver's door
Driver's door speaker 8 2 Driver's door
Driver's power window motor 9 6 Driver's door
Left power mirror 5 16 Driver's door
Power mirror switch 3 13 Driver's door
Power window master switch (door multiplex control unit) 1 37 Driver's door
C751 6 16 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C752 7 8 Under left side of dash Dashboard wire harness (see Dashboard Wire Harness (View of driver's side)  )
C753 2 6 Driver's door Driver's door subharness
C754 (Junction connector) 4 12 Driver's door
DRIVER'S DOOR SUBHARNESS (WITHOUT DPMS)

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's door courtesy light 11 2 Driver's door
Driver's door hatch glass opener switch 10 5 Driver's door
C753 2 6 Driver's door Driver's door wire harness
Fig 28: Identifying Driver's Door Wire Harness And Subharness (Without DPMS)
G08090585Courtesy of AMERICAN HONDA MOTOR CO., INC.

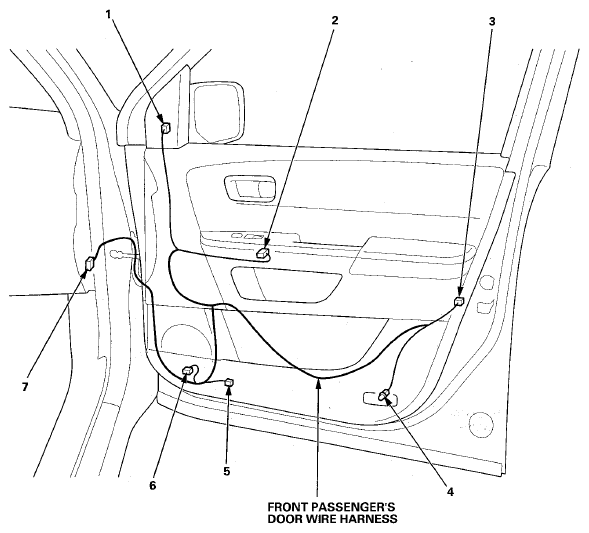

FRONT PASSENGER'S DOOR WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's door courtesy light 4 2 Front passenger's door
Front passenger's door lock actuator/knob switch 3 10 Front passenger's door
Front passenger's door speaker 6 2 Front passenger's door
Front passenger's power window motor 5 6 Front passenger's door
Front passenger's power window switch 2 37 Front passenger's door
Right power mirror 1 16 Front passenger's door
C761 7 18 Under right side of dash; Dashboard wire harness (see Dashboard Wire Harness (View of passenger's side)  )
Fig 29: Identifying Front Passenger's Door Wire Harness
G08090586Courtesy of AMERICAN HONDA MOTOR CO., INC.

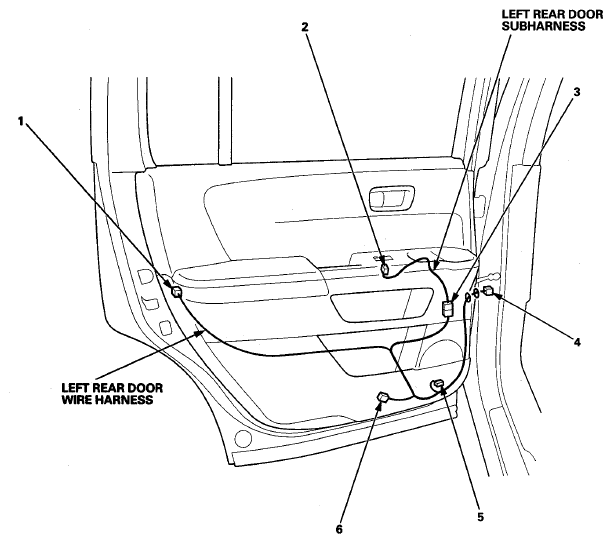

LEFT REAR DOOR WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Left rear door lock knob switch/lock actuator 1 10 Left rear door
Left rear door speaker 5 2 Left rear door
Left rear power window motor 6 2 Left rear door
C771 4 10 Left B-pillar Floor wire harness (see Floor Wire Harness (Left branch)  )
C772 3 8 Left rear door Left rear door subharness
LEFT REAR DOOR SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Left rear power window switch 2 14 Left rear door
C772 3 8 Left rear door Left rear door wire harness
Fig 30: Identifying Left Rear Door Wire Harness And Subharness
G08090587Courtesy of AMERICAN HONDA MOTOR CO., INC.

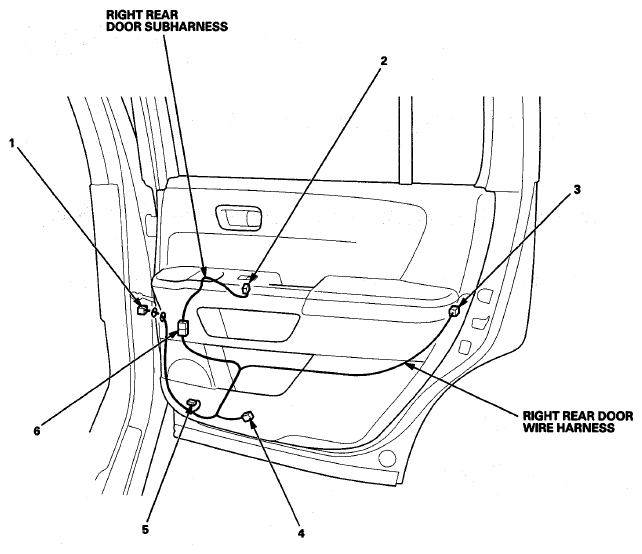

RIGHT REAR DOOR WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Right rear door knob switch/lock actuator 3 10 Right rear door
Right rear door speaker 5 2 Right rear door
Right rear power window motor 4 2 Right rear door
C781 1 10 Right B-pillar Floor wire harness (see Floor Wire Harness (Right branch)  )
C782 6 8 Right rear door Right rear door subharness
RIGHT REAR DOOR SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Right rear power window switch 2 14 Right rear door
C782 6 8 Right rear door Right rear door wire harness
Fig 31: Identifying Right Rear Door Wire Harness And Subharness
G08090588Courtesy of AMERICAN HONDA MOTOR CO., INC.

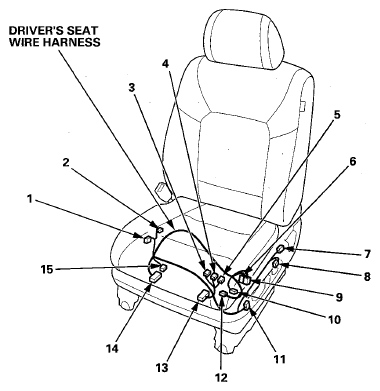

DRIVER'S SEAT WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's power lumbar support switch 8 5 Left side of driver's seat   (1)
Driver's power seat adjustment switch 11 12 Left side of driver's seat   (1)
Driver's seat belt buckle switch 15 2 Driver's seat
Driver's seat cushion heater 4 5 Driver's seat   (2)
Driver's seat front up-down motor 1 6 Driver's seat   (4)
Driver's seat front up-down motor/position sensor 1 6 Driver's seat   (3)
Driver's seat position sensor 2 2 Driver's seat
Driver's seat rear up-down motor 7 6 Driver's seat   (4)
Driver's seat rear up-down motor/position sensor 7 6 Driver's seat   (3)
Driver's seat recline motor/lumber support motor 5 8 Driver's seat   (4)
Driver's seat recline motor/position sensor/lumber support motor 5 8 Driver's seat   (3)
Driver's seat slide motor 10 6 Driver's seat   (4)
Driver's seat slide motor/position sensor 10 6 Driver's seat   (3)
Driver's seat-back heater 3 2 Driver's seat   (2)
Power seat control unit connector A 13 18 Under driver's seat   (3)
Power seat control unit connector B 14 40 Under driver's seat   (3)
Seat heater control unit 12 14 Under driver's seat   (2)
C512 9 18 Under driver's seat Floor wire harness (see Floor Wire Harness (Left branch)  ) (1)
C512 9 4 Under driver's seat Floor wire harness (see Floor Wire Harness (Left branch)  ) (5)
C513 6 12 Under driver's seat Floor wire harness (see Floor Wire Harness (Left branch)  ) (6)
(1) With power seat
(2) With seat heater
(3) Power seat with DPMS
(4) Power seat without DPMS
(5) Without power seat
(6) With DPMS and seat heater
Fig 32: Identifying Driver's Seat Wire Harness
G08090589Courtesy of AMERICAN HONDA MOTOR CO., INC.

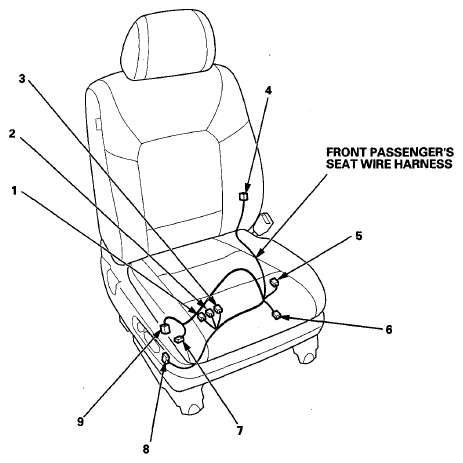

FRONT PASSENGER'S SEAT WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's power seat adjustment switch 8 12 Right side of front passenger's seat   (1)
Front passenger's seat belt buckle switch 6 2 Front passenger's seat
Front passenger's seat cushion heater 3 4 Front passenger's seat   (3)
Front passenger's seat recline motor 1 5 Front passenger's seat   (1)
Front passenger's seat slide motor 7 6 Front passenger's seat   (1)
Front passenger's weight sensors (front inner side) 5 3 Front passenger's seat
Front passenger's weight sensors (front outer side) 2 2 Front passenger's seat
ODS unit 4 18 Front passenger's seat
C521 9 18 Under front passenger's seat Floor wire harness (see Floor Wire Harness (Right branch)  ) (1)
C521 9 13 Under front passenger's seat Floor wire harness (see Floor Wire Harness (Right branch)  ) (2)
(1) With front passenger's power seat
(2) Without front passenger's power seat
(3) With seat heater
Fig 33: Identifying Front Passenger's Seat Wire Harness
G08090590Courtesy of AMERICAN HONDA MOTOR CO., INC.

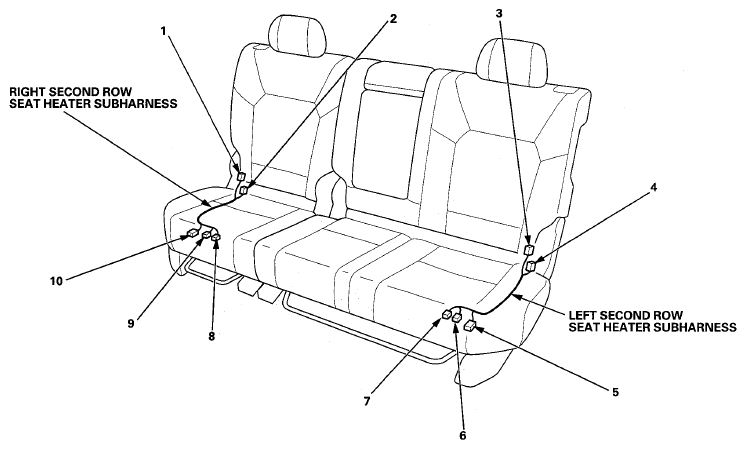

LEFT SECOND ROW SEAT HEATER SUBHARNESS (WITH SECOND ROW SEAT HEATER)

Connector or Terminal Ref Cavities Location Connects to Notes
Left second row seat cushion heater 4 3 Left second row seat
Left second row seat heater relay (high) 7 4 Under left second row seat
Left second row seat heater relay (low) 6 5 Under left second row seat
Left second row seat-back heater 3 2 Left second row seat
C531 5 4 Under left second row seat Floor wire harness (see Floor Wire Harness (Left branch)  )
RIGHT SECOND ROW SEAT HEATER SUBHARNESS (WITH SECOND ROW SEAT HEATER)

Connector or Terminal Ref Cavities Location Connects to Notes
Right second row seat cushion heater 2 3 Right second row seat
Right second row seat heater relay (high) 9 4 Under right second row seat
Right second row seat heater relay (low) 8 5 Under right second row seat
Right second row seat-back heater 1 2 Right second row seat
C541 10 4 Under right second row seat Floor wire harness (see Floor Wire Harness (Right branch)  )
Fig 34: Identifying Left And Right Second Row Seat Heater Subharness (With Heater)
G08090591Courtesy of AMERICAN HONDA MOTOR CO., INC.

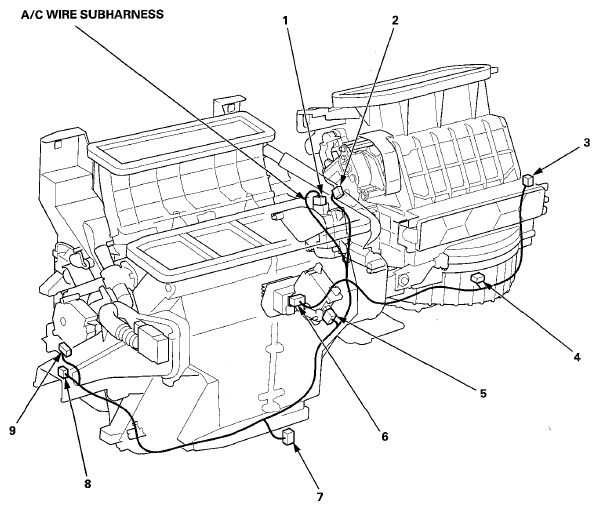

A/C WIRE HARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Driver's air mix control motor 9 7 Under middle of dash
Front blower motor 4 2 Under right side of dash
Front evaporator temperature sensor 8 2 Under middle of dash
Front mode control motor 1 7 Under middle of dash
Front power transistor 6 4 Under middle of dash
Passenger's air mix control motor 5 7 Under middle of dash   (1)
Recirculation control motor 2 7 Under middle of dash
C351 3 2 Under right side of dash Right engine compartment wire harness (see Right Engine Compartment Wire Harness  )
C461 7 24 Under middle of dash Dashboard wire harness (see Dashboard Wire Harness (View of middle side)  )
(1) With climate control
Fig 35: Identifying A/C Wire Harness
G08090592Courtesy of AMERICAN HONDA MOTOR CO., INC.

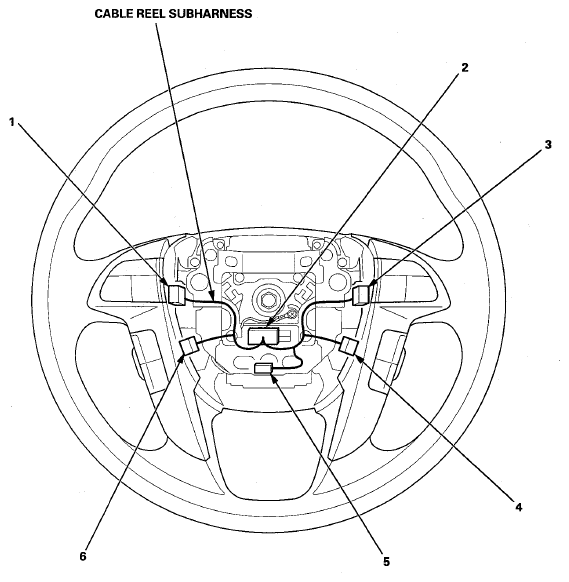

CABLE REEL SUBHARNESS

Connector or Terminal Ref Cavities Location Connects to Notes
Audio remote switch 1 12 Steering wheel   (1)
Cable reel connector 2 20 Steering wheel
Cruise control combination switch 3 12 Steering wheel
HFL-navigation voice control switch 6 5 Steering wheel   (2)
HFL switch 6 5 Steering wheel   (3)
Horn switch 5 2 Steering wheel
Multi-information switch 4 5 Steering wheel   (4)
(1) With audio remote switch
(2) With navigation
(3) Without navigation
(4) With multi-information display
Fig 36: Identifying Cable Reel Subharness
G08090593Courtesy of AMERICAN HONDA MOTOR CO., INC.
scientia non olet · About LEMON Manuals
