Driver's Dashboard Lower Cover Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Adjust the steering column upward.
Open the front door, and remove the driver's dashboard side panel (A).
1. Pull out the front door opening seal (B), as needed (see step 4 under FRONT DOOR SILL AREA ).
2. Gently pry the front edge of the side panel with a trim tools to release the hooks (C), then remove the side panel.

  Fig 1: Identifying Driver's Dashboard Side Panel, Front Door Opening Seal And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the left side of the driver's center panel (see step 1 under Dashboard Center Panel Removal/Installation ).
Remove the driver's dashboard lower cover (A).
1. Remove the screw.
2. Pull out the bottom of the driver's dashboard lower cover to release the clips.
3. Disconnect the switch connectors (B).
  - VSA OFF switch connector
  - Parking and back-up switch connector (for some models)

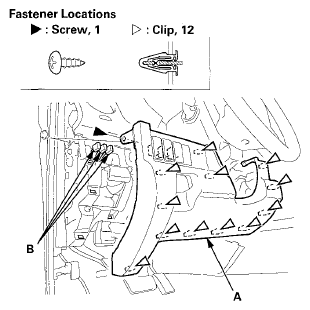

    Fig 2: Identifying Driver's Dashboard Lower Cover And Switch Connectors
    Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- Make sure that the electrical connector and the air hose to the humidity/in-car temperature sensor are properly connected.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
