Timing Belt Removal

Turn the crankshaft pulley so its white mark (A) on the crankshaft pulley lines up with the pointer (B).
NOTE: The other pointer (C) is not used.

Fig 1: Identifying White Mark On Crankshaft Pulley Lines Up With Pointer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the No. 1 piston top dead center (TDC) mark (A) on the front camshaft pulley and the pointer (B) on the front upper cover are aligned.
NOTE: If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark.

Fig 2: Identifying No. 1 Piston Top Dead Center (TDC) Mark On Front Camshaft Pulley And Pointer On Front Upper Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on the lift, then remove the right front wheel.
Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
Remove the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
Lift and support the engine with a jack and a wood block under the oil pan.

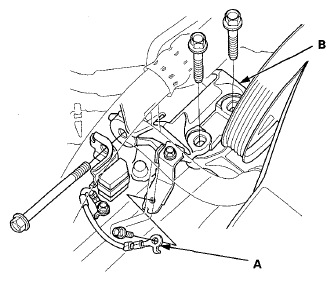

Remove the ground cable (A), then remove the upper half of the side engine mount bracket (B).

Fig 3: Identifying Ground Cable And Side Engine Mount Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION ).

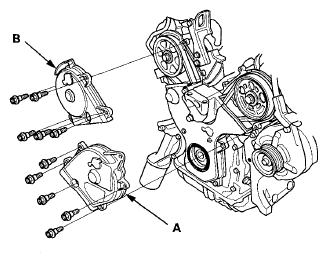

Remove the front upper cover (A) and the rear upper cover (B).

Fig 4: Identifying Front And Rear Upper Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lower cover.

Fig 5: Identifying Lower Cover And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove one of the battery clamp bolts from the battery tray, and grind the end of it as shown in illustration.

Fig 6: Identifying Grind End Of Battery Clamp Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Thread the battery clamp bolt in as shown in illustration to hold the timing belt adjuster in its current position. Tighten it by hand, do not use a wrench.

Fig 7: Holding Timing Belt Adjuster Using Battery Clamp Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the timing belt guide plate (A).

Fig 8: Identifying Timing Belt Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lower half of the side engine mount bracket.

Fig 9: Identifying Side Engine Mount Bracket And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the idler pulley bolt (A) and the idler pulley (B), then remove the timing belt. Discard the idler pulley bolt.

Fig 10: Identifying Idler Pulley And Idler Pulley Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
