Driveshaft Support Base Replacement

  1. Remove the right front driveshaft (see FRONT DRIVESHAFT REMOVAL  ).
  2. Remove the flange bolt (A) and the two dowel bolts (B), then remove the driveshaft support base (C).

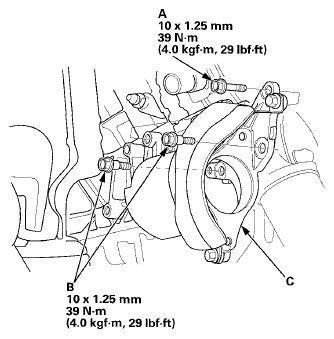

    Fig 1: Flange Bolt, Dowel Bolts And Driveshaft Support Base With Torque Specifications
    G08087881Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the heat shield (A).
    Fig 2: Heat Shield And Bolts With Torque Specifications
    G08087882Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the heat shield.
  5. Install the driveshaft support base.
  6. Install the right front driveshaft (see FRONT DRIVESHAFT INSTALLATION  ).
