Timing Belt Installation

NOTE: The following procedure is for installation of a used timing belt. If you are installing a new belt, refer to the TIMING BELT REPLACEMENT  procedure .
  1. Clean the timing belt pulleys, the timing belt guide plate, and the upper and lower covers.
  2. Set the timing belt drive pulley to top dead center (TDC) by aligning the TDC mark (A) on the tooth of the timing belt drive pulley with the pointer (B) on the oil pump.
    Fig 1: Identifying TDC Mark On Tooth Of Timing Belt Drive Pulley With Pointer On Oil Pump
    G08078649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Set the camshaft pulleys to TDC by aligning the TDC marks (A) on the camshaft pulleys with the pointers (B) on the back covers.

    FRONT

    Fig 2: Identifying TDC Marks On Camshaft Pulleys With Pointers On Back Covers (Front)
    G08078650Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

    Fig 3: Identifying TDC Marks On Camshaft Pulleys With Pointers On Back Covers (Rear)
    G08078651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move but does not come off.
  5. If the auto-tensioner has extended and the timing belt cannot be installed, do the timing belt replacement procedure (see TIMING BELT REPLACEMENT  ).
  6. Install the timing belt in a counterclockwise sequence starting with the drive pulley. Take care not to damage the timing belt during installation.
    1. Drive pulley (A)
    2. Idler pulley (B)
    3. Front camshaft pulley (C)
    4. Water pump pulley (D)
    5. Rear camshaft pulley (E)
    6. Adjusting pulley (F)
      Fig 4: Identifying Adjusting, Rear Camshaft, Water Pump, Front Camshaft, Idler, Drive Pulleys And Timing Belt
      G08078652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Tighten the idler pulley bolt.
    Fig 5: Idler Pulley Bolt With Torque Specifications
    G08078653Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the battery clamp bolt from the back cover.

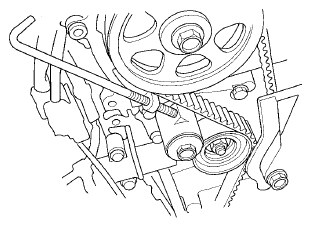

    Fig 6: Holding Timing Belt Adjuster Using Battery Clamp Bolt
    G08078654Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the lower half of the side engine mount bracket using new bolts (A) and bolt (B).

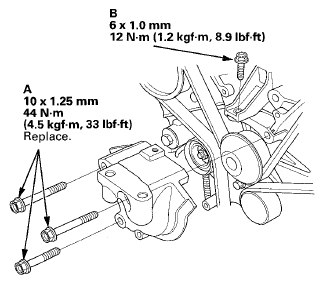

    Fig 7: Side Engine Mount Bracket Bolts With Torque Specifications
    G08078655Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the timing belt guide plate (A) as shown in illustration.
    Fig 8: Identifying Timing Belt Guide Plate
    G08078656Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the lower cover.

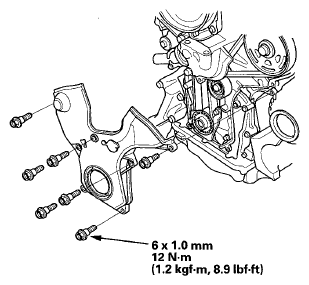

    Fig 9: Lower Cover And Bolts With Torque Specifications
    G08078657Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the front upper cover (A) and the rear upper cover (B).

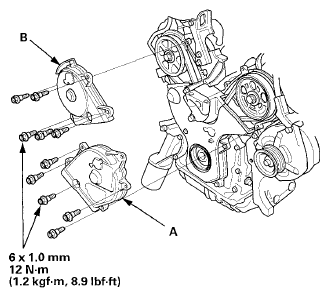

    Fig 10: Front And Rear Upper Cover With Torque Specifications
    G08078658Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION  ).
  14. Rotate the crankshaft pulley about six turns clockwise so the timing belt positions itself on the pulleys.
  15. Turn the crankshaft pulley so its white mark (A) lines up with the pointer (B).
    NOTE: The other pointer (C) is not used.
    Fig 11: Identifying White Mark Lines Up With Pointer On Crankshaft Pulley
    G08078659Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Check the camshaft pulley marks.
    NOTE: If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark.
    • If the camshaft pulley marks are at TDC, go to step 17.
    • If the camshaft pulley marks are not at TDC, remove the timing belt and repeat steps  2 through 16.

    FRONT

    Fig 12: Identifying Alignment Marks Of Camshaft Pulley (Front)
    G08078660Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

    Fig 13: Identifying Alignment Marks Of Camshaft Pulley (Rear)
    G08078661Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Loosely install the upper half of the side engine mount bracket (A), using new bolts.

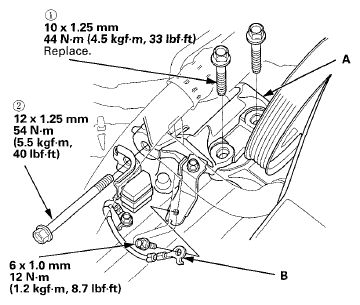

    Fig 14: Side Engine Mount Bracket And Cable Mount With Torque Specifications
    G08078662Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Install the ground cable (B).
  19. Remove the jack and the wood block.
  20. Tighten the mounting bolts in the numbered sequence shown in illustration.
  21. Install the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
  22. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
  23. Install the right front wheel.
  24. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
