Air Deflector: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

NOTE: Some parts removed for clarity.

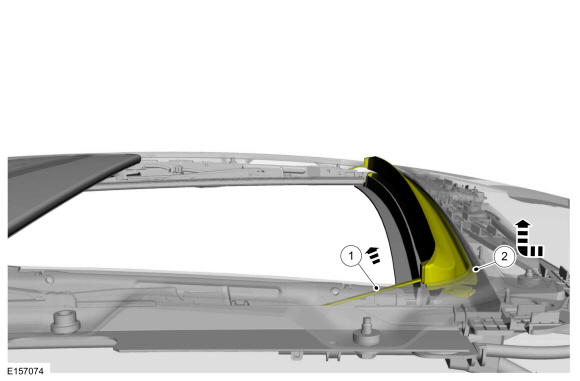

On both sides. Disconnect the air deflector body from the roof opening panel frame.
1. 1.

  Lift up the air deflector arm.
1. 2.

  Slide the air deflector body rearward and up to disconnect the air deflector body.

Courtesy of FORD MOTOR COMPANY

3.

Remove the air deflector assembly.
1. 1.

  Tilt the air deflector assembly upward.
1. 2.

  Pull forward to remove air deflector assembly.

Courtesy of FORD MOTOR COMPANY
