DTC B280A-87: No Signal From the Rear Safing Sensor (2014-15)

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed. Refer to: SRS Component Replacement/Inspection After Deployment
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .
• Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   B280A-87 No signal from the rear safing sensor

   Is DTC B280A-87 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

2. Connector connection check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Check the following connector connections.

   SRS unit connector B (39P)

   Rear safing sensor 2P connector (on the right side wire harness)

   Are the connectors OK?

   YES

   Go to step 4.

   NO

   Go to step 3.

3. System check

   -1. Repair the poor connector connections whichever was the cause of the problem in step 2.

   - 2. Clear the DTCs with the HDS.

   - 3. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC
   B280A-87 No signal from the rear safing sensor

   Is DTC B280A-87 indicated?

   YES

   Turn the vehicle to the OFF (LOCK) mode, then go to step 4.

   NO

   The system is OK at this time.

4. Shorted wire check (SSS+ line to SSS- line)

   -1. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   - 2. Disconnect the following connectors:

   SRS unit connector B (39P)

   Rear safing sensor 2P connector (on the right side wire harness)

   - 3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	SRS unit connector B (39P): disconnected
   	Rear safing sensor 2P connector (on the right side wire harness): disconnected

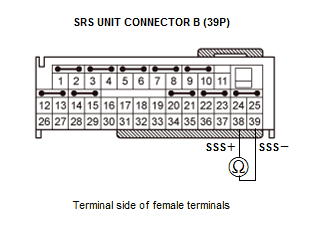

   Test circuit	SSS+, SSS-
   Test point 1	SRS unit connector B (39P) No. 38
   Test point 2	SRS unit connector B (39P) No. 39

   Courtesy of HONDA, U.S.A., INC.

   Is there an open circuit, or at least 1 MΩ?

   YES

   The SSS+ and SSS- wires are not shorted. Go to step 5.

   NO

   Short to another wire in the right side wire harness; replace the right side wire harness, then clear the DTC.

5. Shorted wire check (SSS+, SSS- lines)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	SRS unit connector B (39P): disconnected
   	Rear safing sensor 2P connector (on the right side wire harness): disconnected

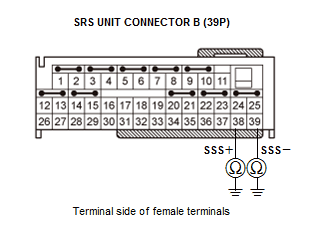

   Test circuit	SSS+
   Test point 1	SRS unit connector B (39P) No. 38
   Test point 2	Body ground

   Test circuit	SSS-
   Test point 1	SRS unit connector B (39P) No. 39
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there an open circuit, or at least 1 MΩ?

   YES

   The SSS+ and SSS- wires are not shorted. Go to step 6.

   NO

   Short to ground in the right side wire harness; replace the right side wire harness, then clear the DTC.

6. Shorted wire check (SSS+, SSS- lines to power)

   -1. Reconnect the negative cable to the 12 volt battery.

   - 2. Turn the vehicle to the ON mode.

   - 3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	SRS unit connector B (39P): disconnected
   	Rear safing sensor 2P connector (on the right side wire harness): disconnected

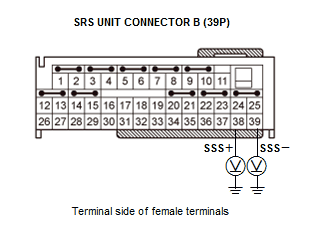

   Test circuit	SSS+
   Test point 1	SRS unit connector B (39P) No. 38
   Test point 2	Body ground

   Test circuit	SSS-
   Test point 1	SRS unit connector B (39P) No. 39
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 0.2 V or less?

   YES

   The SSS+ and SSS- wires are not shorted to power. Go to step 7.

   NO

   Short to power in the right side wire harness; replace the right side wire harness, then clear the DTC.

7. Open wire check (SSS+, SSS- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

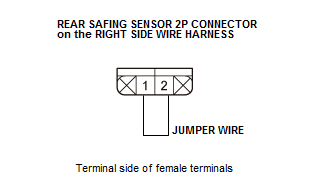

   - 2. Connect terminals A and B with a jumper wire.

   Terminal A	Rear safing sensor 2P connector No. 1 (on the right side wire harness)
   Terminal B	Rear safing sensor 2P connector No. 2 (on the right side wire harness)

   Courtesy of HONDA, U.S.A., INC.

   - 3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	SRS unit connector B (39P): disconnected
   	Rear safing sensor 2P connector (on the right side wire harness): disconnected
   	Rear safing sensor 2P connector terminals No. 1 and No. 2 (on the right side wire harness): jumped
   Test circuit	SSS+, SSS-
   Test point 1	SRS unit connector B (39P) No. 38
   Test point 2	SRS unit connector B (39P) No. 39

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The SSS+ and SSS- wires are OK. Replace the rear safing sensor , then clear the DTC, and retest. If the DTC is still present, replace the SRS unit .

   NO

   Open in the right side wire harness; replace the right side wire harness, then clear the DTC.
