DTC B00D5-17: Short to Power in the Front Passenger's Airbag Cutoff Indicator (2014-15)

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed. Refer to: SRS Component Replacement/Inspection After Deployment
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .
• Troubleshoot DTC U3006-13 before doing this troubleshooting procedure.
• Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   B00D5-17 Short to power in the front passenger's airbag cutoff indicator

   Is DTC B00D5-17 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

2. Shorted wire check (OFF PTT line to power)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   - 3. Disconnect the following connectors:

   Front passenger's airbag cutoff indicator 4P connector (on the dashboard wire harness)

   SRS unit connector A (39P)

   - 4. Reconnect the negative cable to the 12 volt battery.

   - 5. Turn the vehicle to the ON mode.

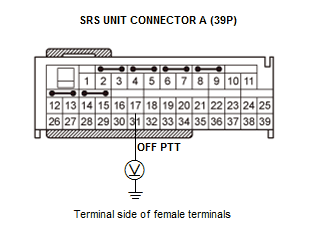

   - 6. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Front passenger's airbag cutoff indicator 4P connector (on the dashboard wire harness): disconnected
   	SRS unit connector A (39P): disconnected
   Test circuit	OFF PTT
   Test point 1	SRS unit connector A (39P) No. 17
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 0.2 V or less?

   YES

   The OFF PTT wire is OK. Replace the front passenger's airbag cutoff indicator , then clear the DTC, and retest. If the DTC is still present, replace the SRS unit .

   NO

   Short to power in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
