DTC B0072-13: Open or Increased Resistance in the Front Passenger's Seat Belt Tensioner (2017)

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed. Refer to: SRS Component Replacement/Inspection After Deployment
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   B0072-13 Open or increased resistance in the front passenger's seat belt tensioner

   Is DTC B0072-13 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

2. Front passenger's seat belt tensioner check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   - 3. Remove the right side B-pillar lower trim.

   - 4. Disconnect the following connector:

   Front passenger's seat belt tensioner 2P connector (on the right side wire harness)

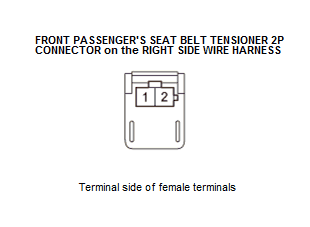

   - 5. Connect terminals A and B with a jumper wire.

   Terminal A	Front passenger's seat belt tensioner 2P connector No. 1 (on the right side wire harness)
   Terminal B	Front passenger's seat belt tensioner 2P connector No. 2 (on the right side wire harness)

   Courtesy of HONDA, U.S.A., INC.

   - 6. Reconnect the negative cable to the 12 volt battery.

   - 7. Clear the DTCs with the HDS.

   - 8. Turn the vehicle to the ON mode, then wait for 10 seconds.

   - 9. Check for DTCs with the HDS.

   DTC Description	DTC
   B0072-13 Open or increased resistance in the front passenger's seat belt tensioner

   Is DTC B0072-13 indicated?

   YES

   Go to step 3.

   NO

   Faulty front passenger's seat belt tensioner; replace the front passenger's seat belt , then clear the DTC.

3. Open wire check (RRP+, RRP- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   - 3. Remove the jumper wire from the front passenger's seat belt tensioner 2P connector on the right side wire harness.

   - 4. Disconnect the following connector:

   SRS unit connector B (39P)

   - 5. Connect terminals A and B with a jumper wire.

   Terminal A	SRS unit connector B (39P) No. 19 - Refer to: SRS Unit Connector for Inputs and Outputs (2017)
   Terminal B	SRS unit connector B (39P) No. 18 - Refer to: SRS Unit Connector for Inputs and Outputs (2017)

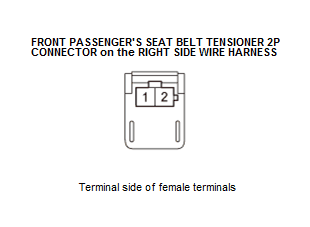

   - 6. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Front passenger's seat belt tensioner 2P connector (on the right side wire harness): disconnected
   	SRS unit connector B (39P): disconnected
   	SRS unit connector B (39P) terminals No. 19 and No. 18: jumped
   Test point 1	Front passenger's seat belt tensioner 2P connector No. 2 (on the right side wire harness)
   Test point 2	Front passenger's seat belt tensioner 2P connector No. 1 (on the right side wire harness)

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The RRP+ and RRP- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, check for any authorized service information related to the DTCs or symptoms you are troubleshooting or replace the SRS unit . If the DTC does not clear, replace the right side wire harness.

   NO

   Open in the right side wire harness; replace the right side wire harness, then clear the DTC.
