DTC B0052-11: Short Or Decreased Resistance In The Front Passenger's Seat Belt Buckle Switch, B0052-2B: Short To Another Wire Harness In The Front Passenger's Seat Belt Buckle Switch (2017)
NOTE:
- BEFORE DOING THIS TROUBLESHOOTING PROCEDURE, FIND OUT IF THE VEHICLE WAS IN A COLLISION. IF SO, VERIFY THAT ALL THE REQUIRED COMPONENTS WERE REPLACED WITH NEW COMPONENTS OF THE CORRECT PART NUMBER AND WERE PROPERLY INSTALLED .
- Before doing this troubleshooting procedure, review SRS PRECAUTIONS AND PROCEDURES and GENERAL TROUBLESHOOTING INFORMATION .
| DTC Description | DTC |
|---|---|
| B0052-11: Short or decreased resistance in the front passenger's seat belt buckle switch | |
| B0052-2B: Short to another wire harness in the front passenger's seat belt buckle switch |
DTC (SRS)
- Problem verification
- 1. Clear the DTCs with the HDS.
- 2. Turn the vehicle to the ON mode, then wait for 10 seconds. Buckle and unbuckle the front passenger's seat belt several times.
- 3. Check for DTCs with the HDS.
DTC Description DTC B0052-11: Short or decreased resistance in the front passenger's seat belt buckle switch B0052-2B: Short to another wire harness in the front passenger's seat belt buckle switch Is DTC B0052-11 or B0052-2B indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.
- Front passenger's seat belt buckle switch check
- 1. Turn the vehicle to the OFF (LOCK) mode.

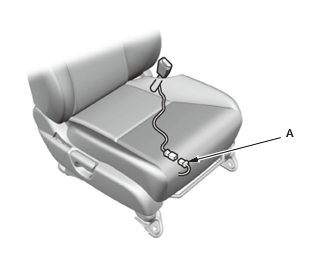

- 2. Disconnect the front passenger's seat belt buckle switch 2P connector (A) on the right side wire harness (without passenger's power seat) or the front passenger's seat wire harness (with passenger's power seat).
- 3. Clear the DTCs with the HDS.
- 4. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 5. Check for DTCs with the HDS.
DTC Description DTC B0052-11: Short or decreased resistance in the front passenger's seat belt buckle switch B0052-2B: Short to another wire harness in the front passenger's seat belt buckle switch Is DTC B0052-11 or B0052-2B indicated?
YES
Short in the front passenger's seat wire harness or the right side wire harness; replace the faulty harness, then clear the DTC.
NO
Faulty front passenger's seat belt buckle switch; REPLACE THE FRONT PASSENGER'S SEAT BELT BUCKLE ASSEMBLY , then clear the DTC.
