Gauges System Description - Overview (2017)

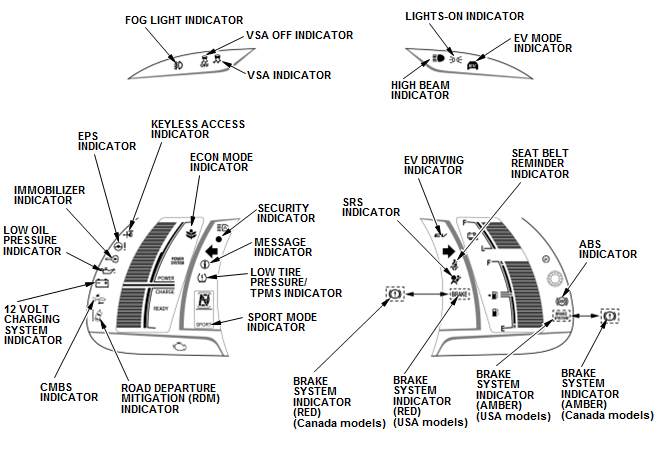

The gauge control module indicates the speedometer, the ECO ambient meter, the fuel gauge, the power/charge gauge, the shift position indicator, the high voltage battery charge level gauge, and several indicators.
Additionally, the gauge control module has a multi-information display which is able to provide information about various vehicle conditions.

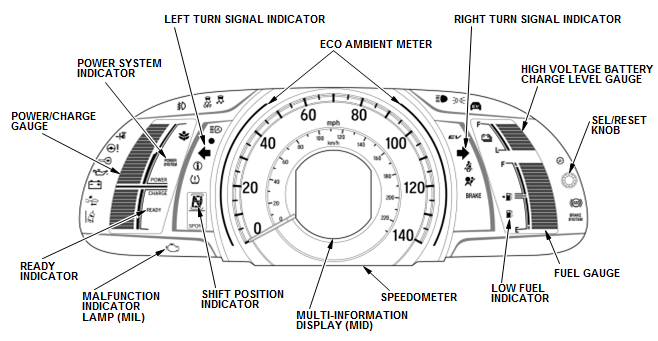

The speedometer and multi-infomation display are located in the center, the power/charge gauge in the left-hand side, and the fuel gauge and high voltage battery charge level gauge in the right-hand side.
