Gauges System Description - Overview (2014 2015)

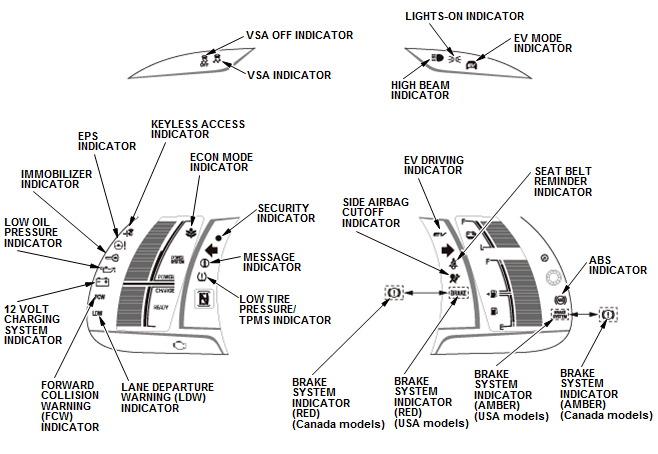

The gauge control module indicates the speedometer, the ECO ambient meter, the fuel gauge, the power/charge gauge, the shift position indicator, the high voltage battery charge level gauge, and the several indicators.
Also, the gauge control module has multi-information display which be able to inform the vehicle of various condition.

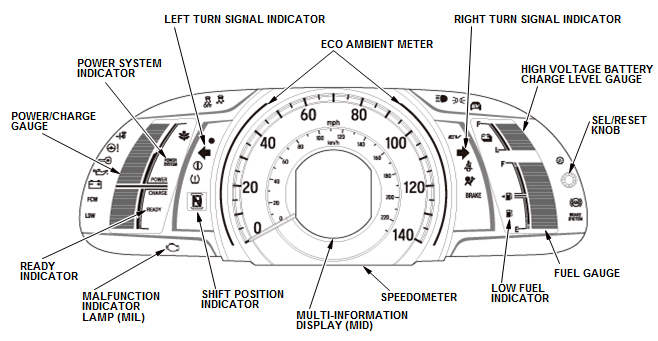

The speed meter and multi-infomation display are located in the center, the power/charge gauge in the left-hand side, and the fuel gauge and high voltage battery charge level gauge in the right-hand side.
