Parking And Back-Up Sensor System Component Location Index (2017)

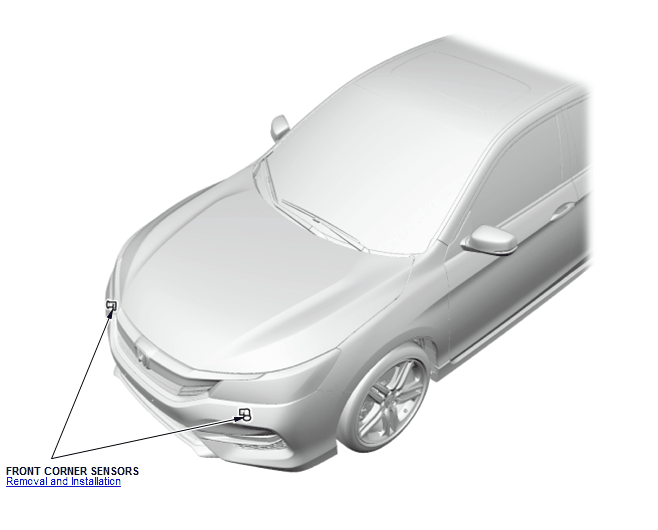

GHH260183

Courtesy of HONDA, U.S.A., INC.

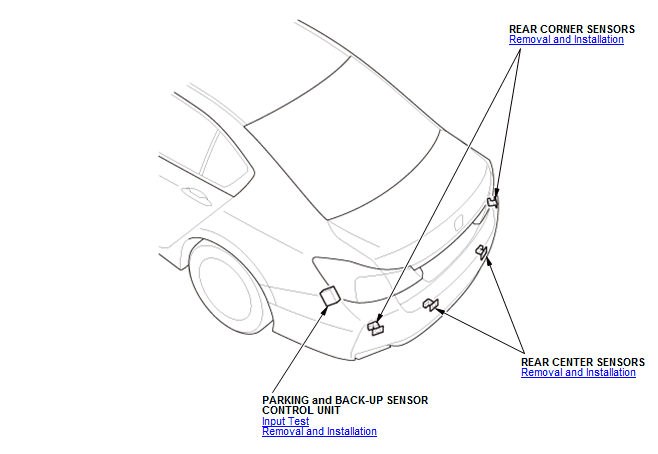

GHH260184

Courtesy of HONDA, U.S.A., INC.

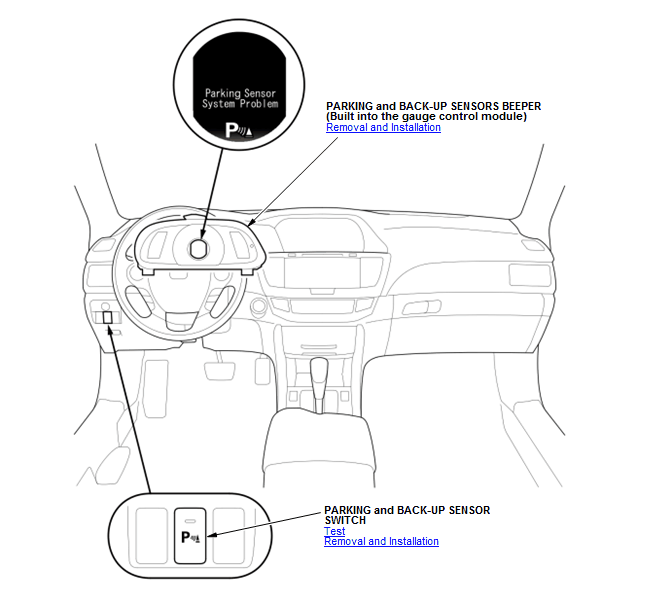

GHH260185

Courtesy of HONDA, U.S.A., INC.
