Gauges Component Location Index

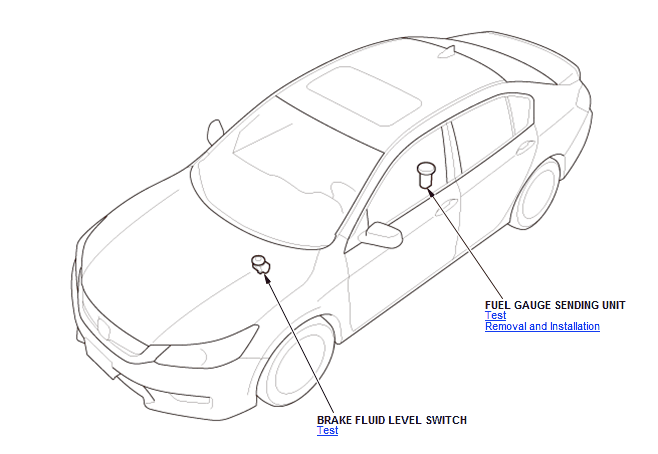

GHH260173Courtesy of HONDA, U.S.A., INC.

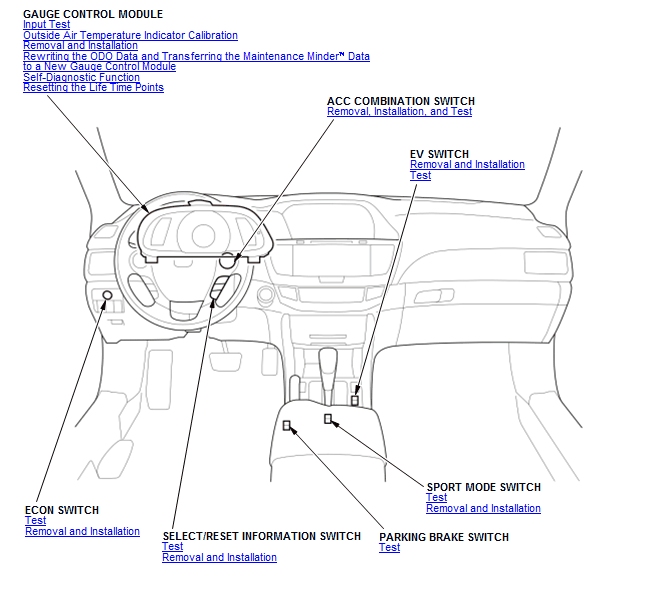

GHH260174Courtesy of HONDA, U.S.A., INC.

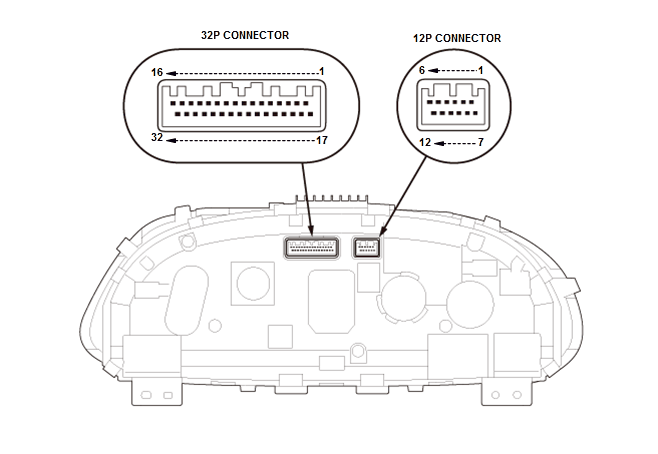

GHH260175Courtesy of HONDA, U.S.A., INC.

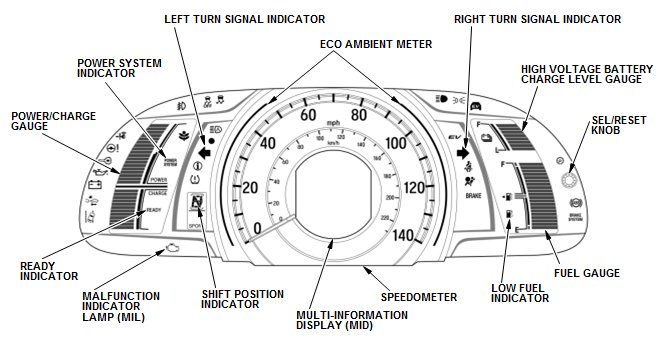

GHH260176Courtesy of HONDA, U.S.A., INC.

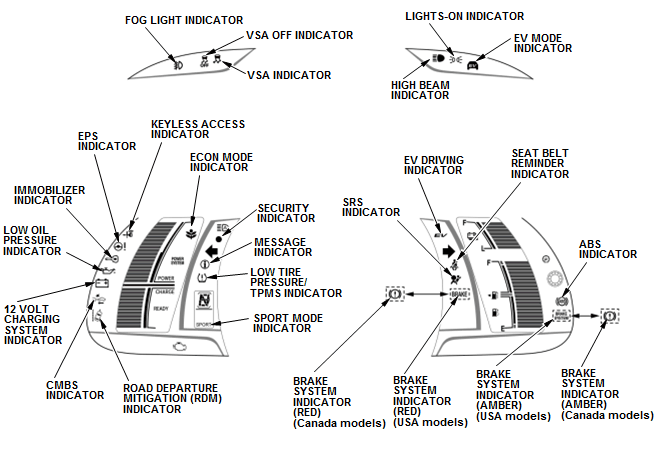

GHH260177Courtesy of HONDA, U.S.A., INC.
