Gauges Component Location Index (2014 2015)

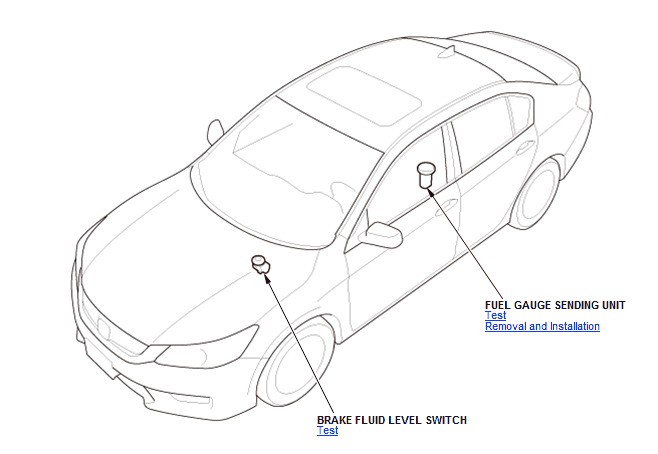

GHH260178

Courtesy of HONDA, U.S.A., INC.

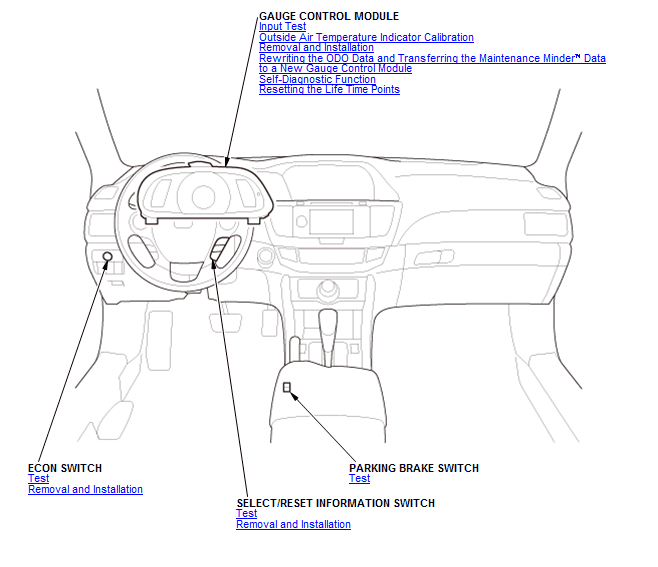

GHH260179

Courtesy of HONDA, U.S.A., INC.

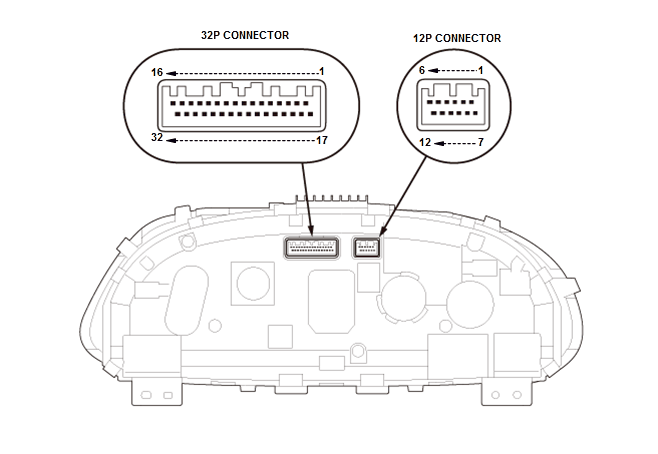

GHH260180

Courtesy of HONDA, U.S.A., INC.

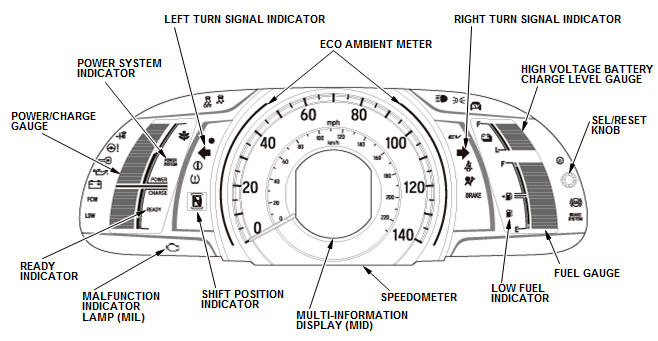

GHH260181

Courtesy of HONDA, U.S.A., INC.

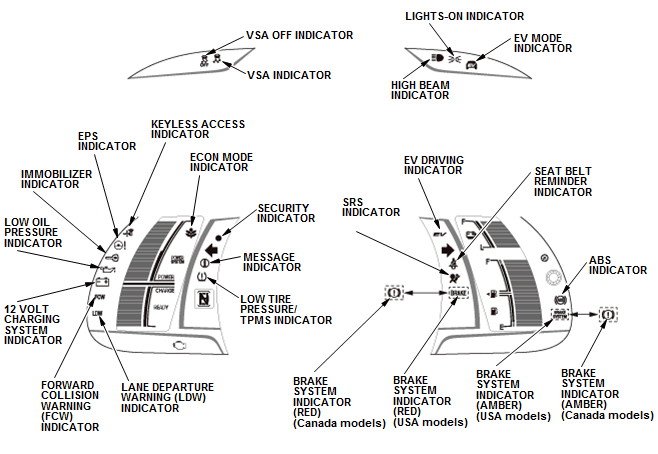

GHH260182

Courtesy of HONDA, U.S.A., INC.
