Circuit Diagram
>>

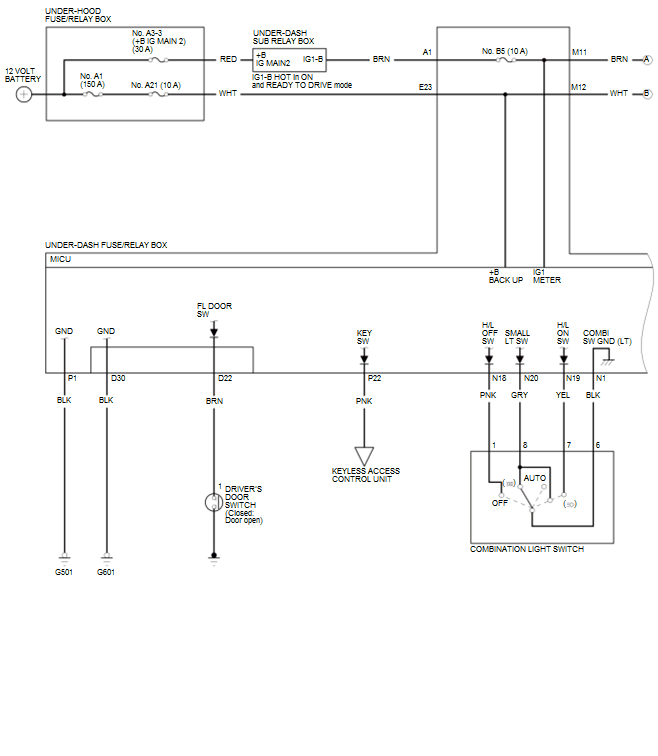

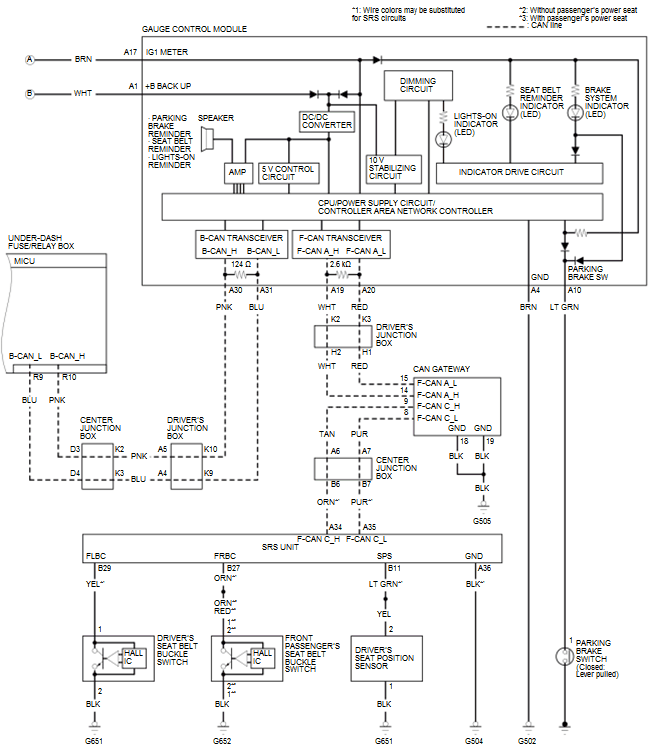

Reminder Systems Circuit Diagram (2017)
Reminder Systems Circuit Diagram (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
