Circuit Diagram
>>

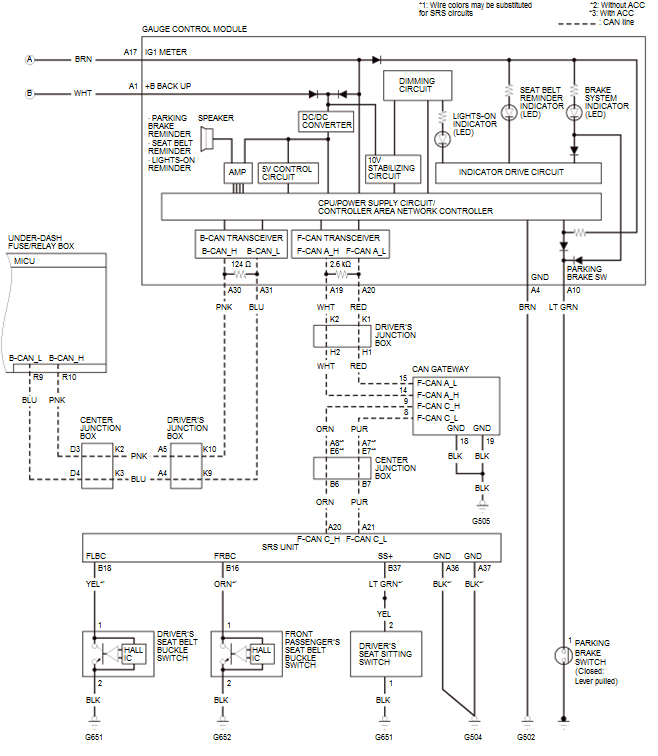

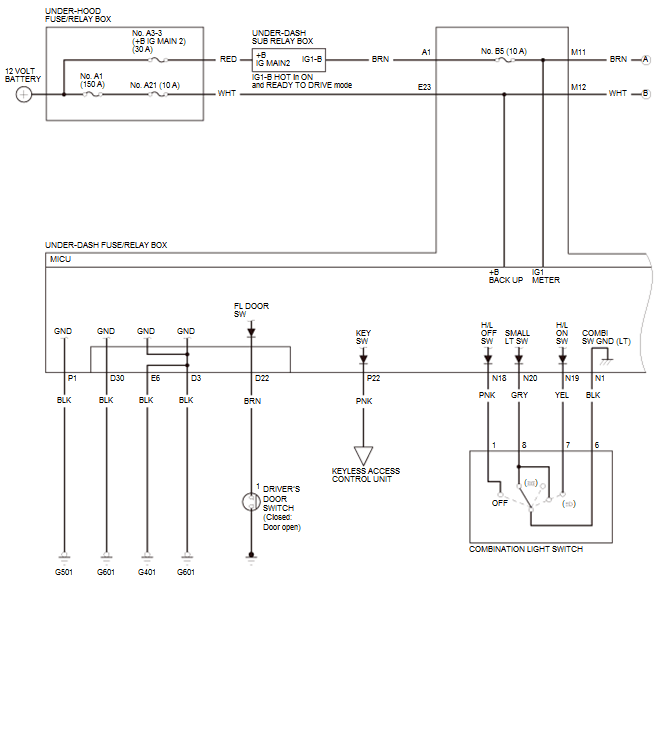

Reminder Systems Circuit Diagram (2014 2015)
Reminder Systems Circuit Diagram (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
