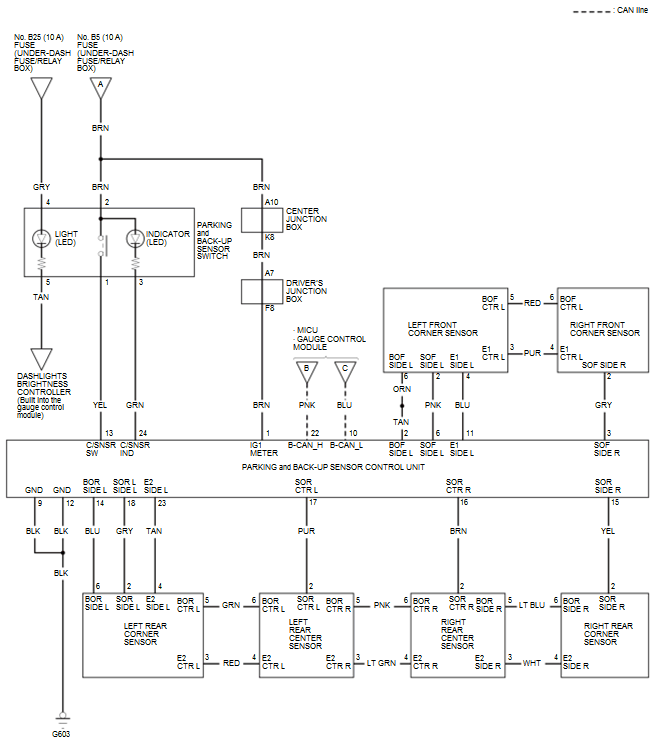

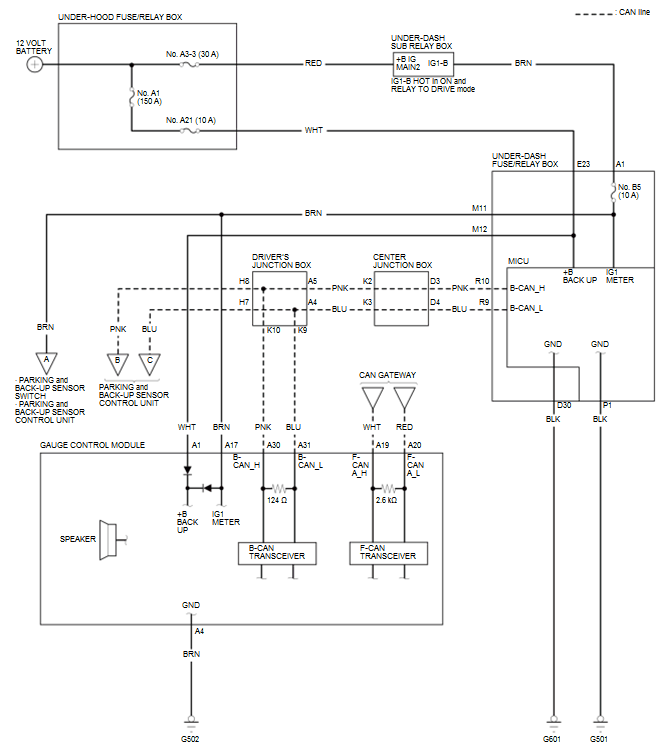

Parking And Back-Up Sensor System Circuit Diagram (2017)
Parking And Back-Up Sensor System Circuit Diagram (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
