Gauges Circuit Diagram (2017)

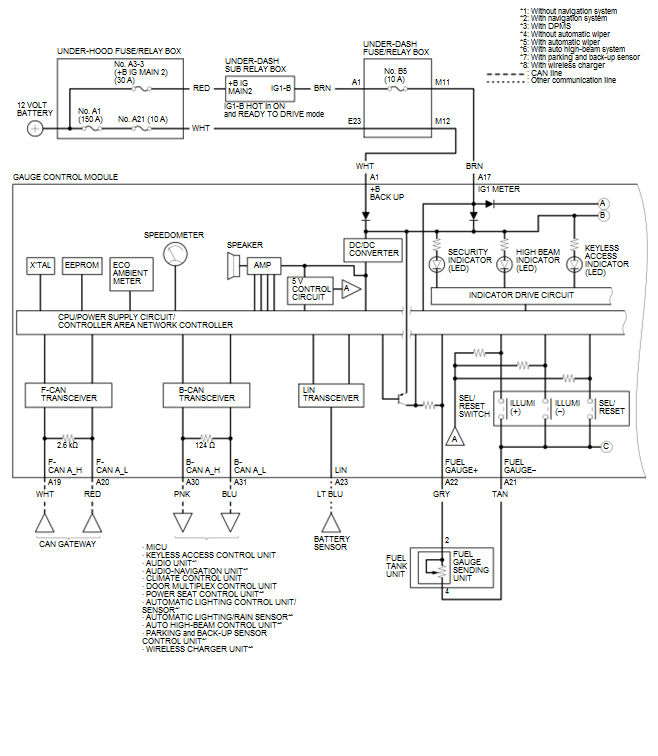

GHH260251Courtesy of HONDA, U.S.A., INC.

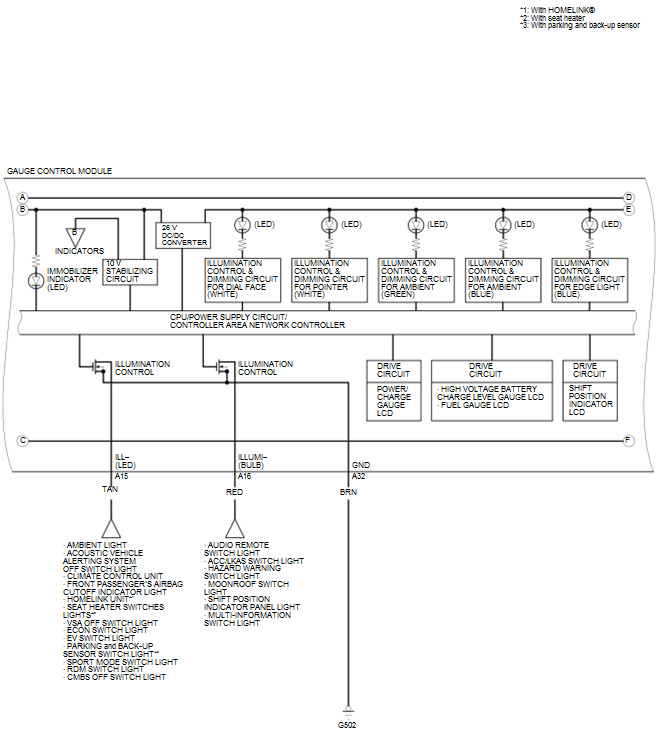

GHH260252Courtesy of HONDA, U.S.A., INC.

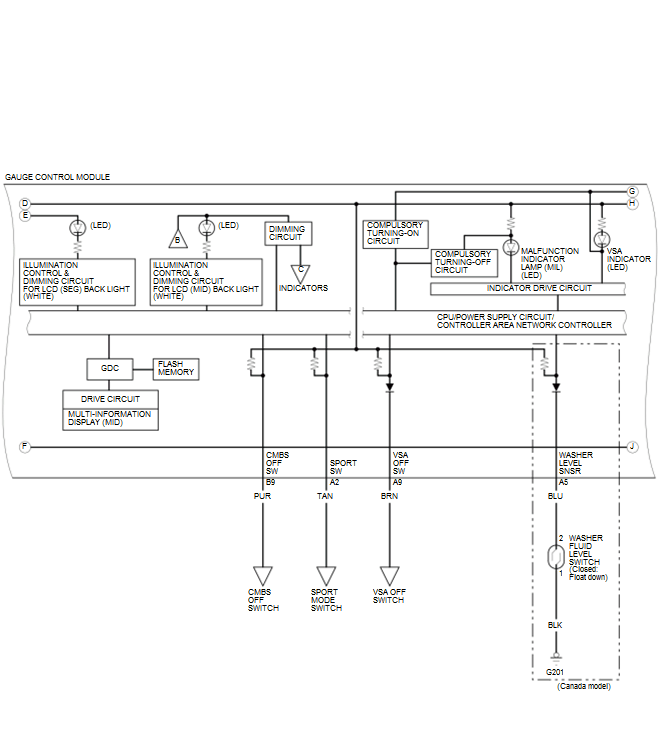

GHH260253Courtesy of HONDA, U.S.A., INC.

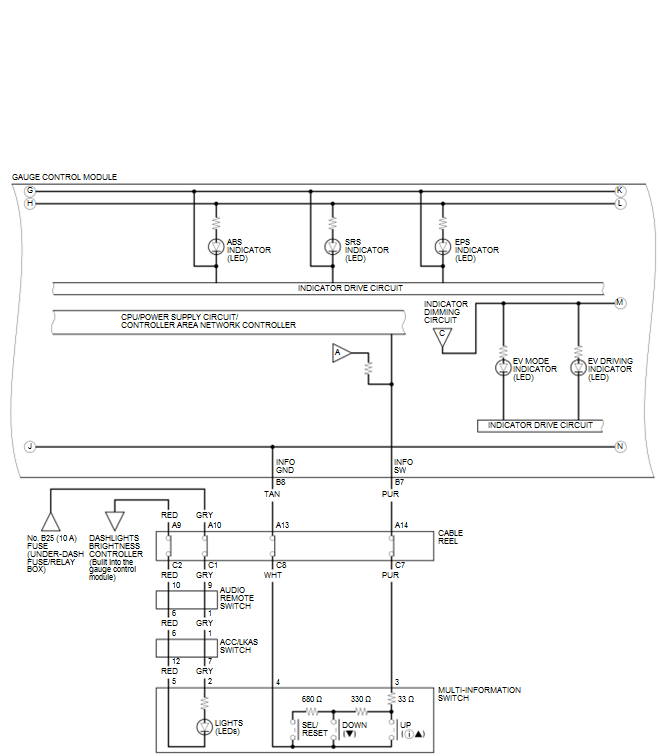

GHH260254Courtesy of HONDA, U.S.A., INC.

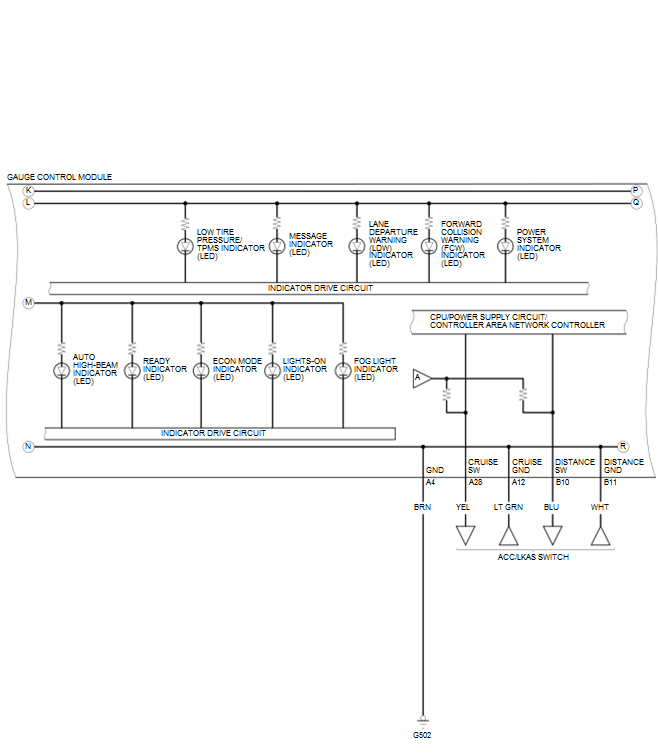

GHH260255Courtesy of HONDA, U.S.A., INC.

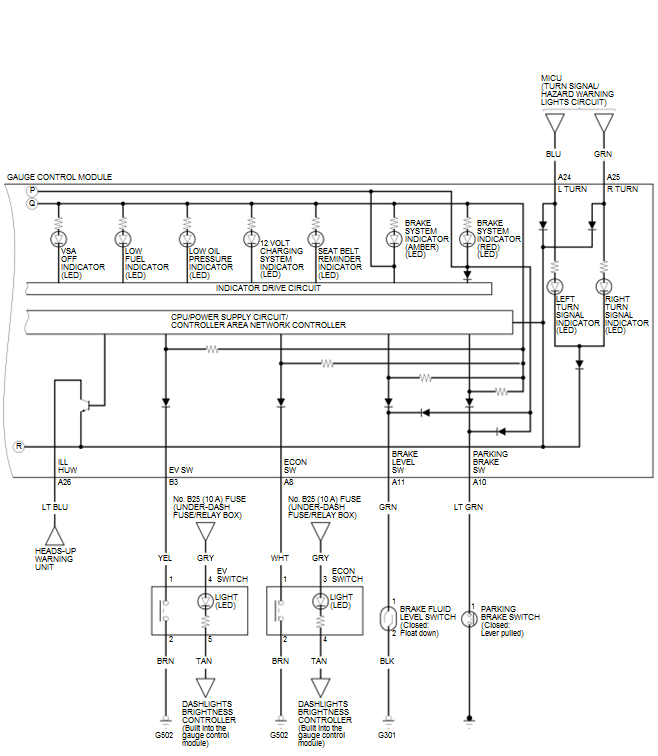

GHH260256Courtesy of HONDA, U.S.A., INC.
