Gauges Circuit Diagram (2015)

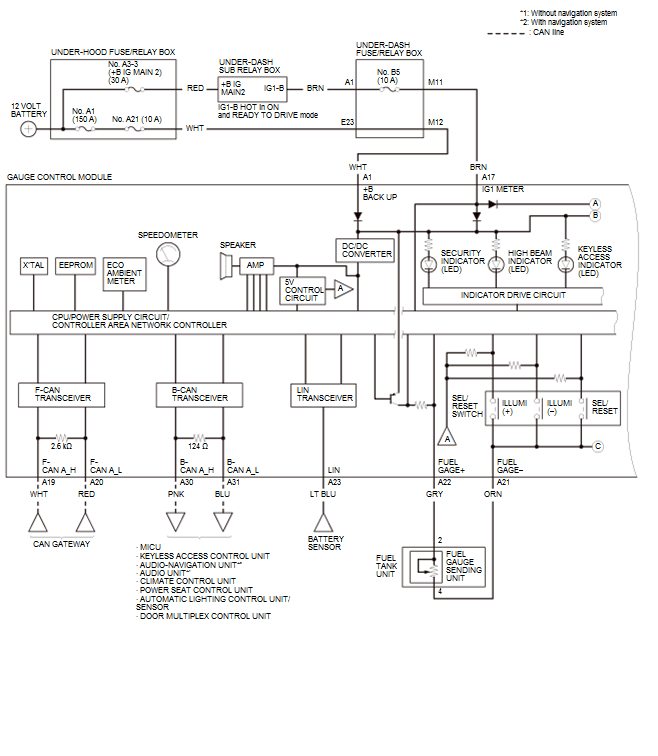

GHH260245Courtesy of HONDA, U.S.A., INC.

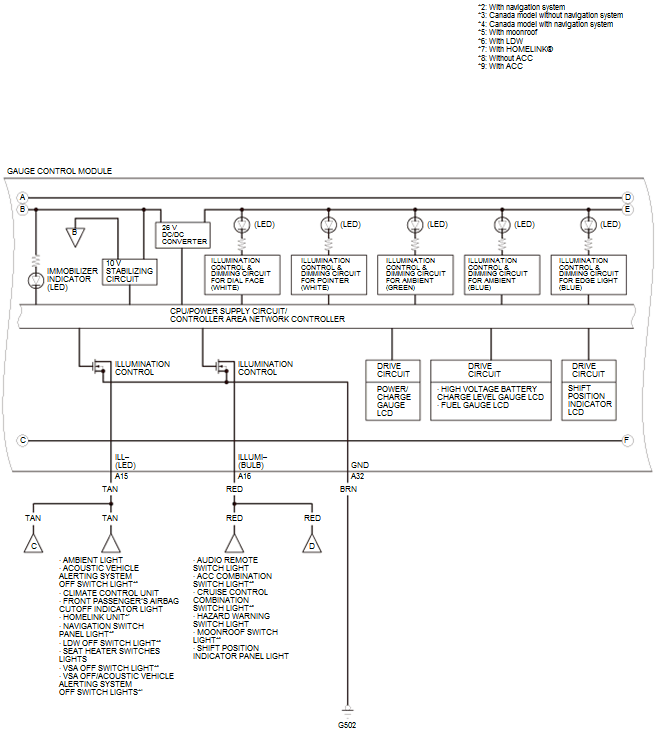

GHH260246Courtesy of HONDA, U.S.A., INC.

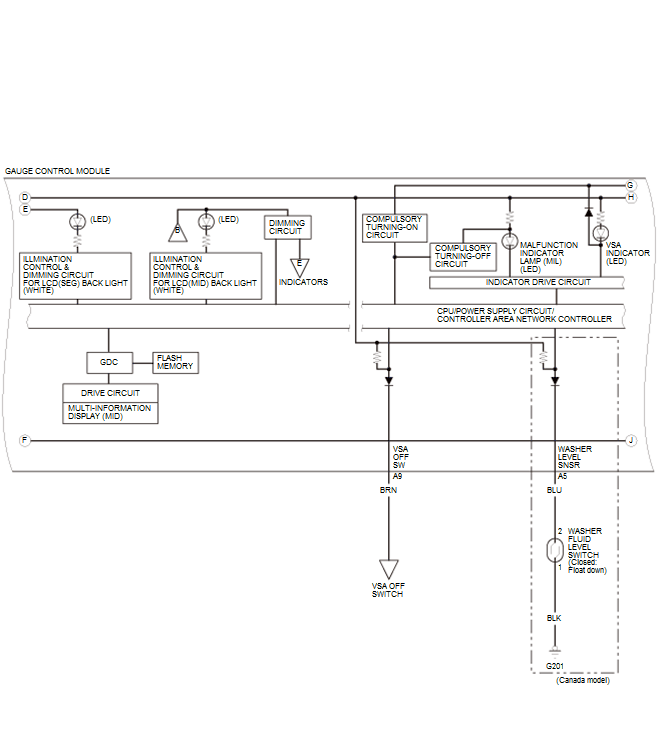

GHH260247Courtesy of HONDA, U.S.A., INC.

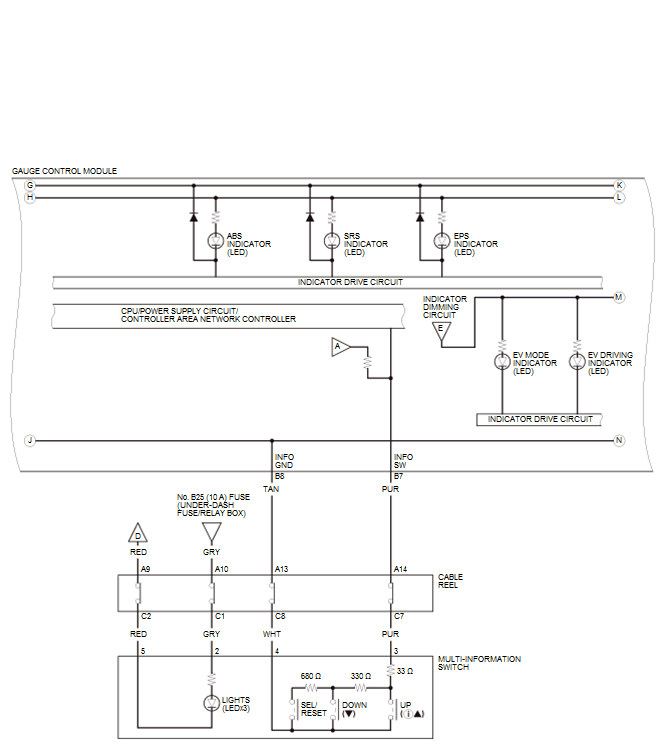

GHH260248Courtesy of HONDA, U.S.A., INC.

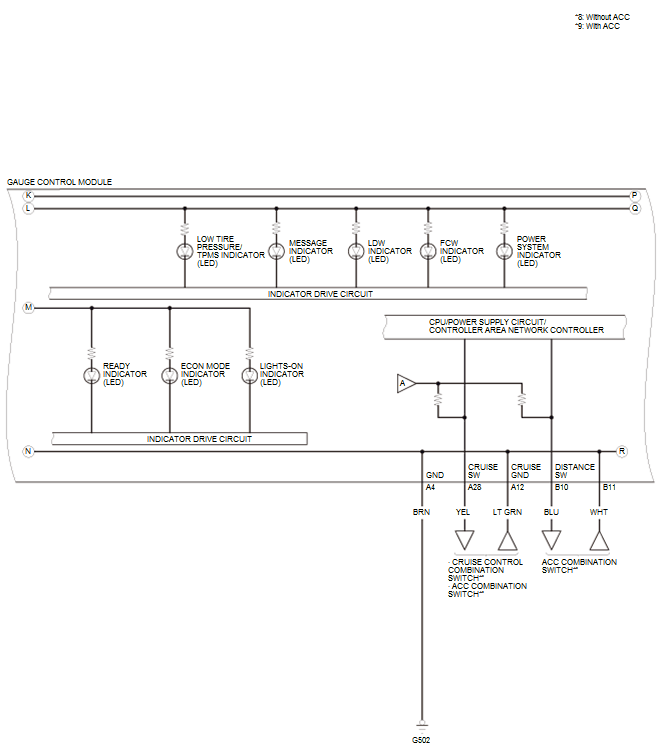

GHH260249Courtesy of HONDA, U.S.A., INC.

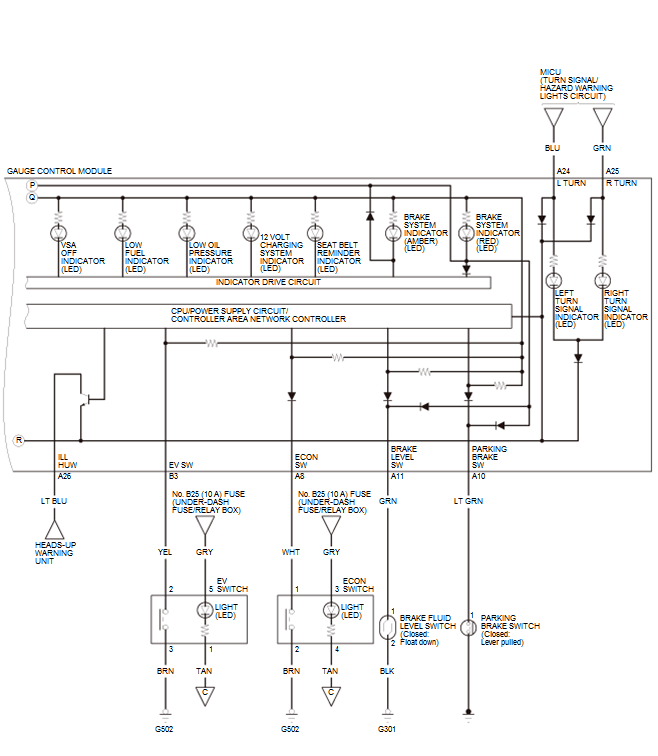

GHH260250Courtesy of HONDA, U.S.A., INC.
