Gauges Circuit Diagram (2014)

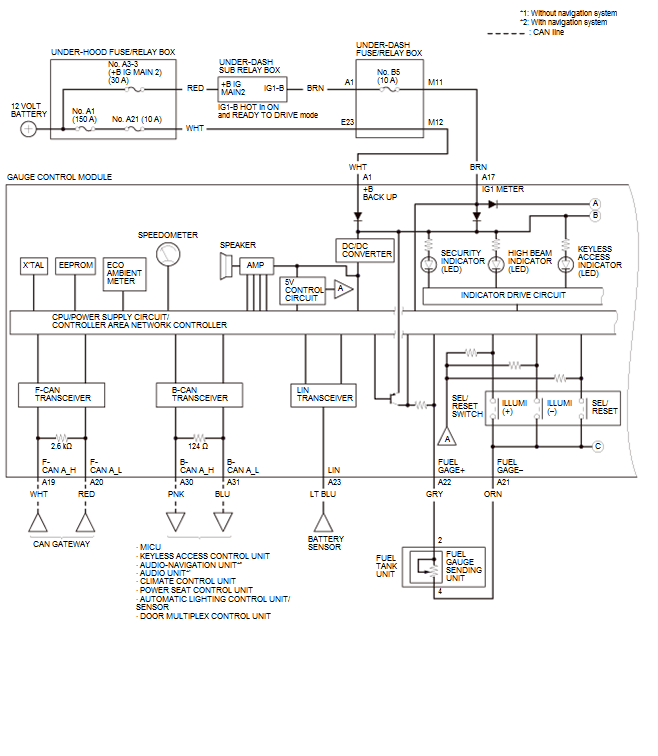

GHH260239Courtesy of HONDA, U.S.A., INC.

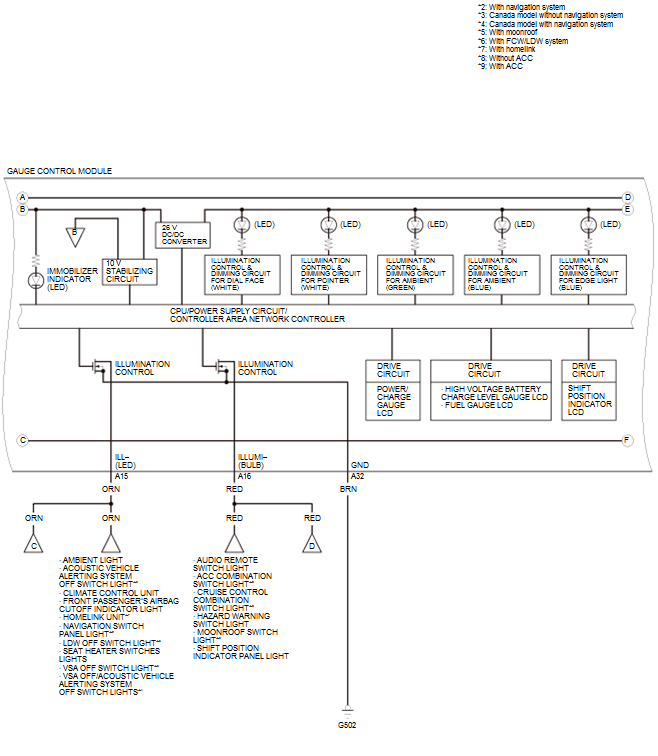

GHH260240Courtesy of HONDA, U.S.A., INC.

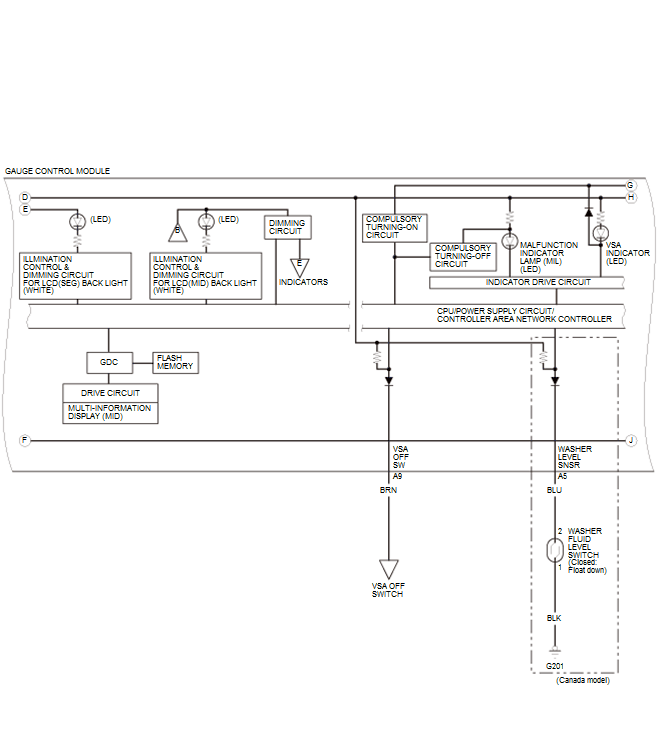

GHH260241Courtesy of HONDA, U.S.A., INC.

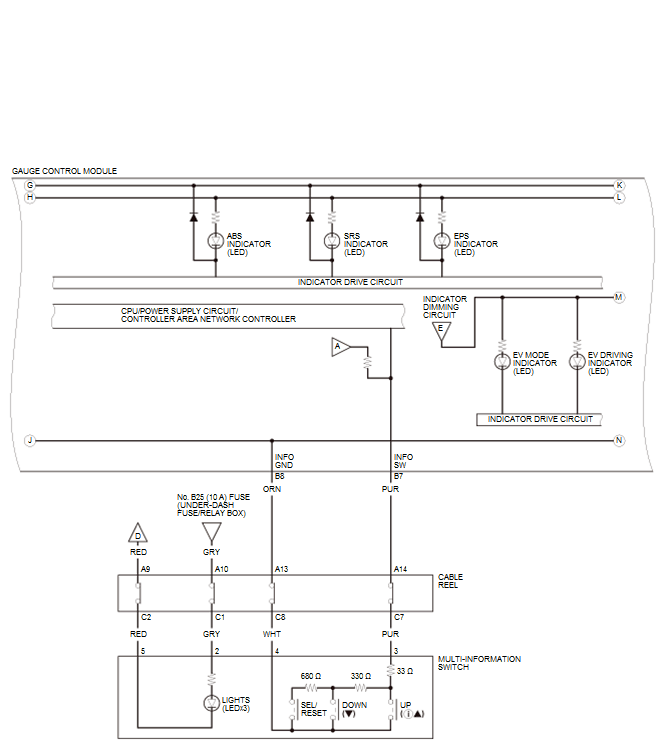

GHH260242Courtesy of HONDA, U.S.A., INC.

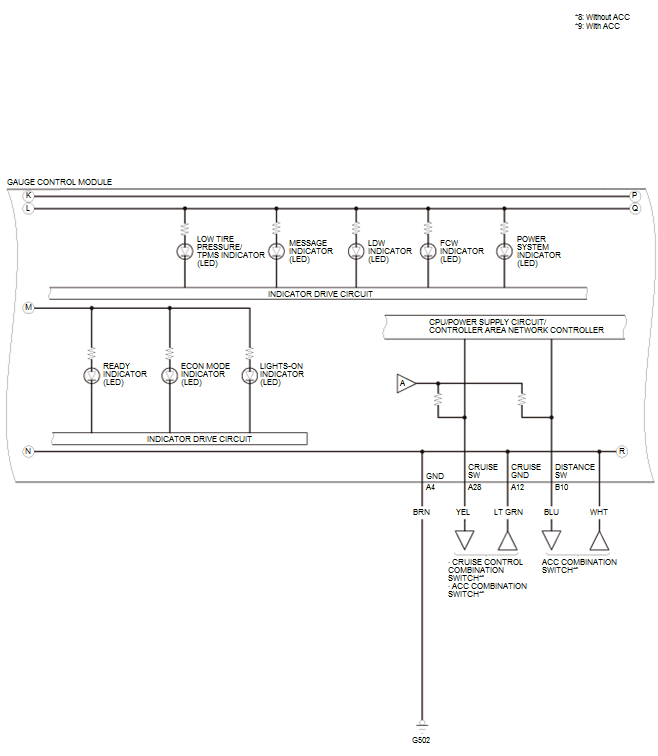

GHH260243Courtesy of HONDA, U.S.A., INC.

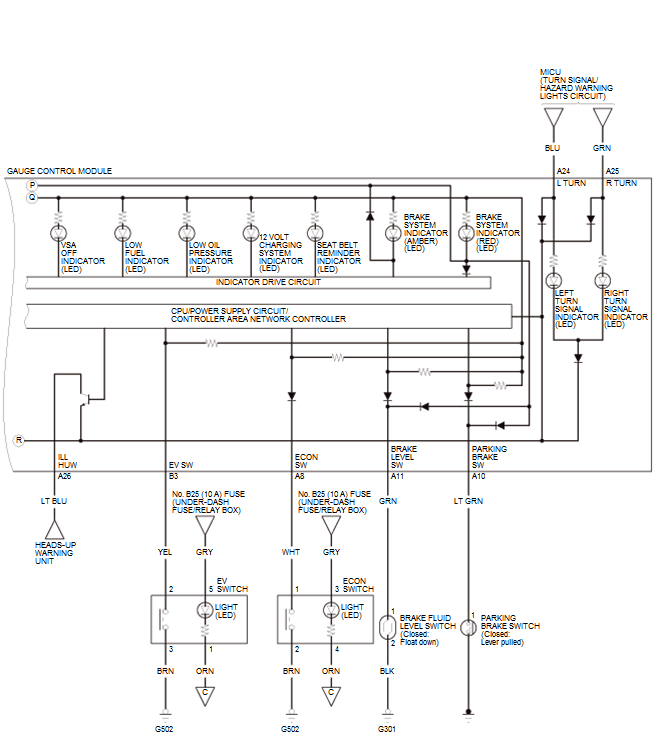

GHH260244Courtesy of HONDA, U.S.A., INC.
