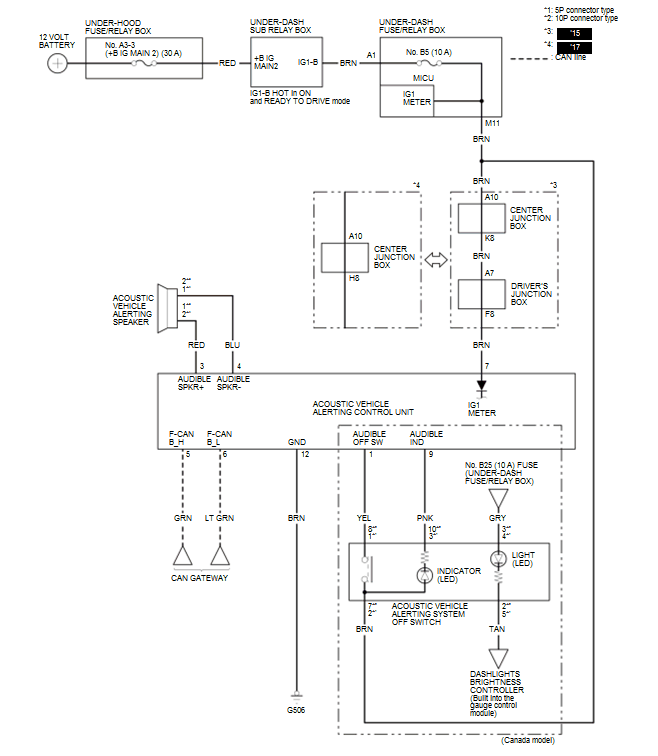

Acoustic Vehicle Alerting System Circuit Diagram (2015 2017)

GHH260238

Courtesy of HONDA, U.S.A., INC.
