Thermostat Housing Removal and Installation: Installation

Install the new rubber seal (A) on the thermostat, then install the thermostat (B) with the pin (C) up, and install the thermostat cover (D).

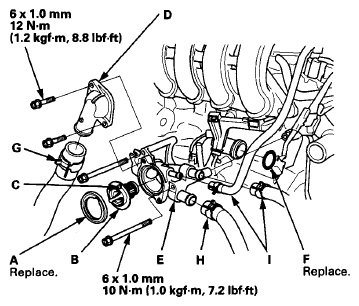

Fig 1: Lower Radiator, Heater And Water Bypass Hoses And Thermostat Housing Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the thermostat housing assembly (E) with a new O-ring (F).
Connect the lower radiator hose (G), the heater hose (H), and the water bypass hoses (I).
Install the harness holder.

Fig 2: Remove/Install Harness Holder From Intake Manifold
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir.

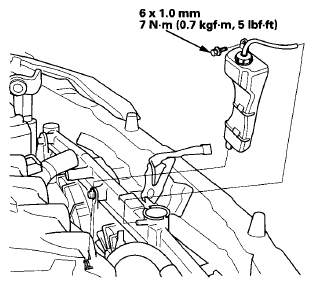

Fig 3: Coolant Reservoir And Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the radiator with engine coolant, then bleed the air from the cooling system (see step 8 on ).
Clean up any spilled engine coolant.
