Eco Guide Feedback Monitor on the Multi-Information Display

Pressing the ECON button causes the ECON indicator ON/OFF to appear for 6 seconds in the multi-information display, indicating which ECON mode is entered into the multi-information display, and the Eco indicator in the gauge control module displays on/off when the ECON mode is turned from OFF(ON) to ON(OFF).

Then the multi-information display screen returns to the previous screen. Turning the ignition switch to LOCK (0) displays the Eco score (Eco drive profile data) and the Eco stage indicator (Lifetime Points) for 6 seconds.

NOTE: The Eco score and the Eco stage indicator are not displayed unless the vehicle has been idle for 3 minutes or driven at least 218 yards.

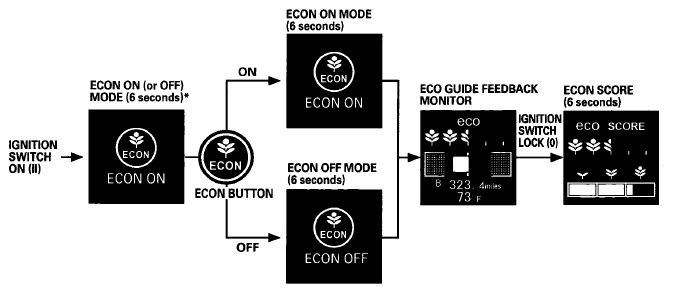

Fig 1: Screen Display - Multi-Information Display (MID)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

*: There will be an indication of ECON MODE ON or OFF appeared same at the mode when IG switch was to LOCK (0) last time.
