ECON Switch Test/Replacement

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the two screws and the ECON switch (A).

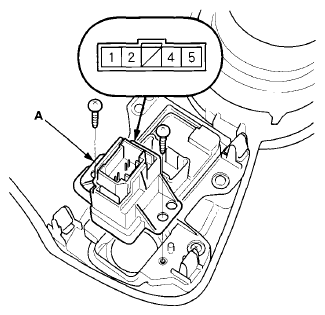

Fig 1: Identifying ECON Switch And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: ECON Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (A) or bulb (B).

Fig 3: Identifying Switch And Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
