Final Drive Shaft Bearing Removal/Installation

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 72 x 75 mm 07746-0010600

1. Remove the final drive shaft bearing (A) using the 25-40 mm adjustable bearing puller and a commercially available 3/8"-16 UNF slide hammer (B).
   Fig 1: Removing Final Drive Shaft Bearing Using 25-40 mm Adjustable Bearing Puller And Commercially Available 3/8"-16 UNF Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the final drive shaft bearing for wear or damage, and replace it if necessary.
3. Install the final drive shaft bearing (A) into the transmission housing using the 15 x 135L driver handle and the 72 x 75 mm bearing driver attachment.

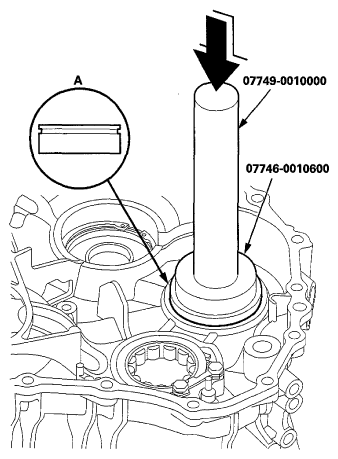

   Fig 2: Installing Final Drive Shaft Bearing Into Transmission Housing Using 15 x 135L Driver Handle And 72 x 75 mm Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
