CVTF Pump Sprocket/Chain Removal/Installation

Special Tools Required

Snap Ring Pliers 07LGC-0010100

1. Expand the snap ring (A) under the CVTF pump sprocket (B) using snap ring pliers, and remove the CVTF pump sprocket from the CVTF pump.

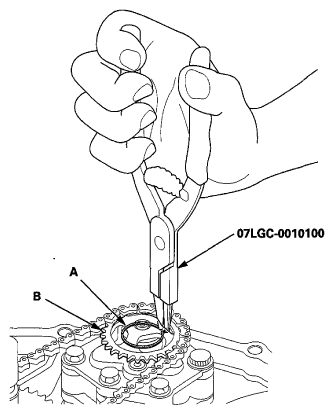

   Fig 1: Removing CVTF Pump Sprocket From CVTF Pump

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the CVTF pump drive chain (A).

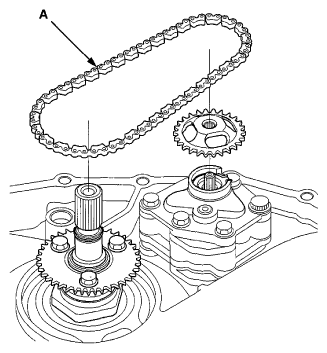

   Fig 2: Locating CVTF Pump Drive Chain

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check the CVTF pump sprocket and the CVTF pump drive chain for wear or damage, and replace them if necessary.
4. Install the CVTF pump drive chain and the CVTF pump sprocket.
5. After installing the CVTF pump sprocket, check that the snap ring is seated in the CVTF pump sprocket and the CVTF pump housing groove.
