Inhibitor Solenoid Removal/Installation

  1. Disconnect the inhibitor solenoid 2P connector (A).

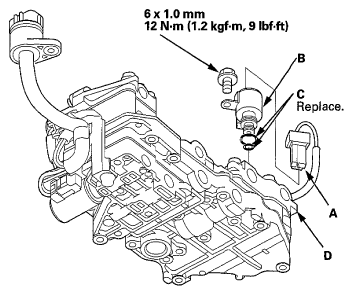

    Fig 1: Locating Inhibitor Solenoid 2P Connector, Inhibitor Solenoid And O-Rings With Torque Specifications
    G06951202Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the inhibitor solenoid (B), then remove the O-rings (C) from the inhibitor solenoid.
  3. Install the two O-rings on the inhibitor solenoid, then install the inhibitor solenoid on the CVT driven pulley pressure control solenoid valve (D).
  4. Connect the inhibitor solenoid 2P connector.
