Circuit Diagram
Circuit Diagram

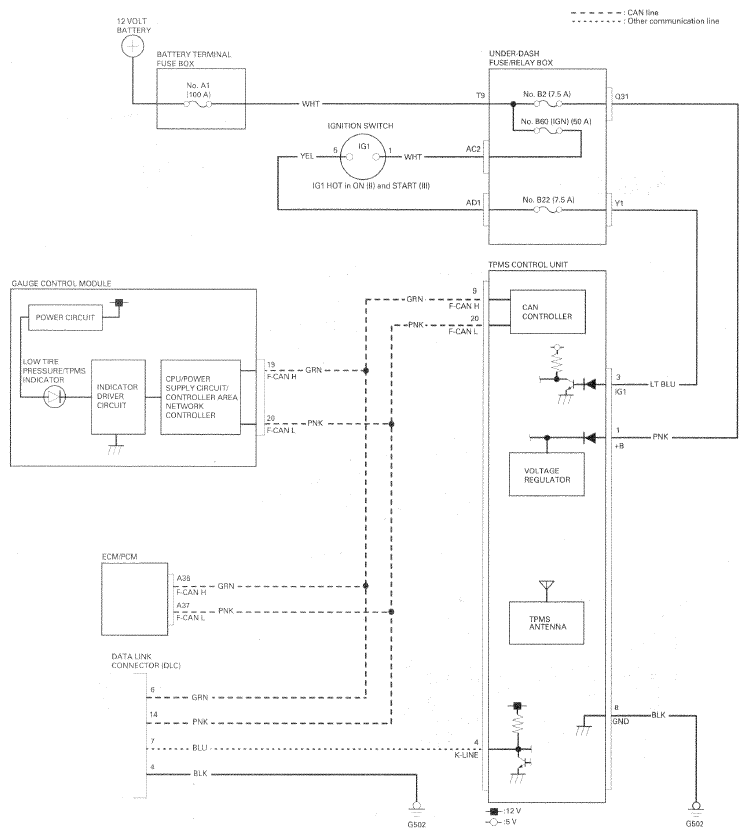

Fig 1: TPMS - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

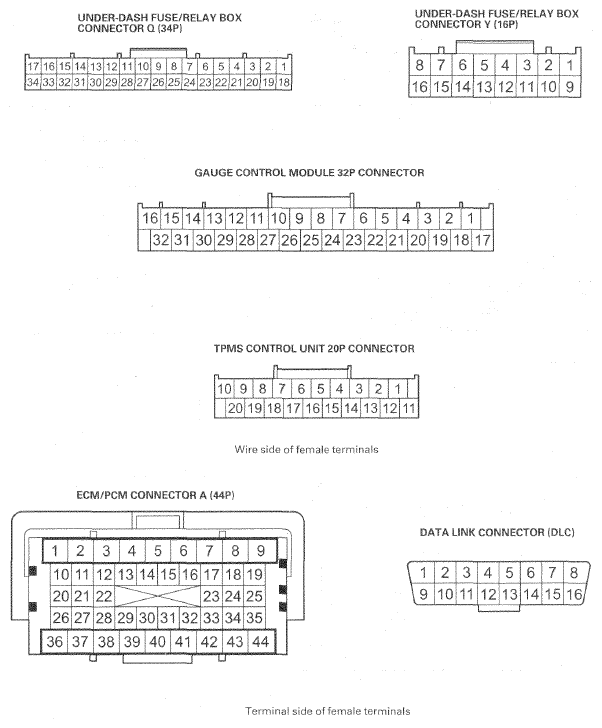

Fig 2: Identifying TPMS Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
