Wheel Bearing End Play Inspection

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the wheels.
Install suitable flat washers (A) and the wheel nuts. Tighten the nuts to the specified torque to hold the brake disc securely against the hub.
Front

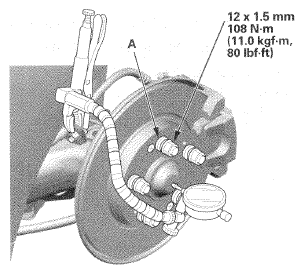

Fig 1: Flat Washer With Wheel Nuts With Torque Specifications (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

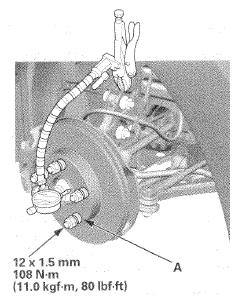

Fig 2: Flat Washer With Wheel Nuts With Torque Specifications (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the dial gauge. Place the dial gauge against the hub flange.
Measure the bearing end play while moving the brake disc inward and outward.
Wheel bearing end play:

Front/Rear: 0-0.05 mm (0-0.0020 in)
If the bearing end play measurement is more than the standard, replace the wheel bearing or the hub bearing unit.
