Steering Linkage and Gearbox Inspection

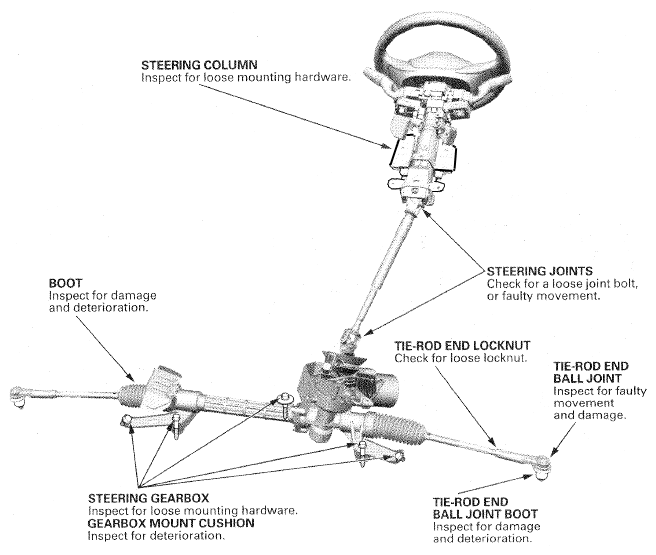

Fig 1: Identifying Steering Linkage And Gearbox

G06952844

Courtesy of AMERICAN HONDA MOTOR CO., INC.
