DTC 61-04: Motor Harness Malfunction
- Turn the ignition switch to ON (II).
- Clear the DTC with the HDS.
- Turn the ignition switch to LOCK (0).
- Start the engine.
- Check for DTCs with the HDS.
Is DTC 61-04 indicated?
YES -Go to step 6.
NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the EPS control unit.
- Turn the ignition switch to LOCK (0).
- Disconnect EPS control unit connector B (16P) (see step 3 ).

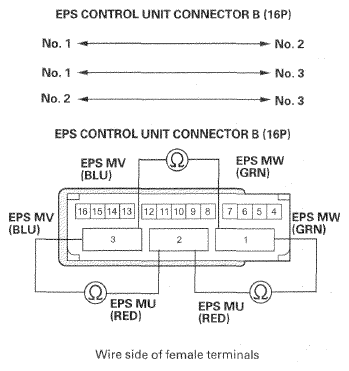

- Check for continuity between the following terminals of EPS control unit connector B (16P).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Check for loose terminals in the EPS control unit connectors, and repair if necessary. If no poor connections are found, replace the EPS control unit (see EPS CONTROL UNIT REMOVAL/INSTALLATION ).
NO -Go to step 9.
- Disconnect the EPS motor 3P connector (see step 19 ).
- On the EPS motor side, check for continuity between following terminals of EPS motor 3P connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair an open in the wire between the EPS control unit and the EPS motor.
NO -Replace the EPS motor (see EPS MOTOR REMOVAL AND INSTALLATION ).
