Driver's Seat Position Sensor

The driver's seat position sensor (M) is under the driver's seat on the left side. When the driver's seat is moved to forward most position, the deployment of the driver's airbag is moderated to decrease its force of impact during a front-end collision.

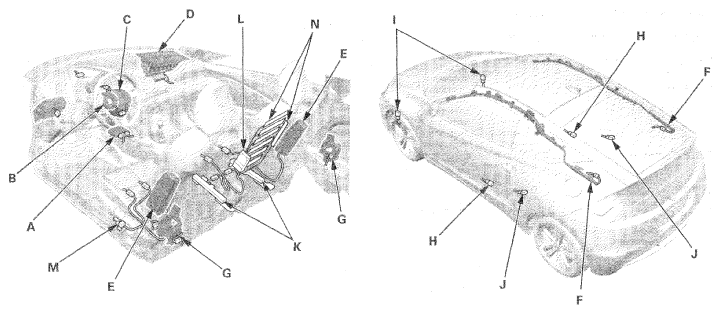

Fig 1: Identifying SRS Components Locations
G06952358Courtesy of AMERICAN HONDA MOTOR CO., INC.
