Side Curtain Airbag Replacement: Installation

NOTE:
  • If replacing the side curtain airbag after deployment, refer to COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT  for a complete list of other parts that must also be replaced.
  • Installation of the side curtain airbag must be done according to the Precautions and Procedures (see PRECAUTIONS AND PROCEDURES  ).
  • If the airbag is frayed, or has any other visible damage, replace it. Do not attempt to repair an airbag.
  • When you install the airbag, make sure it is not twisted, and that it is not caught between the inflator bracket by the bracket bolts.
  • Make sure that the side curtain airbag inflator retainer is installed properly. Otherwise the airbag could incorrectly deploy and cause damage or injuries.
  • If there is any damage to the side curtain airbag, do not try to repair it. Replace any damaged side curtain airbag.
  1. Place the side curtain airbag assembly on the side of the roof, and fit the clips (A), the clip (B), and the clip (C) into the holes in the body. Tighten the new side curtain airbag mounting bolts (D) and the mounting bolts (E) to the specified torque, and the clips are pushed until stopping.

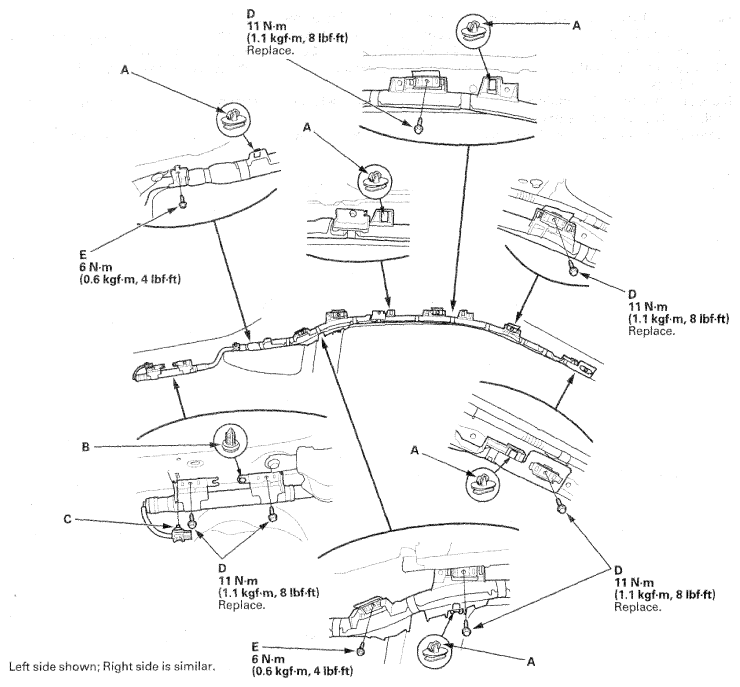

    Fig 1: Side Curtain Airbag Assembly Clips And Mounting Bolts And With Torque Specifications
    G06952533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the side curtain airbag inflator 2P connector (A).

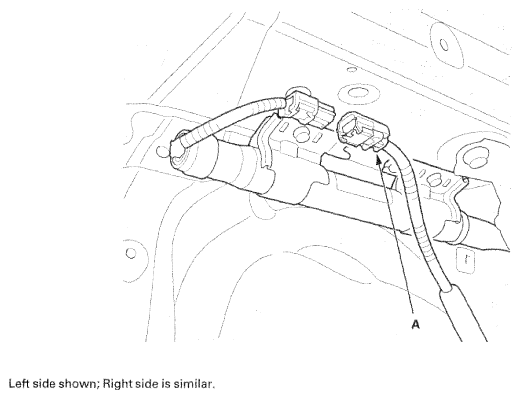

    Fig 2: Identifying Side Curtain Airbag Inflator 2P Connector
    G06952534Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  4. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  5. After installing the side curtain airbag, confirm proper system operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  6. Install all removed parts in reverse order of removal. If any clips are stress-whitened, replace them with new ones.
  7. Confirm proper headliner/pillar trim overlap (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT  ).
