SRS Unit Connectors

When diagnosing or troubleshooting at an SRS unit connector (A), use the terminal test port below the terminal you need to check. Gently insert the pin probes of the tester or jumper wire at the terminal test port from the terminal side.

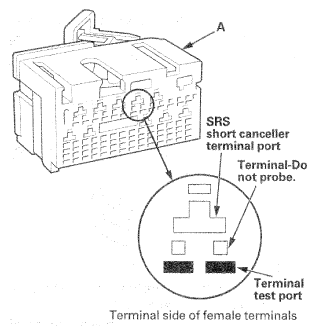

Fig 1: Identifying SRS Unit Connectors Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Do not insert the pin probes of the tester or a jumper wire at the terminal port or the SRS short canceller terminal port.
To prevent damage to the connector terminals, do not insert the test equipment probes, paper clips, or other substitutes as they can damage the terminals. Damaged terminals cause a poor connection and an incorrect measurement.
