Driver's Airbag Replacement: Removal

  1. Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag inflator 4P connector (B).
    Fig 1: Identifying Access Panel, Horn Switch 1P Connector And Driver's Airbag Inflator 4P Connector
    G06952514Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the horn switch 1P connector (C).
  4. Remove the two TORX bolts (A) using a TORX T30 bit.

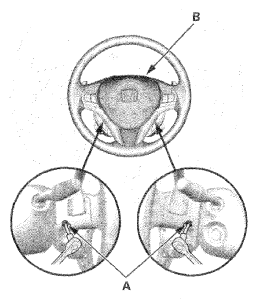

    Fig 2: Identifying Driver's Airbag And TORX Bolts
    G06952515Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the driver's airbag (B).
