Systems and functions affecting auto idle stop

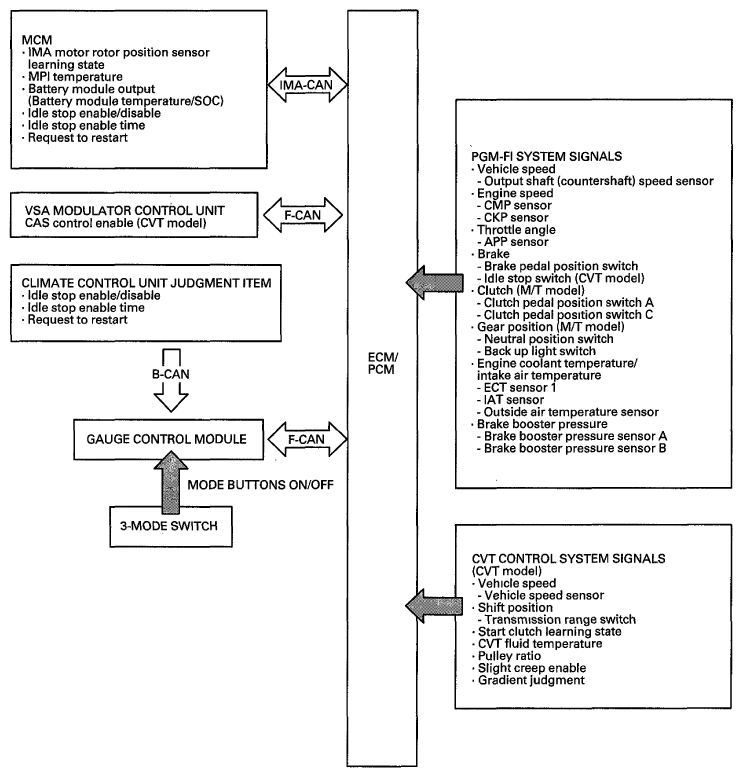

Fig 1: Auto Idle Stop System And Function Communication Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
