Auto Idle Stop Conditions

1-Vehicle is stopping or is stopped (M/T model)

When the vehicle is stopped after driving at or above the specified speed, the engine stops when you fully press the clutch pedal and shift to neutral.

Shifting to any gear with the clutch pedal fully pressed restarts the engine.

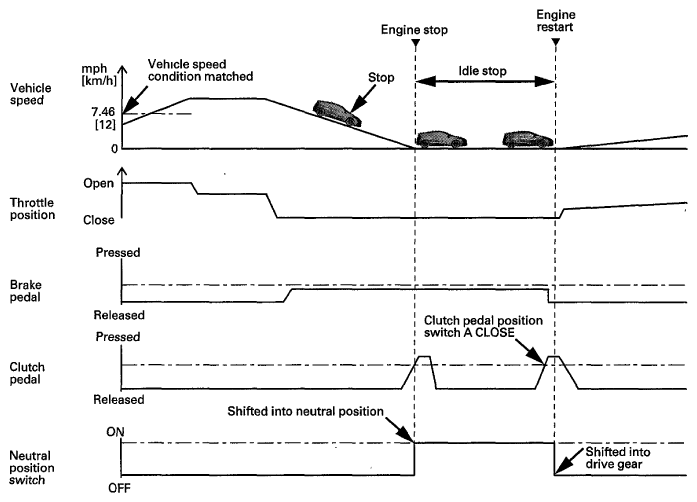

Fig 1: Auto Idle Stop Condition (Vehicle Stopped After Driving Or Above Specified Speed)
G06950240Courtesy of AMERICAN HONDA MOTOR CO., INC.

2-Vehicle is stopping or is stopped (M/T model)

When the vehicle is stopped after driving at or above the specified speed in 2nd gear or higher, the engine stops when you fully press the clutch pedal and shift to neutral.

Shifting to any gear with the clutch pedal fully pressed restarts the engine.

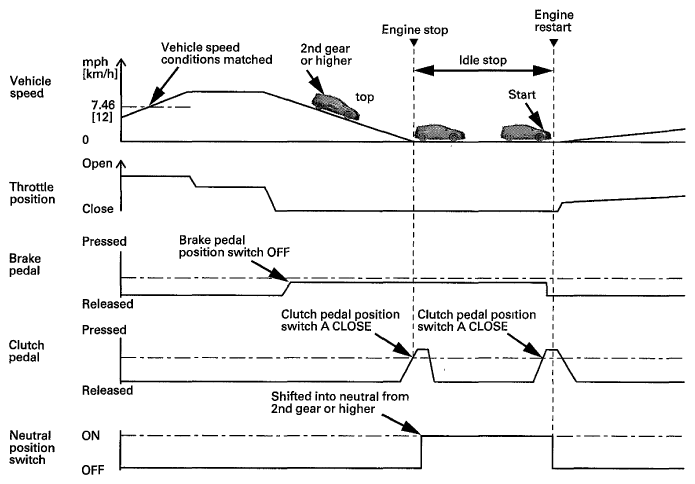

Fig 2: Auto Idle Stop Condition (Vehicle Stopped After Driving Or Above Specified Speed On 2Nd Gear Or Higher)
G06950241Courtesy of AMERICAN HONDA MOTOR CO., INC.

1-Vehicle is decelerating (M/T model)

During deceleration, shifting to neutral from 2nd gear or higher enables auto idle stop. Releasing the brake pedal (1) or shifting into any gear (2) disables auto idle stop and restarts the engine.

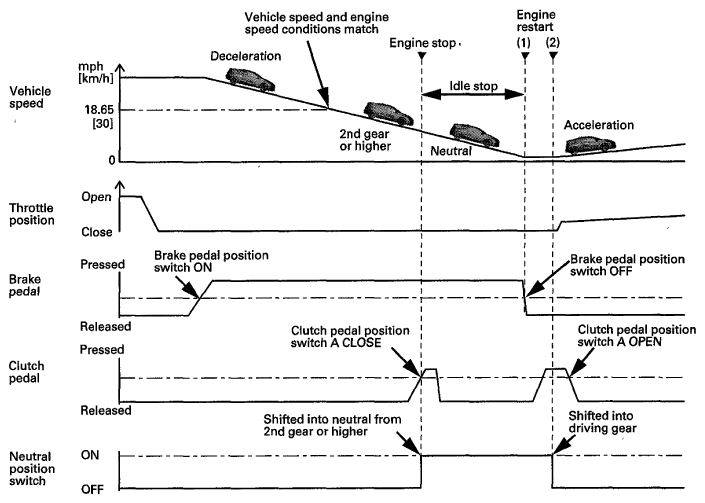

Fig 3: Auto Idle Stop Condition (Deceleration, Shifting To Neutral From 2nd Gear Or Higher Enables Auto Idle Stop)
G06950242Courtesy of AMERICAN HONDA MOTOR CO., INC.

2-Vehicle is decelerating (M/T model)

During deceleration, pressing the clutch pedal fully in 2nd gear or higher enables auto idle stop. Releasing the brake pedal (1) or releasing the clutch pedal (2) disables auto idle stop and restarts the engine.

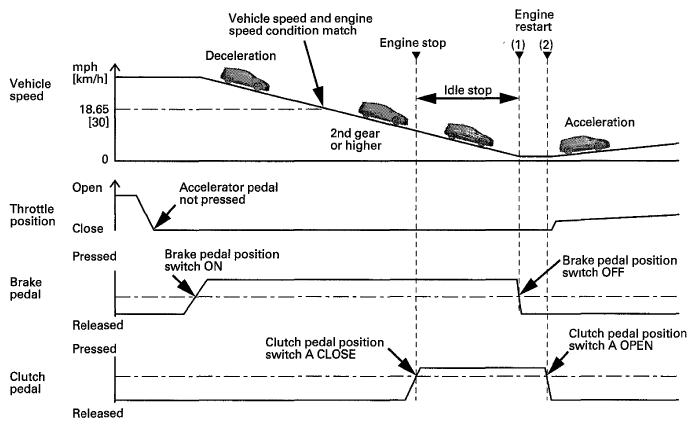

Fig 4: Auto Idle Stop Condition (Deceleration, Pressing Clutch Pedal Fully On 2nd Gear Or Higher Enables Auto Idle Stop)
G06950243Courtesy of AMERICAN HONDA MOTOR CO., INC.

Vehicle is stopping or is stopped (CVT model)

When the vehicle is stopped after driving at or above the specified speed, and the transmission is in D or N, the engine stops when you press the brake pedal.

Releasing the brake pedal disables auto idle stop and restarts the engine.

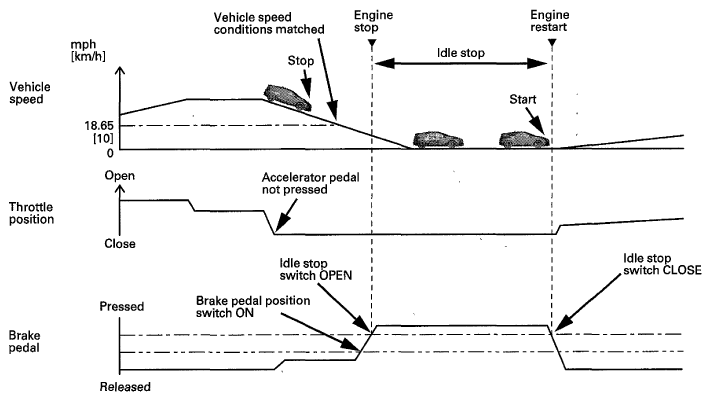

Fig 5: Auto Idle Stop Condition (Vehicle Stopped After Driving Or Above Specified Speed)
G06950244Courtesy of AMERICAN HONDA MOTOR CO., INC.
