Battery module output

The MCM monitors the temperature of the battery module with the battery module temperature sensors. If the output of the battery module is within the idle stop enable area, the MCM allows auto idle stop. If the battery module enters the idle stop disable area, the MCM disables auto idle stop.

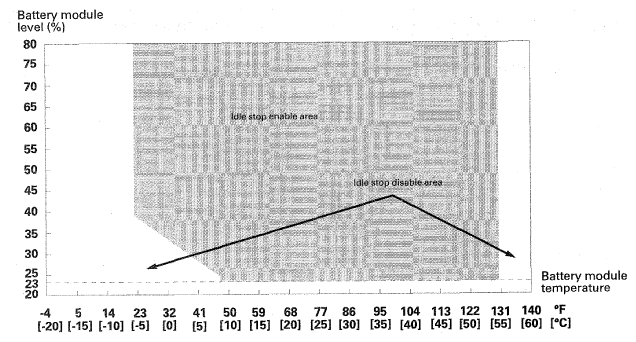

Fig 1: Battery Module Temperature Output Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

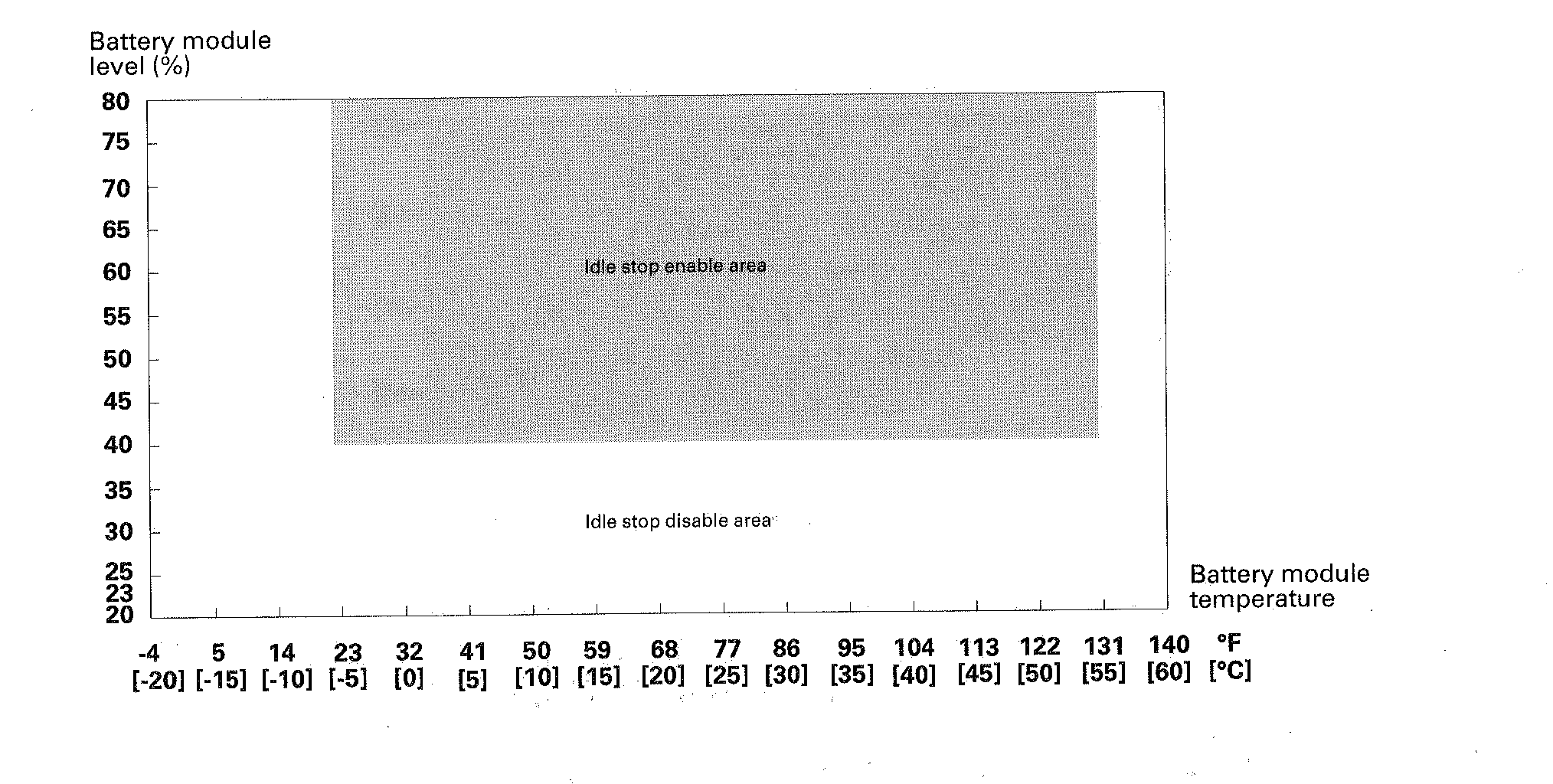

Fig 2: Battery Module Temperature Output Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
