IMA Motor Rotor Removal/Installation

Special Tools Required

Rotor Puller 07YAC-PHM010C

The motor rotor contains very strong magnets and should be handled with special care. People with pacemakers or other sensitive medical devices should not handle the IMA motor rotor.

WARNING: If the rotor is installed by hand, it may suddenly be pulled toward the stator with great force, causing serious hand or finger injury. Always use the special tool (rotor puller) to remove or install the rotor assembly.

Keep the motor rotor away from magnetically sensitive devices.
Do not blow air near the rotor, as metal particles may get on the magnets.
Store the rotor in the designated storage box, and keep it away from sensitive devices during storage.

Remove the transmission.
- M/T model (see NEUTRAL POSITION SWITCH REPLACEMENT )
- CVT model (see TRANSMISSION REMOVAL )
M/T model: Remove the clutch (see CLUTCH REPLACEMENT ).
M/T model: Remove the flywheel (see CLUTCH REPLACEMENT ).
CVT model: Remove the drive plate (see DRIVE PLATE REMOVAL/INSTALLATION ).

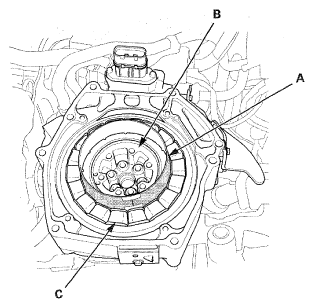

Install a plastic film (A) between the IMA motor rotor (B) and the motor stator (C).

Fig 1: Identifying Plastic Film, IMA Motor Rotor And Motor Stator Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

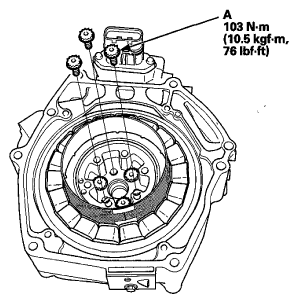

Remove three of the six bolts (A) as shown.

Fig 2: IMA Motor Rotor And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the three rotor puller guide pins, then remove the remaining three bolts (A).

Fig 3: Rotor Puller Guide Pins And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the rotor puller with its supplied bolts.
NOTE: When installing the rotor puller, position the puller to fit over the guide pins (A).

Fig 4: Identifying Rotor Puller With Guide Pins Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the handle of rotor puller, and remove the IMA motor rotor (A).

Fig 5: Identifying IMA Motor Rotor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
To prevent damage to the rotor magnets while working on the stator, place the rotor, with puller attached, into the puller case.

Fig 6: Identifying Rotor With Puller Attached Into Puller Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
NOTE:
- When installing the rotor, make sure the special tool is attached with its handle turned out several threads.
- Turn the handle of the special tool slowly when inserting the rotor into the stator. The rotor is drawn into the stator by magnetic force.

  Fig 7: Inserting Rotor Into Stator Using Special Tool
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the plastic film.
CVT model: Install the drive plate (see DRIVE PLATE REMOVAL/INSTALLATION ).
M/T model: Install the flywheel (see CLUTCH REPLACEMENT ).
M/T model: Install the clutch (see CLUTCH REPLACEMENT ).
Install the transmission.
- M/T model (see TRANSMISSION INSTALLATION )
- CVT model (see DRIVE PLATE REMOVAL/INSTALLATION )
Do the IMA motor rotor position calibration procedure (see IMA MOTOR ROTOR POSITION CALIBRATION ).
