IMA Motor Power Cable Removal/Installation

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service (see SERVICE PRECAUTIONS  ).

1. Make sure the ignition switch is in LOCK (0).
2. Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
3. Remove the IPU cover (see IPU COVER REMOVAL/INSTALLATION  ).
4. Remove the bolts (A) and the PCU lid (B).
   Fig 1: PCU Lid And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

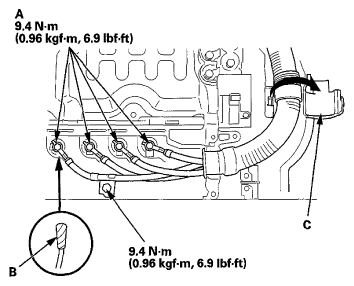

5. Disconnect the four IMA motor power cables (A) from the phase motor current sensor, then wrap the end of the 12 volt power cable (B) with insulating tape.
   NOTE: Check the position of the U phase, the V phase, and the W phase cables before disconnecting them.
   Fig 2: IMA Motor Power Cables Of Phase Motor Current Sensor With Insulating Tape And Clamp With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Open the clamp (C).
7. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
8. Turn the ignition switch to LOCK (0).
9. Turn the battery module switch OFF.

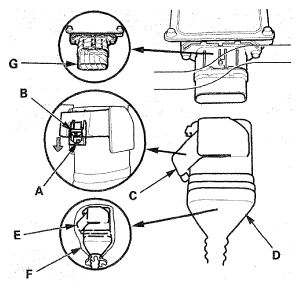

10. Slide the protector (A) in the direction of the arrow. Push the tab (B), then raise the lever (C). Remove the IMA motor power cable (D) from the motor stator.
    NOTE:

    • If the outside of the IMA motor power cable connector is dirty, clean it before you disconnect it.
    • Cover the disconnected connector (E) with a plastic bag (F), and wrap the IMA motor power cable terminals with tape (G).
    • If the IMA motor power cable terminals are wet, dry them with a clean shop towel. Do not use compressed air.
      Fig 3: Identifying Protector, Lever, IMA Motor Power Cable And Connector With Plastic Bag

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

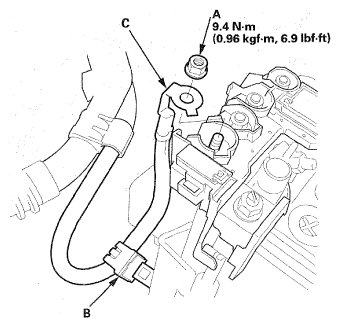

11. Remove the nut (A), the clamp (B), and the 12 V power cable (C) from the battery terminal fuse box.
    Fig 4: Clamp, Power Cable With Nut With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).

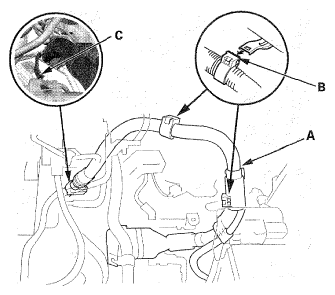

13. Remove the IMA motor power cable (A) from the brackets (B).
    Fig 5: Identifying IMA Motor Power Cable Of Brackets, Clip And Clamp

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Remove the clamp (C).
15. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
16. Remove the front subframe (see SUBFRAME REPLACEMENT ).

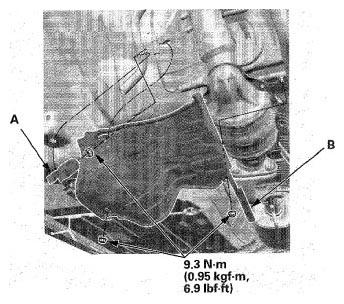

17. Remove the clip (A).
    Fig 6: Clip And Heat Shield With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Remove the heat shield (B).

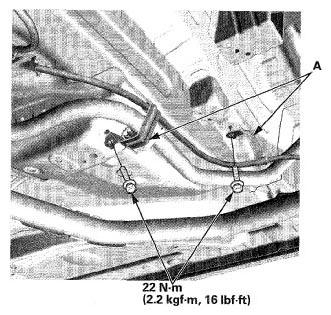

19. Remove the parking brake cable brackets (A).
    Fig 7: Parking Brake Cable Brackets And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Wrap the IMA power cable with protective tape to avoid damaging the cable tube.

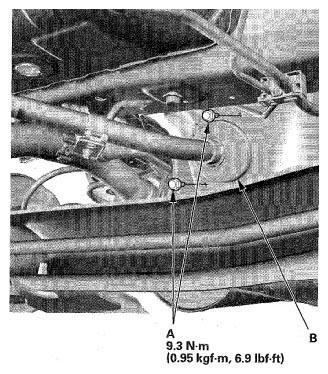

21. Remove the bolts (A) and the cover (B).
    Fig 8: Cover And Bolts With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

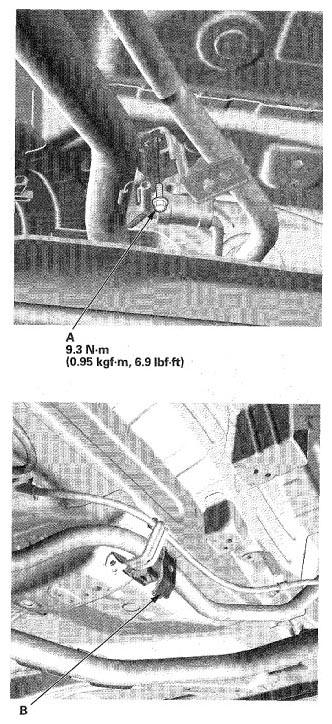

22. Remove the bolt (A) and the clamp (B).
    NOTE: The clamp cannot be reused; replace it with a new one.
    Fig 9: Clamp And Bolt With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

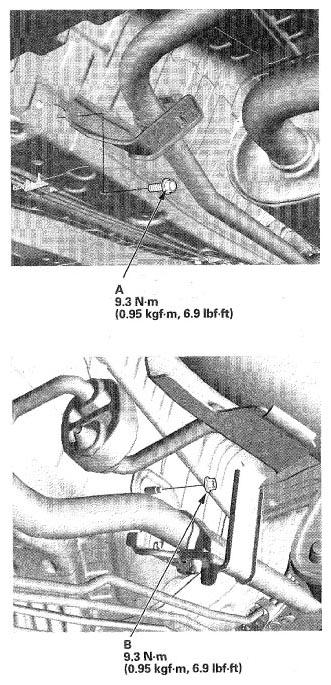

23. Remove the bolt (A) and the nut (B).
    Fig 10: Clamp With Bolt And Nut With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Pull out the IMA motor power cable from the body.
25. Install the parts in the reverse order of removal.
    NOTE: Make sure the IMA motor power cables are correctly positioned before you reconnect them.
26. Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
