Circuit Diagram

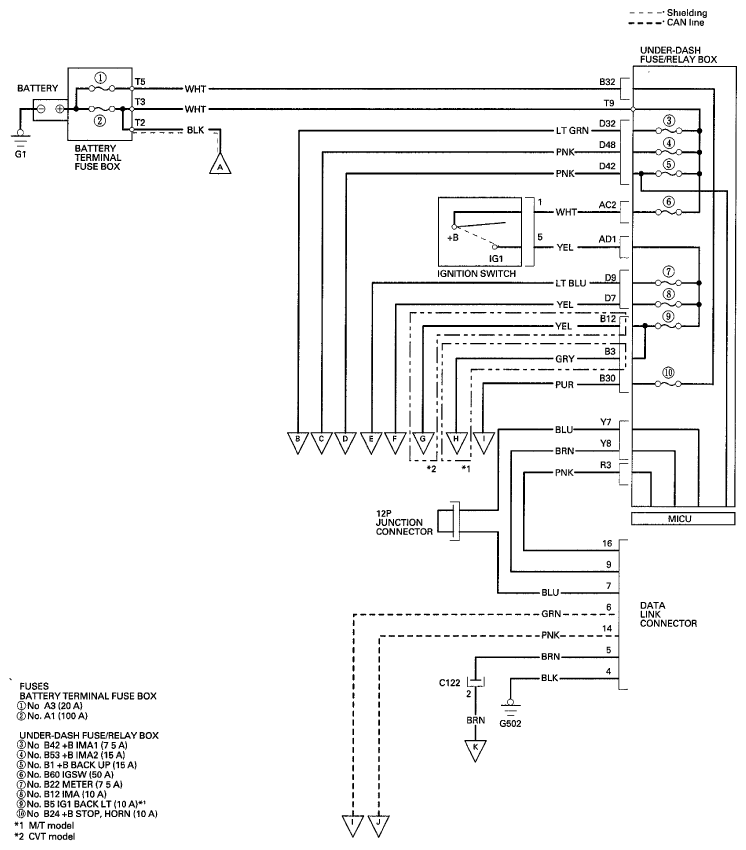

Fig 1: IMA Circuit Diagram (1 Of 8)

G06950265

Courtesy of AMERICAN HONDA MOTOR CO., INC.

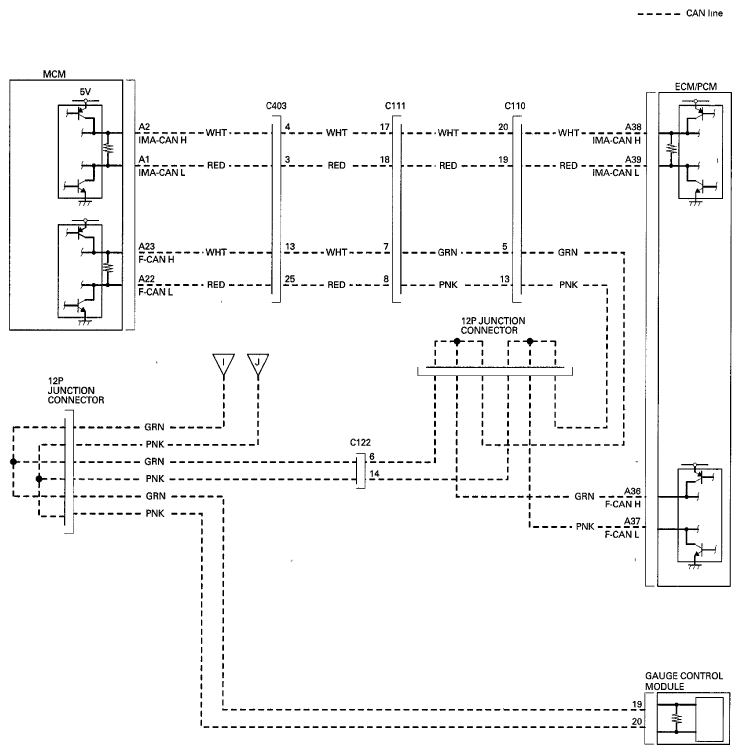

Fig 2: IMA Circuit Diagram (2 Of 8)

G06950266

Courtesy of AMERICAN HONDA MOTOR CO., INC.

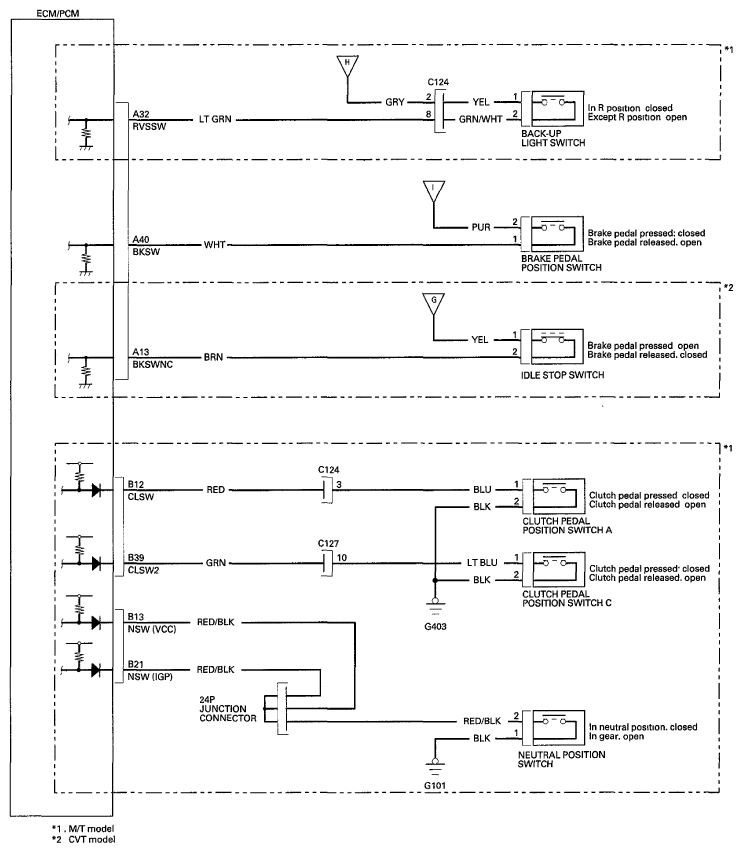

Fig 3: IMA Circuit Diagram (3 Of 8)

G06950267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

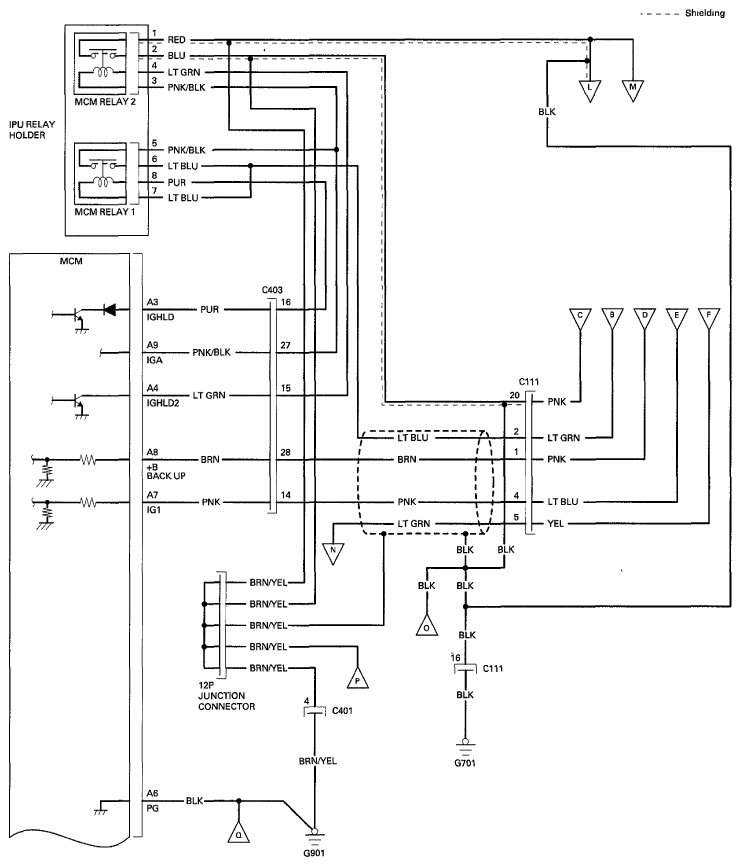

Fig 4: IMA Circuit Diagram (4 Of 8)

G06950268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

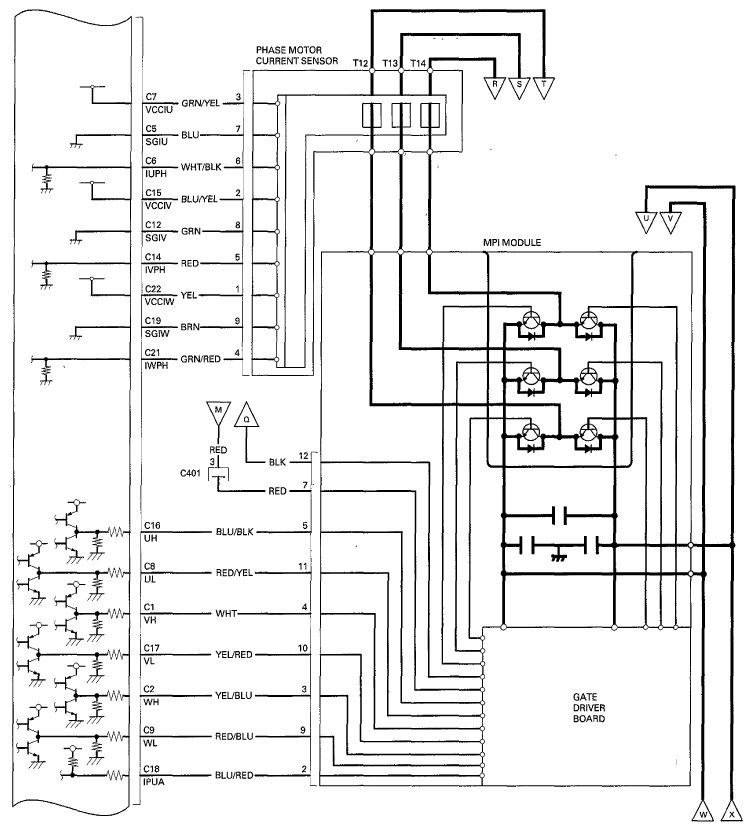

Fig 5: IMA Circuit Diagram (5 Of 8)

G06950269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

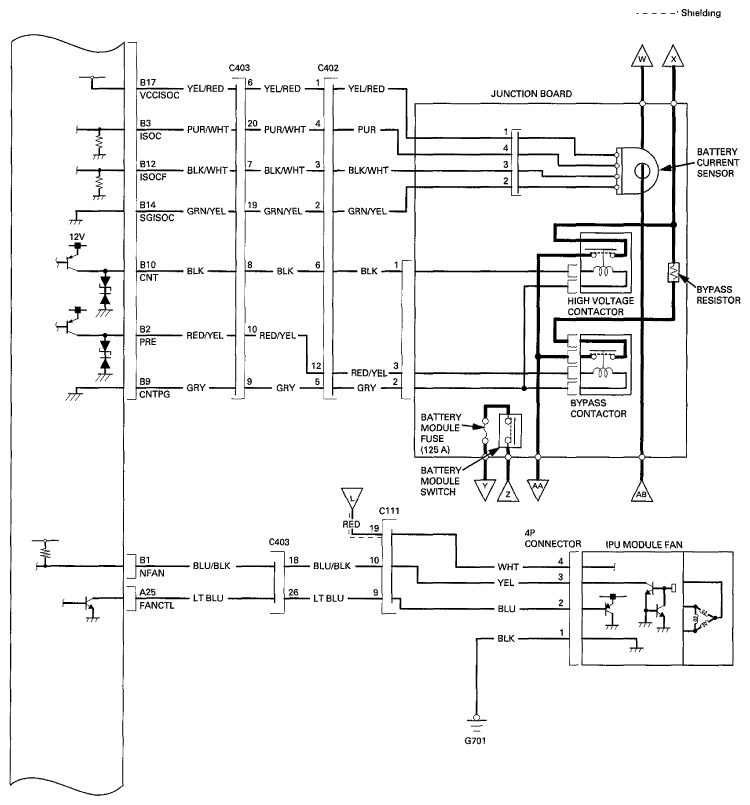

Fig 6: IMA Circuit Diagram (6 Of 8)

G06950270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

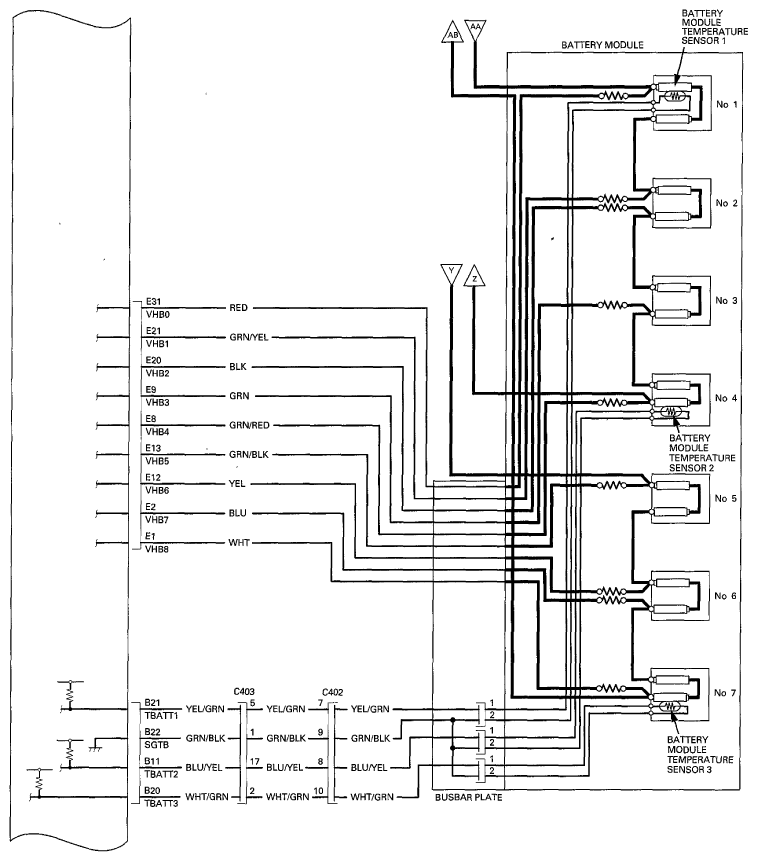

Fig 7: IMA Circuit Diagram (7 Of 8)

G06950271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

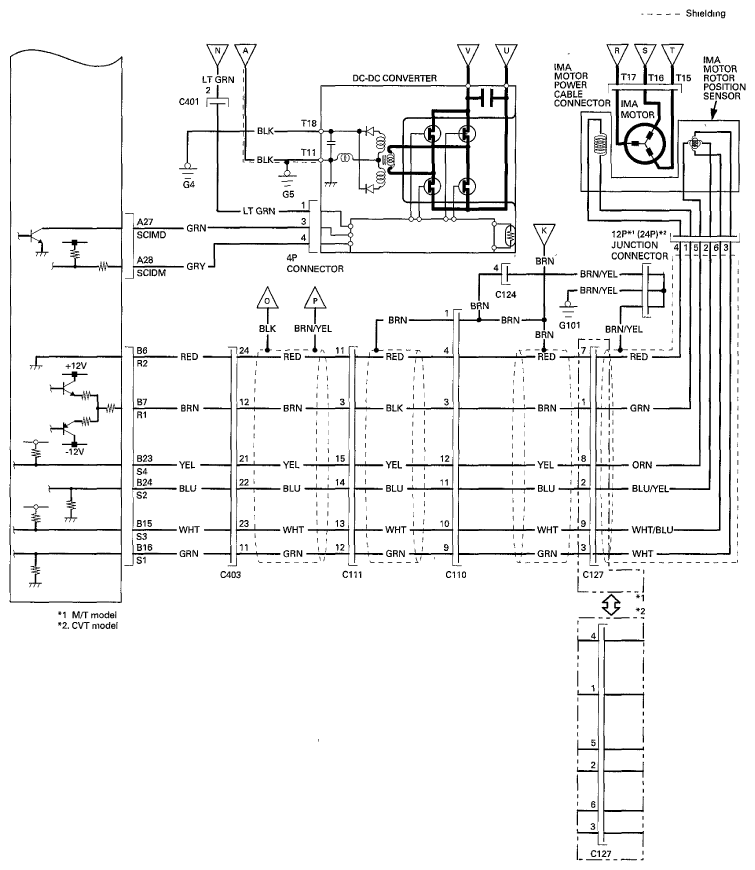

Fig 8: IMA Circuit Diagram (8 Of 8)

G06950272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

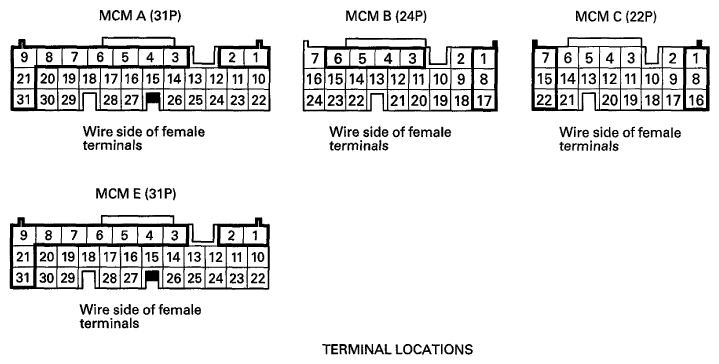

Fig 9: MCM Terminals Layout

G06950273

Courtesy of AMERICAN HONDA MOTOR CO., INC.
