Clutch Pedal Position Switch

WARNING: This page is about a different variant/trim than selected.

The clutch pedal has clutch pedal position switch A, clutch pedal position switch B, and clutch pedal position switch C installed.

Clutch Pedal Position Switch A (clutch interlock operation): Turned ON (CLOSE) when the pedal position is within the area where clutch is disengaged.
Clutch Pedal Position Switch B (cruise control): Turned OFF (OPEN) when the clutch pedal is pushed down.
Clutch Pedal Position Switch C (shift indicator operation): Turned ON (CLOSE) when the clutch pedal is about to be halfway through its stroke.

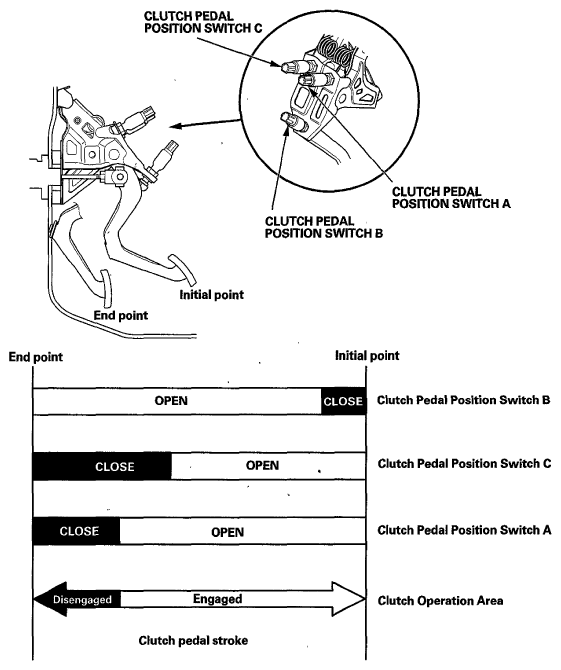

Fig 1: Clutch Pedal Position Switches Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: The illustration shows the HDS screen indication.
