Exploded View - Clutch Housing

WARNING: This page is about a different variant/trim than selected.

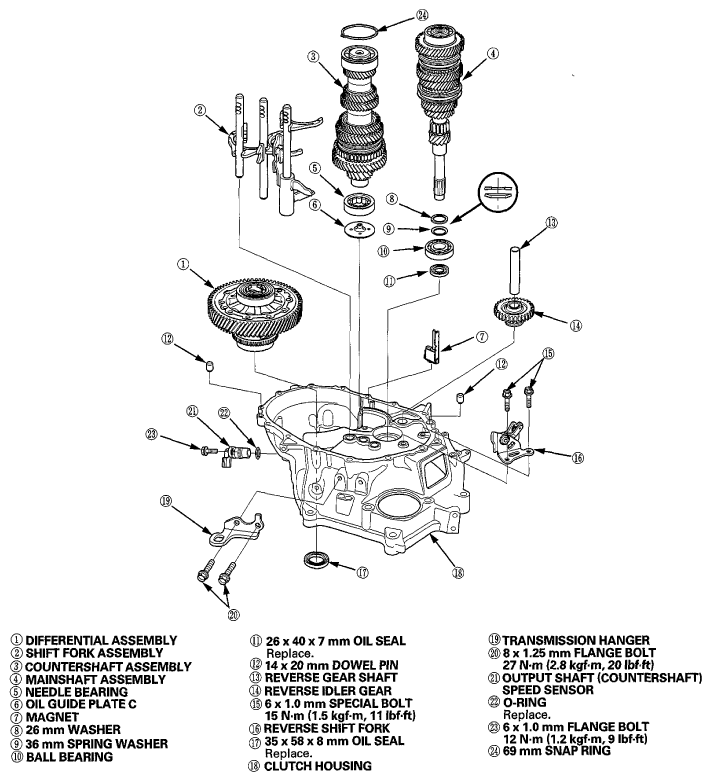

Fig 1: Exploded View Of Clutch Housing With Torque Specifications
G06950712Courtesy of AMERICAN HONDA MOTOR CO., INC.
