Synchro Sleeve and Hub Inspection and Reassembly
WARNING: This page is about a different variant/trim than selected.
- Inspect gear teeth on all synchro hubs and synchro sleeves for wear (rounded off corners).

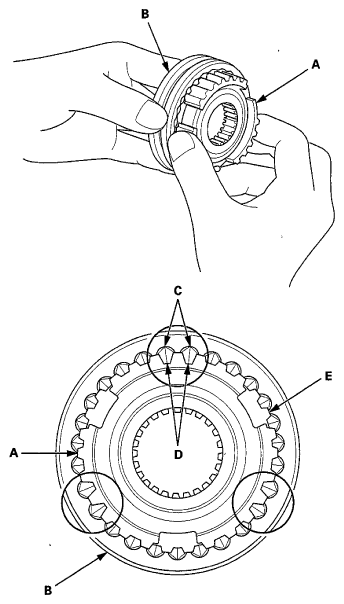

- Install each synchro hub (A) in its mating synchro sleeve (B), and check for free movement. Make sure to match the three sets of longer teeth (C) (120 degrees apart) on the synchro sleeve with the three sets of deeper grooves (D) in the synchro hub.NOTE:
- Do not install the synchro sleeve with its longer teeth in the 1st/2nd and 5th/6th synchro hub slots (E) because it will damage the spring ring.
- If replacement is required, always replace the synchro sleeve and the synchro hub as a set.
