Shift Lever Housing Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE: Take care not to scratch the center console, dashboard, and related parts.
  1. Sports type: Insert the appropriate trim tool into the slit (A) of the shift lever trim (B) to detach the clips (C).
    Fig 1: Inserting Trim Tool Into Slit Of Shift Lever Trim To Detach Clips
    G06950833Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Sports type: Gently pry up along the edge of the shift lever trim to detach the hooks (D) and the clips (E), then reverse the shift lever boot (F).
  3. Sports type: Release the hooks (G) from the shift lever boot ring (H), then lower the shift lever boot.
  4. Sports type: Loosen the shift lever boot ring (A), then remove the shift lever knob (B) and the shift lever boot ring from the shift lever (C).
    Fig 2: Identifying Shift Lever Boot Ring, Shift Lever Knob And Shift Lever Boot Ring From Shift Lever
    G06950834Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Sports type: Remove the shift lever trim (D).
  6. Normal type: Insert the appropriate trim tool into the slit (A) of the shift-lever trim (B) to detach the clips (C).
    Fig 3: Identifying Slit Of Shift-Lever Trim, Hooks, Clips And Shift Lever Boot With Knob
    G06950835Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Normal type: Gently pry up along the edge of the shift lever trim to detach the hooks (D) and the clips (E).
  8. Normal type: Lower the shift lever boot (F) to release the hooks (G) from the boot, then remove the shift lever knob (H).
  9. Normal type: Remove the shift lever trim.
  10. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  11. Remove the lock pin (A) and the washer (B).

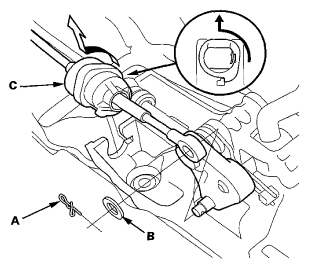

    Fig 4: Rotating Shift Cable Counterclockwise
    G06950836Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Rotate the shift cable (C) counterclockwise, then disconnect the shift cable from the shift lever housing.
  13. Remove the shift cable clip (A).

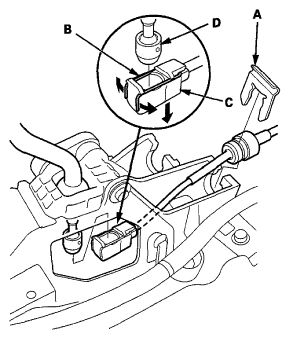

    Fig 5: Disconnecting Shift Cable From Shift Lever
    G06950837Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Expand the clamp (B), then disconnect the shift cable (C) from the shift lever (D).
  15. Remove the shift lever housing (A).

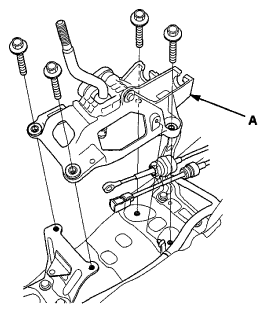

    Fig 6: Identifying Shift Lever Housing
    G06950838Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Install the shift lever housing (A).

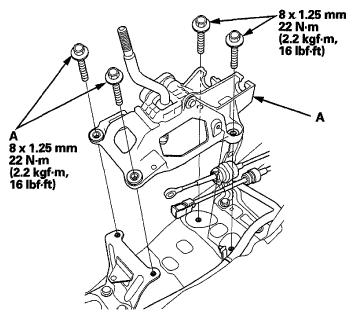

    Fig 7: Shift Lever Housing With Torque Specifications
    G06950839Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Connect the shift cable (A) to the shift lever (B).

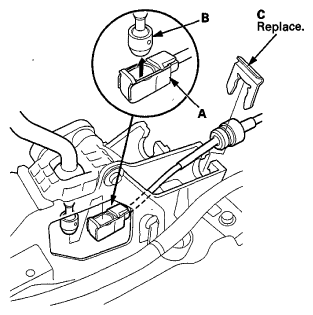

    Fig 8: Connecting Shift Cable To Shift Lever
    G06950840Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Install a new shift cable clip (C).
  19. Rotate the shift cable (A) clockwise, then connect the shift cable to the shift lever housing.

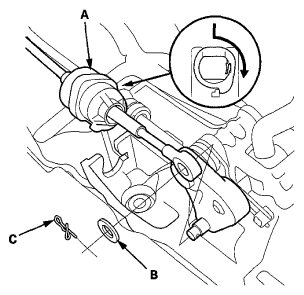

    Fig 9: Rotating Shift Cable Counterclockwise
    G06950841Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Install the washer (B) and the lock pin (C).
  21. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  22. Sports type: Install the shift lever trim (A) over the shift lever (B).
    Fig 10: Shift Lever Trim Onto Shift Lever, Shift Lever Boot Ring And Shift Lever Knob With Torque Specifications
    G06950842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  23. Sports type: Install and turn the shift lever boot ring (C) until it reaches the bottom of the threads on the shift lever.
  24. Sports type: Turn the shift lever knob (D) until the shift lever knob contacts the shift lever boot ring.
  25. Sports type: Tighten the shift lever boot ring and the shift lever knob together with the shift pattern properly aligned.
  26. Sports type: Connect the shift lever boot (A) to the shift lever boot ring (B)
    Fig 11: Installing Shift Lever Trim To Center Console
    G06950843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  27. Sports type: Install the shift lever trim (C) to the center console.
  28. Normal type: Install the shift lever trim (A) to the center console.
    Fig 12: Identifying Shift Lever Knob On Shift Lever, Shift Lever Boot And Shift Lever Trim
    G06950844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Normal type: Install the shift lever knob (B) on the shift lever (C), then connect the shift lever boot (D) to the shift lever knob.
    NOTE: Tighten the shift lever knob until the shift pattern is properly aligned.
  30. Check the shift lever operation.
