Gearshift Mechanism Replacement

WARNING: This page is about a different variant/trim than selected.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

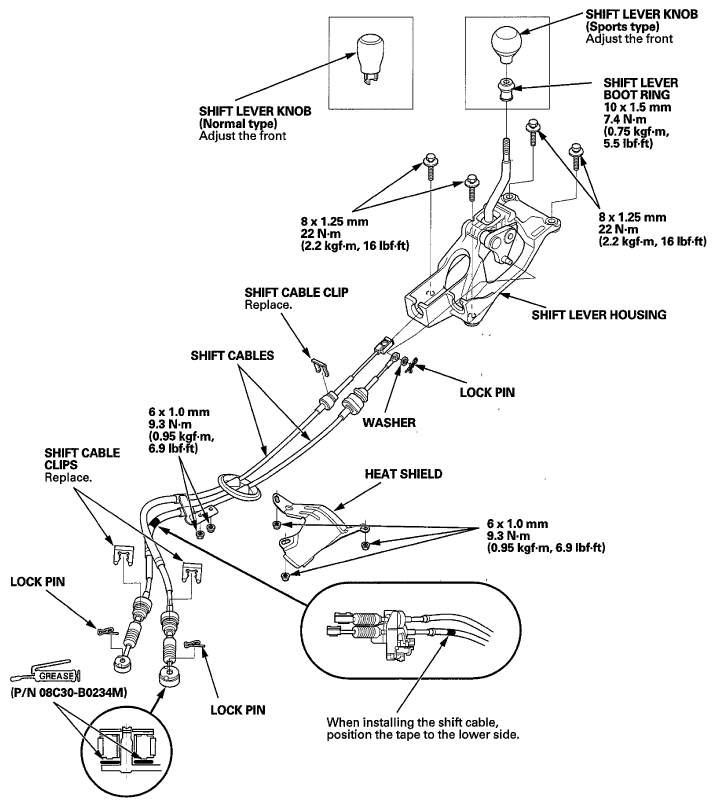

Fig 1: Gearshift Mechanism Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
