Countershaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Bearing Driver Attachment, 52 x 55 mm 07746-0010400
• Driver Handle, 15 x 135L 07749-0010000
• Slide Hammer 3/8"-16 UNF, commercially available

1. Remove the needle bearing (A) from the clutch housing (B) using the 25-40 mm adjustable bearing puller (D) and a commercially available 3/8"-16 UNF slide hammer (E), then remove oil guide plate C.
   Fig 1: Removing Needle Bearing From Clutch Housing Using Bearing Puller And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Position the oil guide plate C and new needle bearing (A) in the bore of the clutch housing (B).
   Fig 2: Positioning Oil Guide Plate And Needle Bearing On Bore Of Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

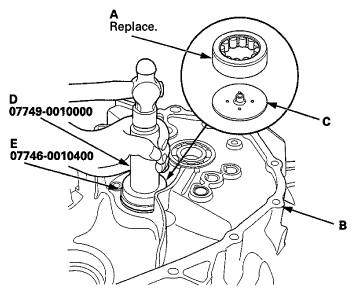

3. Press in the needle bearing using the 15 x 135L driver handle (D) and the 52 x 55 mm bearing driver attachment (E).
