Change Lever Assembly Disassembly/Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

Prior to reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as shown. Do not clean the rubber parts with solvent.
If too much time has passed after applying liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

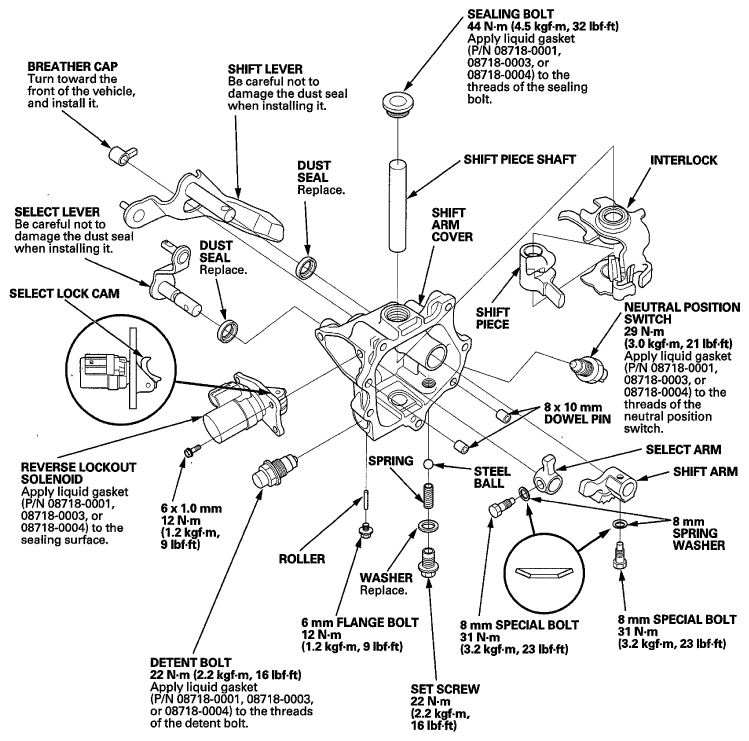

Fig 1: Disassembled View Of Change Lever Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
