Oil Seal Replacement

Special Tools Required

• Oil Seal Driver Attachment, 64 x 72 mm 07JAD-PN00100
• Driver Handle, 15 x 135L 07749-0010000

1. Remove the oil seal (A) from the transmission housing (B).
   NOTE: Be careful not to damage the transmission housing while removing the oil seals.
   Fig 1: Removing Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal (A) from the clutch housing (B).
   NOTE: Be careful not to damage the clutch housing while removing the oil seal.
   Fig 2: Removing Oil Seal From Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

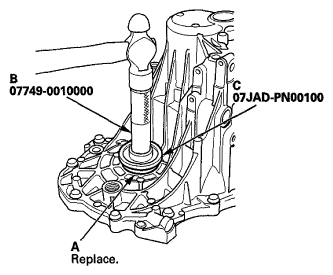

3. Install a new oil seal (A) flush with the transmission housing using the 15 x 135L driver handle (B) and the 64 x 72 mm oil seal driver attachment (C).
   Fig 3: Installing Oil Seal With Transmission Housing Using Driver Handle And Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install a new oil seal (A) flush with the clutch housing using the 15 x 135L driver handle (B) and the 64 x 72 mm oil seal driver attachment (C).
   Fig 4: Installing Oil Seal With Clutch Housing Using Driver Handle And Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
